Troubleshooting
Manual Override
B
A
A
A
Moving parts can pinch, crush or cut. Keep clear and use caution.
NOTE: For ease of manual override it is recommended to unplug the power harness to the motor prior to
performing the manual override procedure.
NOTE: Use of a 12-18 volt cordless screw gun or pneumatic screw gun is acceptable to manually override
the jacks. Do not use an impact screw gun to perform any of the override procedures, as this may
damage the motor. If manual override is necessary there are two options for each style of jack.
Front Jack-Jack Motor Override:
Tools needed: 3/8” drive ratchet and extension (no socket)
1. Find the port on the top of the jack motor (Fig. 7A).
2. Remove the rubber plug (Fig. 8A).
3. Insert the 3/8” drive into the port.
4. Turn the override until the jack extends or retracts to desired position.
Front Jack-Jack Manual Override Nut:
Tools needed: 3/4" socket wrench
1. Locate the manual override nut (Fig 7B).
2. Place 3/4" socket wrench over the manual override nut (Fig. 9A) and turn the override nut until the jack
extends or retracts to desired position.

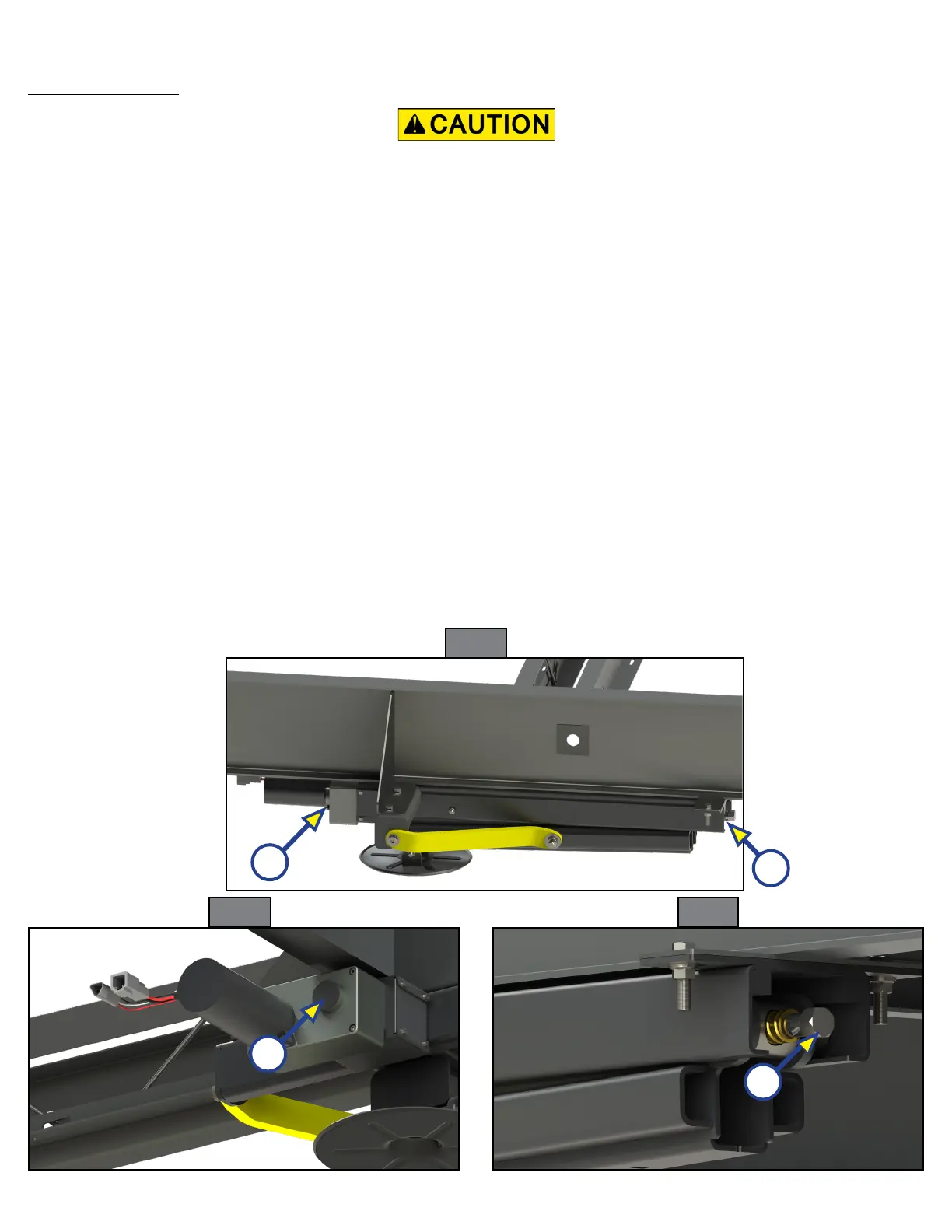

Fig. 7
Fig. 8
Fig. 9
To Next Page
