Lippert Components Ground Control 2.0 - Rear Jack - Top of Jack Motor Override; Rear Jack - Bottom of Jack Motor Override

Rev:11.08.19 Page 47 CCD-0001573-08
Rear Jack - Top of Jack Motor Override:
Tools needed: 3/8” drive ratchet and extension (no socket)
1. Find the port on the top of the jack motor (Fig. 10A).
2. Remove the rubber plug (Fig.11).
3. Insert the 3/8” drive ratchet into the port (Fig. 12).
4. Turn the override until the jack extends or retracts to desired position.
Rear Jack - Bottom of Jack Motor Override:
Tools needed: 3/8” drive ratchet and extension, 5/16” socket
1. Find the port on the bottom of the jack motor (Fig. 10B).
2. Remove the rubber plug (Fig. 13).
3. Insert the 5/16” socket into the port (Fig. 14).
4. Turn the override until the jack extends or retracts to desired position.
B
A
A
A

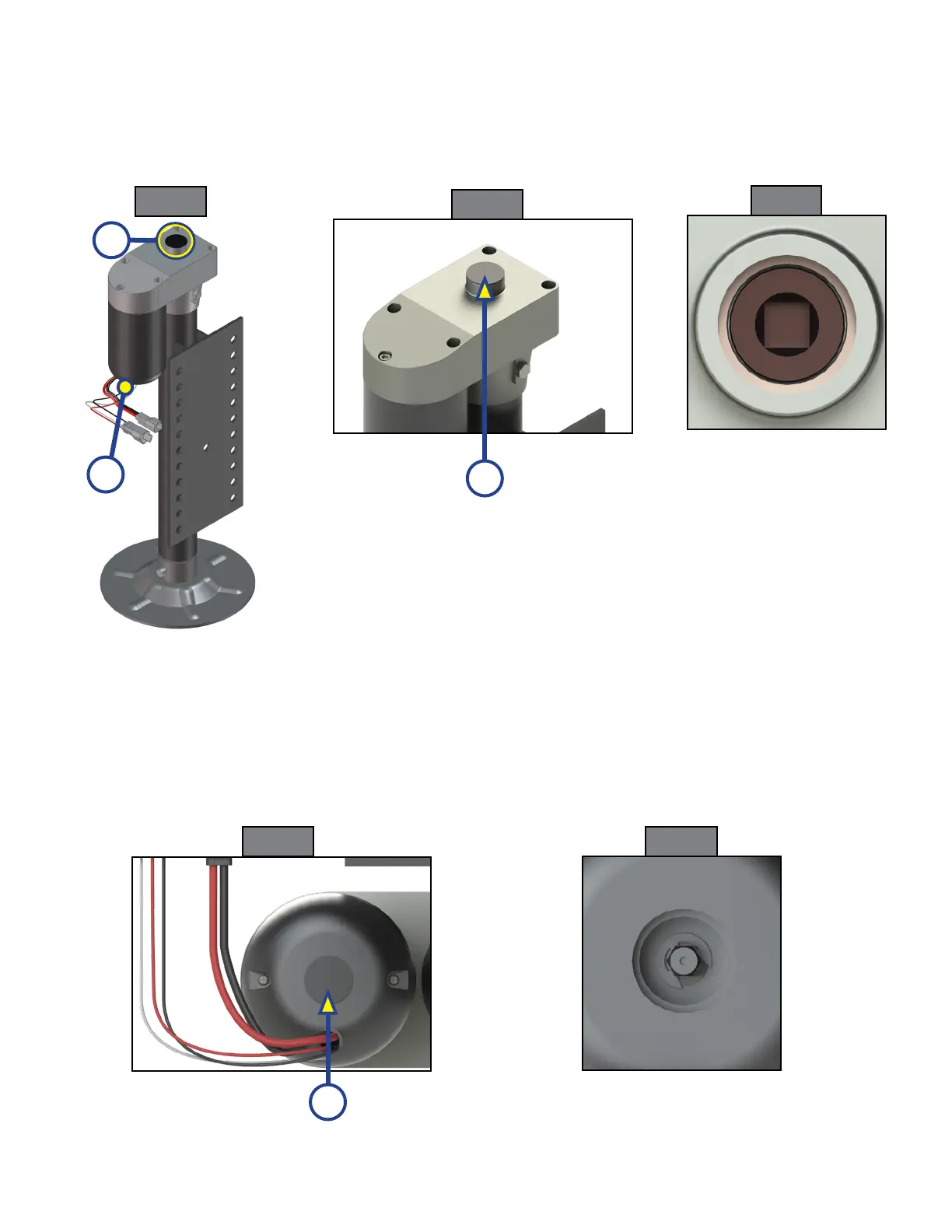

Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
