Rev:11.08.19 Page 76 CCD-0001573-08
Power Tongue Jack Manual Override
1. Chock the tires of the trailer.
2. Make sure the footpad of the Power Tongue Jack is pinned securely in place with the clevis pin and
hairpin cotter pin (Fig. 46A).
3. Open the rubber plug (Fig. 47A) on top of the Power Tongue Jack’s gearbox to expose the override
nut. Insert the manual crank handle (Fig. 48).
4. Turn the override until the jack extends or retracts to desired position.
5. Remove the crank handle.
6. Replace the rubber plug.
7. Make sure the leg (Fig. 46B) of the Power Tongue Jack is fully retracted prior to moving the tow
vehicle.
A
B
A
Preventive Maintenance
1. For optimum performance, the system requires a fully charged battery to maintain required currents
and voltages. Keep battery at full capacity whenever possible.
2. Check battery terminals and other battery connections, the controller and the jacks for corrosion and
loose or damaged connections.
3. Remove dirt, road debris and grease from jacks as needed. Then lightly lubricate the jack screw and
wipe off any excess lubrication, leaving only a thin coating for protection.

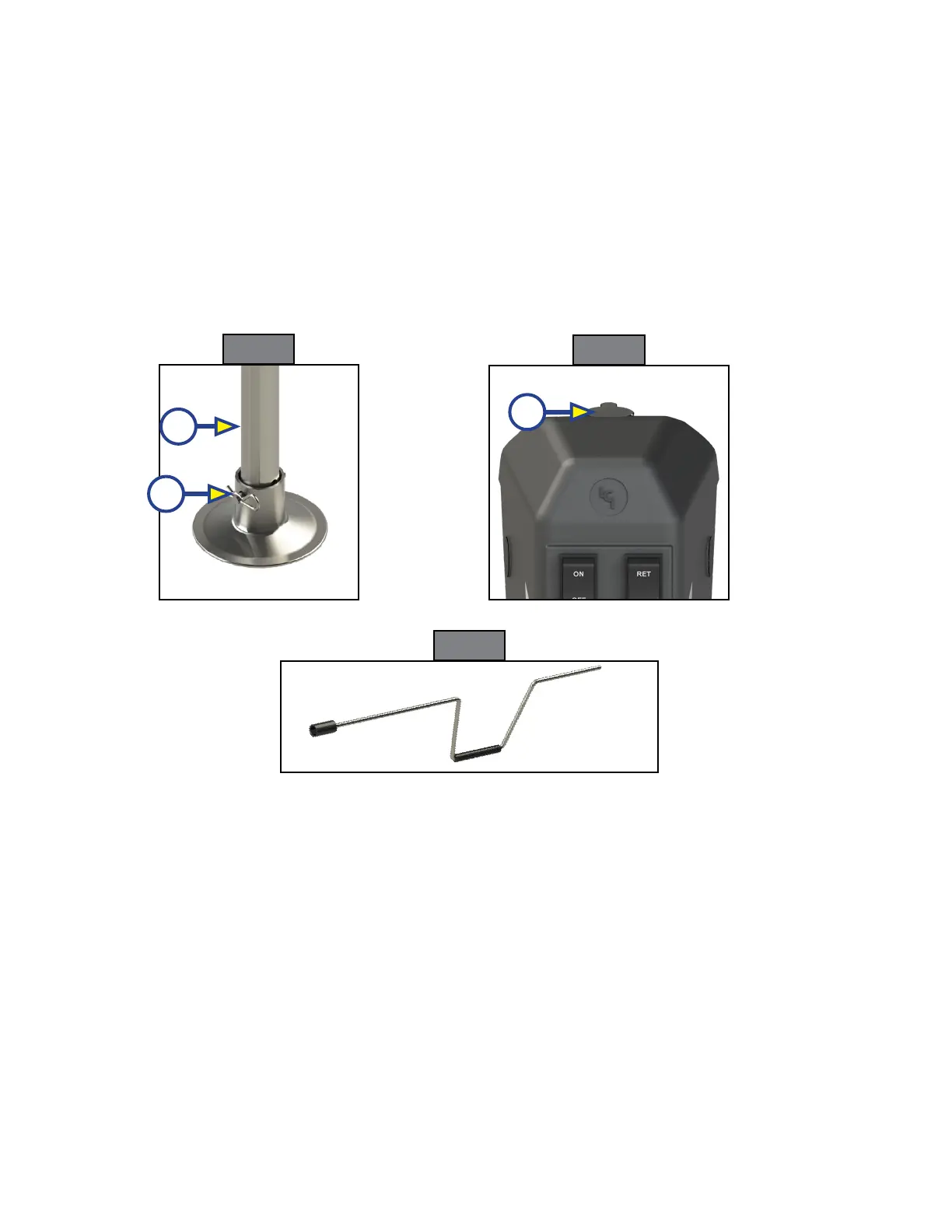

Fig. 46
Fig. 47
Fig. 48
