Lippert Components Ground Control 2.0 - SWING DOWN STABILIZER; Operation; Extend Swing Down Stabilizer; Retract Swing Down Stabilizer

Rev:11.08.19 Page 163 CCD-0001573-08
Retract Swing Down Stabilizer
1. Make sure the trailer is properly supported or raised for clearance while performing the retract operation.
2. Press down on the release lever (Fig. 1C) for a quick release, or insert one end of the stabilizer rod
(Fig. 2C) in the hole just above the release lever. Press the rod down (Fig. 2D) for a slower release.
3. Slide the drop leg (Fig. 1D or Fig. 2B) up into the main body of the leg.
4. Pull stabilizer towards the ground to disengage the tabs from the operational locking slots (Fig. 1B).
5. Swing the stabilizer leg upward toward the trailer frame rail until the tabs catch inside the stowed
locking slots (Fig. 1A).
6. Store the stabilizer rod in a secure location.

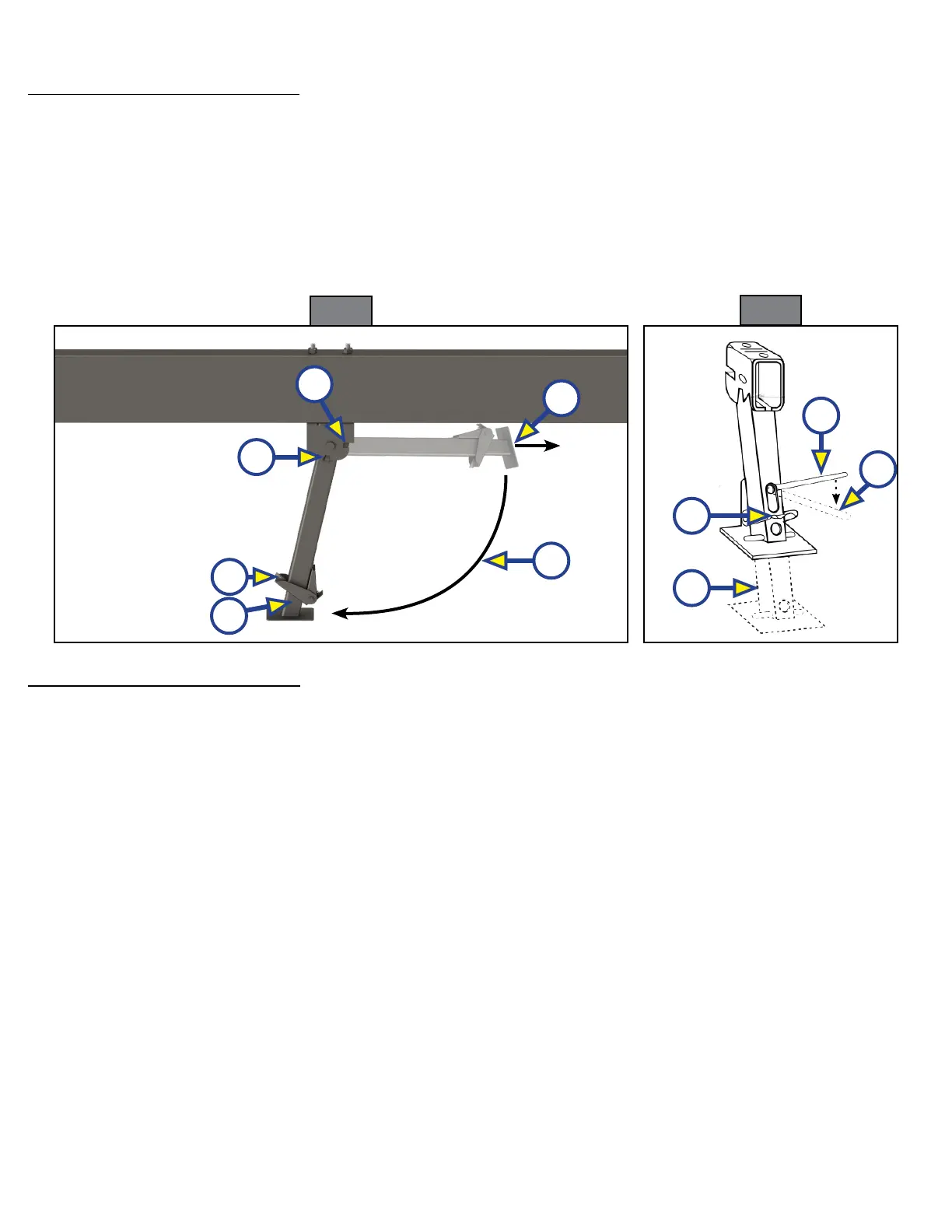

Fig. 1
A
B
C
C
F
A
B
D
E
Operation
Extend Swing Down Stabilizer
1. Make sure the trailer is properly supported or raised for clearance while performing the extend operation.
2. Pull the leg of the stabilizer out (Fig. 1F) from the stowed locking slots (Fig. 1A).
3. Swing the leg downward (Fig. 1E) until the tabs engage in the operational locking slots (Fig. 1B).
4. Press on the release lever (Fig. 1C or Fig. 2A). This will allow the drop leg of the telescoping stabilizer to
slide down to the ground (Fig. 1D or Fig. 2B).
5. Insert the stabilizer rod (Fig. 2C) end through the hole in the rear of the stabilizer leg.
6. Crank the stabilizer rod downward for the desired leveling position.
7. Store the stabilizer rod in a secure location.
D
Fig. 2
