Manual Override
The LCI Level-Up® LCD 5th Wheel Leveling system can be manually operated with an electric drill. In the
event of electrical or system failure, this manual override method of extending and retracting the jacks can
be used.
NOTE: Unhook the hydraulic power unit motor from the main power source (battery or shore power) prior
to attempting the manual override procedure.
4-Point Leveling
1. Locate the valves that are paired with the landing gear or leveling jack that needs to be manually
overridden.
A. Landing Gear - Valve located on the lead landing gear (Fig. 5).
B. Leveling Jacks - Valves located on the 4 Bank Remote Manifold (Fig. 6).
Valve
Valve
Pressure Switch
6-Point Leveling
1. Locate the valves that are paired with the landing gear or leveling jack to be manually overridden.
A. Landing Gear - Valve located on the lead landing gear (Fig. 5).
B. Leveling Jacks - Valve located on valve block (Fig. 7).

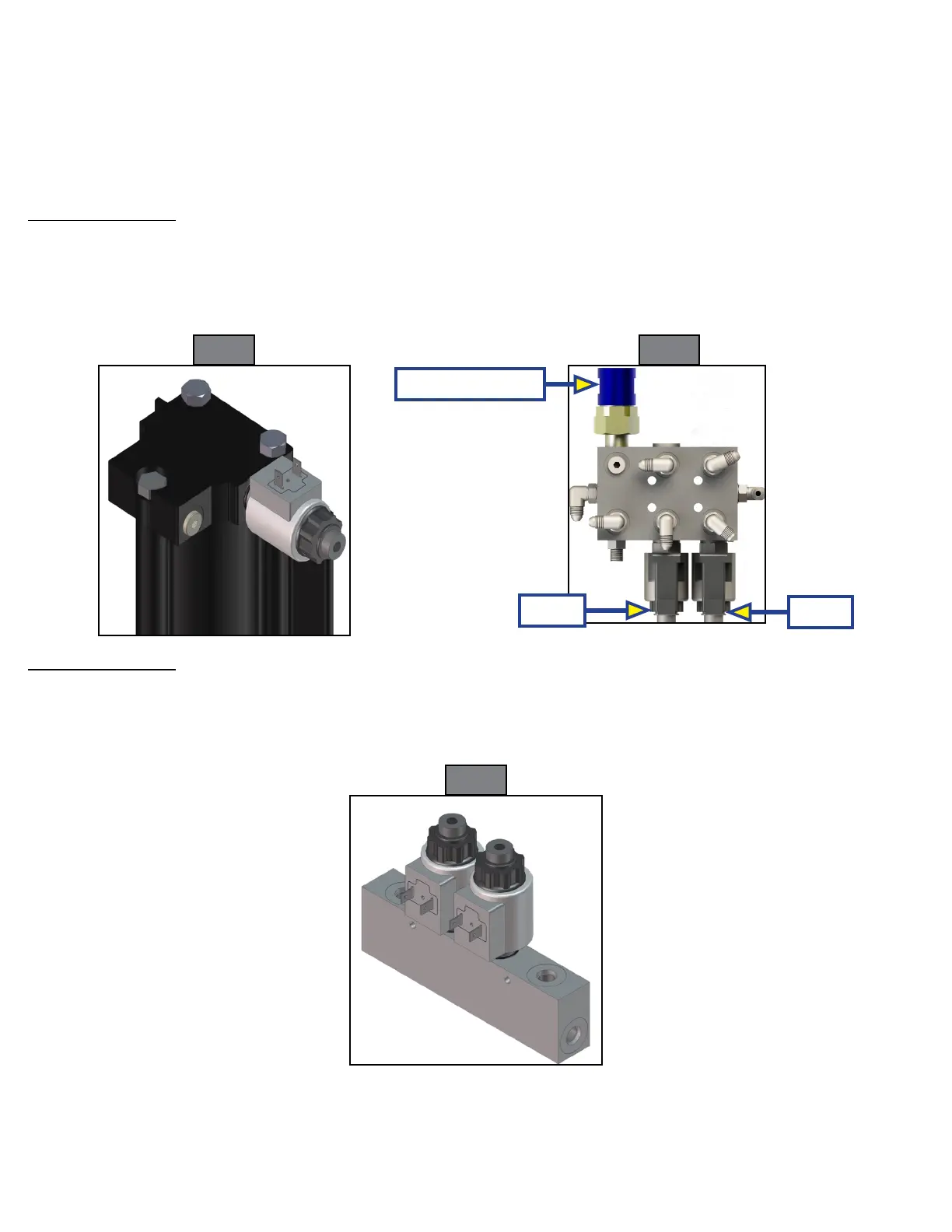

Fig. 5 Fig. 6
Fig. 7
To Next Page
