Rev:11.08.19 Page 155 CCD-0001573-08

Valve

Extend

Valve Block

Valve

Retract

Valve Block

Power Unit

Leveling

Mid Jack

Leveling

Rear Jack

Leveling

Rear Jack

Leveling

Mid Jack

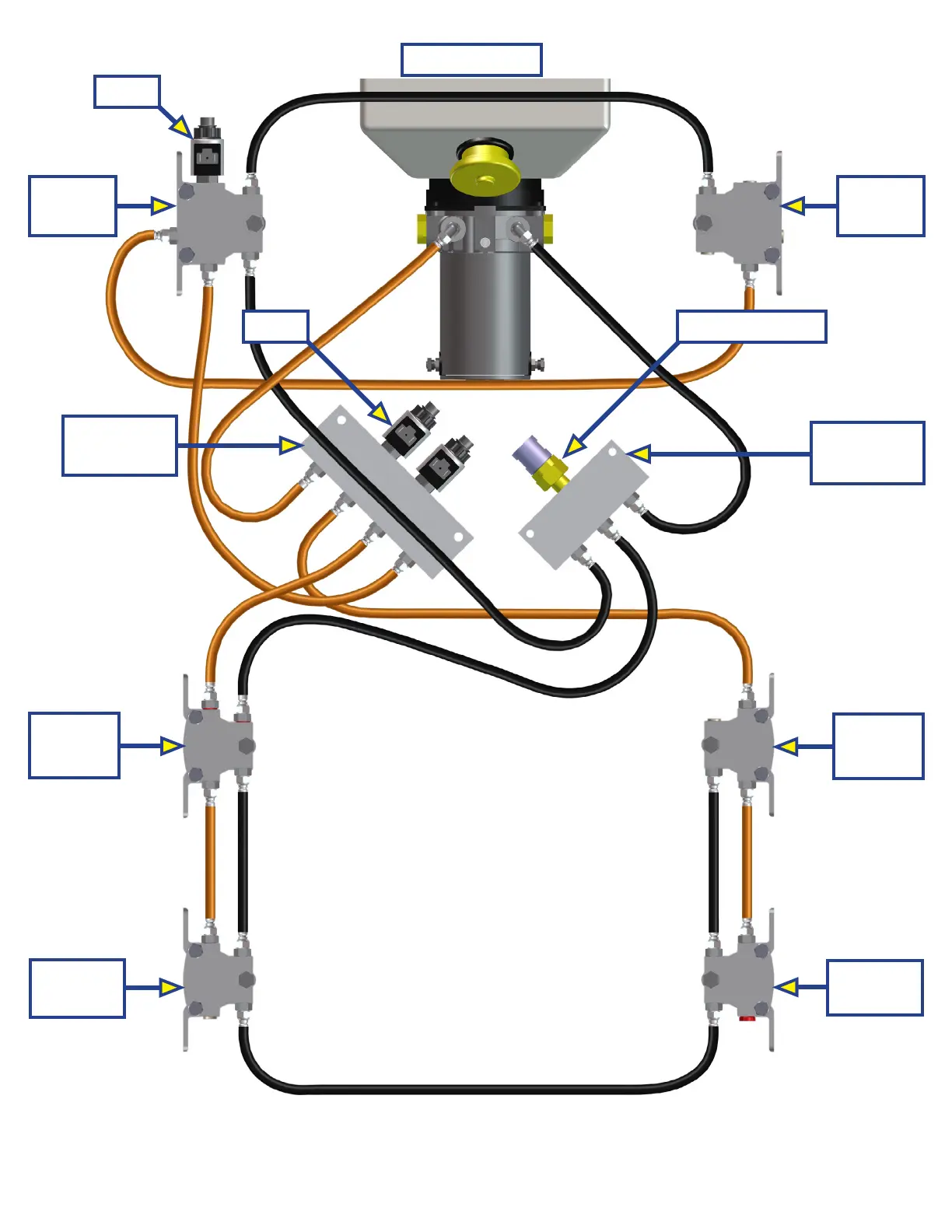

6-Point Hydraulic Diagram

Landing

Gear

Landing

Gear

Pressure Switch

Default Chapter3
- Table of Contents3
Ground Control11
- System and Safety Information11
- Prior to Operation11
- Basic Jack Operation12
- Troubleshooting14
- Preventative Maintenance Procedures15
Ground Control ® 3.0 (5Th Wheel) 4 Point to 6 Point16
- System and Safety Information16
- Prior to Operation16
- Touch Pad Diagram17
- Operation18
- Troubleshooting20
- System Settings23
  - Zero Point Calibration23
- Preventive Maintenance24
Ground Control ® 3.0 Onecontrol™ Touch Panel25
- System Information25
- Touch Pad Diagram - Auto Leveling Control Touch Pad25
- Safety Information26
- Operation - Auto Leveling Control Touch Pad26
- Touch Panel Diagram - Onecontrol Touch Panel27
- Operation - Onecontrol Touch Panel28
- Touch Panel Diagram - Onecontrol App from Myrv30
- Operation - Onecontrol App31
- Touch Panel Diagram - Linc Remote Control - Optional33
- Troubleshooting35
- Preventive Maintenance40
Ground Control ® Tt Leveling System41
- System Information41
- Safety Information41
- Touch Pad Diagram42
- Operation43
- Troubleshooting46
- Preventive Maintenance50
- System Settings50
  - Zero Point Calibration50
Ground Control ® Tt Leveling Onecontrol™ Touch Panel51
- System Information51
- Safety Information51
- Prior to Operation52
- Operation - Power Tongue Jack52
  - Unhitching from a Tow Vehicle52
  - Reconnecting to Tow Vehicle53
- Touch Pad Diagram - Auto Leveling Control Touch Pad53
- Operation - Auto Leveling Control Touch Pad53
- Touch Panel Diagram - Onecontrol Touch Panel56
- Operation - Onecontrol Touch Panel57
- Touch Panel Diagram - Onecontrol App from Myrv61
- Operation - Onecontrol App from Myrv62
- Touch Panel Diagram - Linc Remote Control - Optional65
- Operation - Linc Remote66
- Troubleshooting70
- Preventive Maintenance76
Level up77
- System and Safety Information77
- Introduction77
- Touch Pad Diagram78
- Prior to Operation79
  - Basic Jack Operation79
- 5Th Wheel Operation79
- Travel Trailer Operation81
  - Auto Level Sequence81
  - Hitch Recognition81
- Manual Operation82
- Zero Point Calibration83
- Maintenance84
- Troubleshooting84
  - Error Display in LCD Screen84
- Manual Override85
Level up ® with Onecontrol™ Touch Panel86
- System Information86
- Safety Information86
- Touch Pad Diagram - Auto Leveling Control87
  - Red/Green LED Indicator87
- Operation - Auto Leveling Control Touch Pad88
- Touch Panel Diagram - Myrv Onecontrol Touch Panel89
- Operation - Myrv Onecontrol Touch Panel90
- Touch Pad Diagram - Onecontrol App from Myrv93
- Operation - Onecontrol App94
- Touch Pad Diagram - Linc Remote Control - Optional95
- Maintenance Level up Onecontrol97
  - Fluid Recommendation97
- Manual Override98
- Troubleshooting99
  - Error Display in LCD Screen99
Hydraulic Landing Gear100
- System100
- Preventative Maintenance Procedures101
  - Mechanical Components101
  - Electrical Components101
- Auxiliary Operation102
  - Fluid Recommendation103
  - Filling Directions103
- Troubleshooting103
  - Power Unit103
Psx1™ (Power Stabilizing System)105
- System Description105
- Safety Information105
- Operation106
- System Maintenance108
  - Mechanical Maintenance108
- Troubleshooting108
Psx2™ (Power Stabilizing System)109
- Safety Information109
- System Description110
- Operation110
- System Maintenance112
  - Mechanical Maintenance112
  - Electrical Maintenance112
- Troubleshooting112
Manual Override Wrench113
- Introduction113
- Safety113
- Preparation113
- Manual Override113
  - Manual Operation for Tongue Jacks114
  - Manual Operation for Stabilizers114
Class C Hydraulic Leveling115
- System Information115
  - Component Description115
- Safety Information115
- Operation116
  - Selecting a Site116
  - Zero Point Calibration116
- Gray117
- Black117
- Troubleshooting122
- Maintenance125
  - Fluid Recommendation125
  - Preventive Maintenance125
Power Tongue Jack126
- Product Information126
- Safety127
- Operation128
- Troubleshooting130
  - Fuse130
  - Clutch130
- Additional Information Sources130
Smart Jack131
- Introduction131
- Safety Requirements131
- Preparation131
- Powered Operation132
- Manual Operation133
  - Unhitching from Tow Vehicle133
  - Hitching to Tow Vehicle133
Ground Control ® 3.0 Landing Gear134
- System Information134
- Operation134
- Prior to Operation134
  - Extending Landing Gear135
  - Retracting Landing Gear135
- Troubleshooting135
Patriot Jack Systems136
- Introduction136
- Operation137
- Preventive Maintenance138
  - Adding Fluid, Purging Air from Hydraulic System138
  - Fluid Recommendation138
- Troubleshooting139
  - Troubleshooting Guide139
- Manual Override140
  - Two-Valve System140
  - One-Valve Systems141
Level up ® 5Th Wheel142
- Introduction142
  - Product Features143
  - Component Description143
- Safety143
- Preparation144
- Operation145
- Manual Override148
  - 4-Point Leveling148
- Troubleshooting150
  - Error Display in LCD Screen150
- Maintenance151
  - Fluid Recommendation151
- 4-Point Wiring Diagram152
- 4-Point Hydraulic Diagram153
- 6-Point Wiring Diagram154
- 6-Point Hydraulic Diagram155
X-Trek Stabilization System156
- System Information156
- Safety156
- Instructions157
  - Extending Stabilizers157
  - Retracting Stabilizers158
- Troubleshooting158
- Hose Routing Diagram160
Swing down Stabilizer162
- Introduction162
- Safety162
- Operation163
  - Extend Swing down Stabilizer163
  - Retract Swing down Stabilizer163
- Notes165
