Relevant parameters:
PA-17
(S-off)
CVM
Maximum rotation speed of the analog
speed command
Communication
address:
0022H
0023H
Initial value
By Rated
Control mode
T / S
Unit
r/min
Configuration range
0 ~ max. Speed
Data size
16bit
Data format
Dec
Maximum rotation speed of the analog speed command:
 In the speed mode, this indicates the setting of the rotation speed while the maximum voltage
(10V) is input for the analog speed command.
If the speed is set to 3000 and 10V is input for external voltage, the speed control command is
3000r/min. 5V implies that the speed control command is 1500r/min.
Speed control command = Input voltage value x Setting value/10
 In the torque mode, the parameter represents the command for analog speed limit.
Speed limit command = Input voltage value x Setting value/10

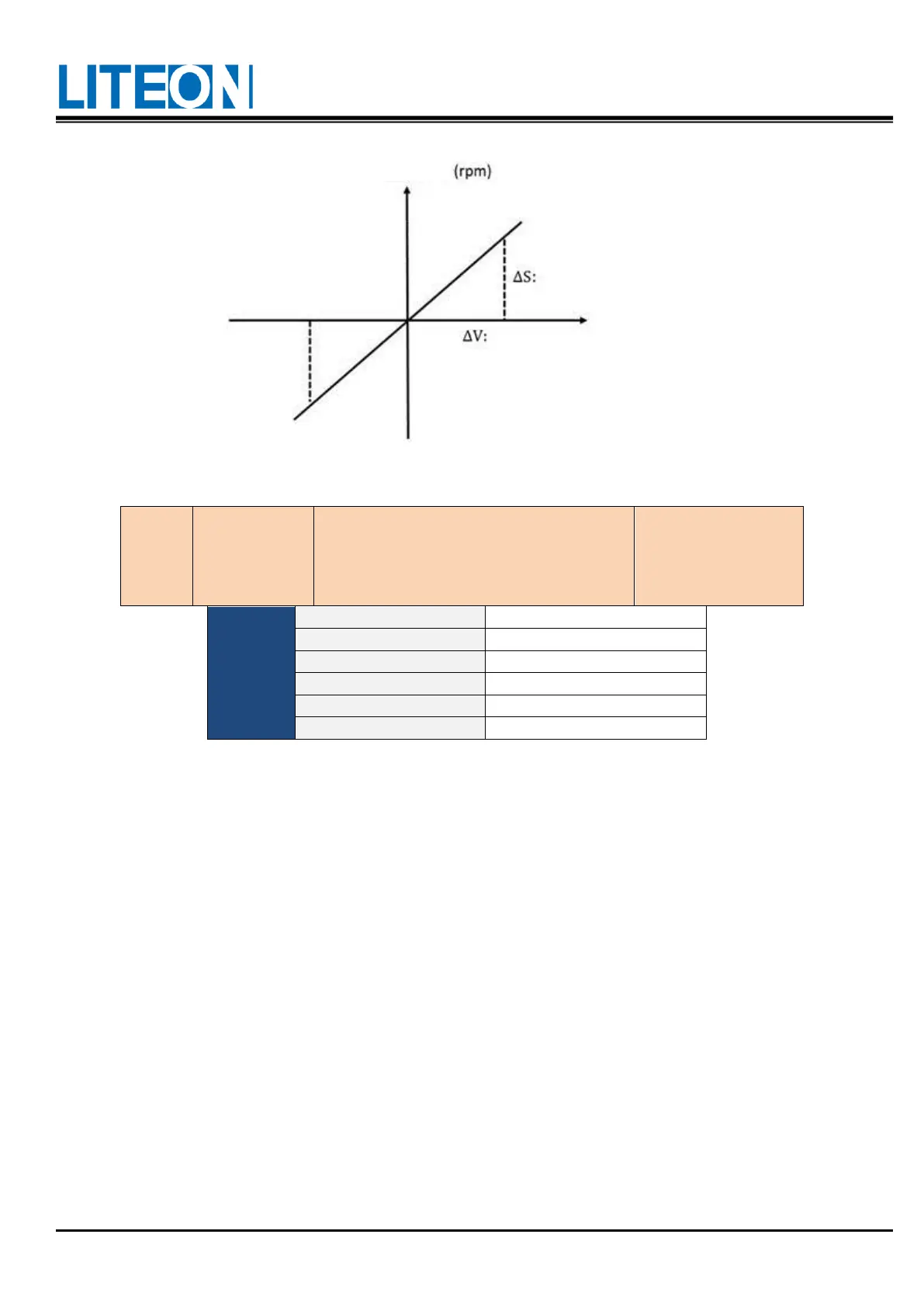

Speed command
Variation of speed command
Analog input voltage (V)
Variation of the input
analog voltage
