Lite-On Technology Corp.
Industrial Automation
60
Chapter 4 Panel and Operation

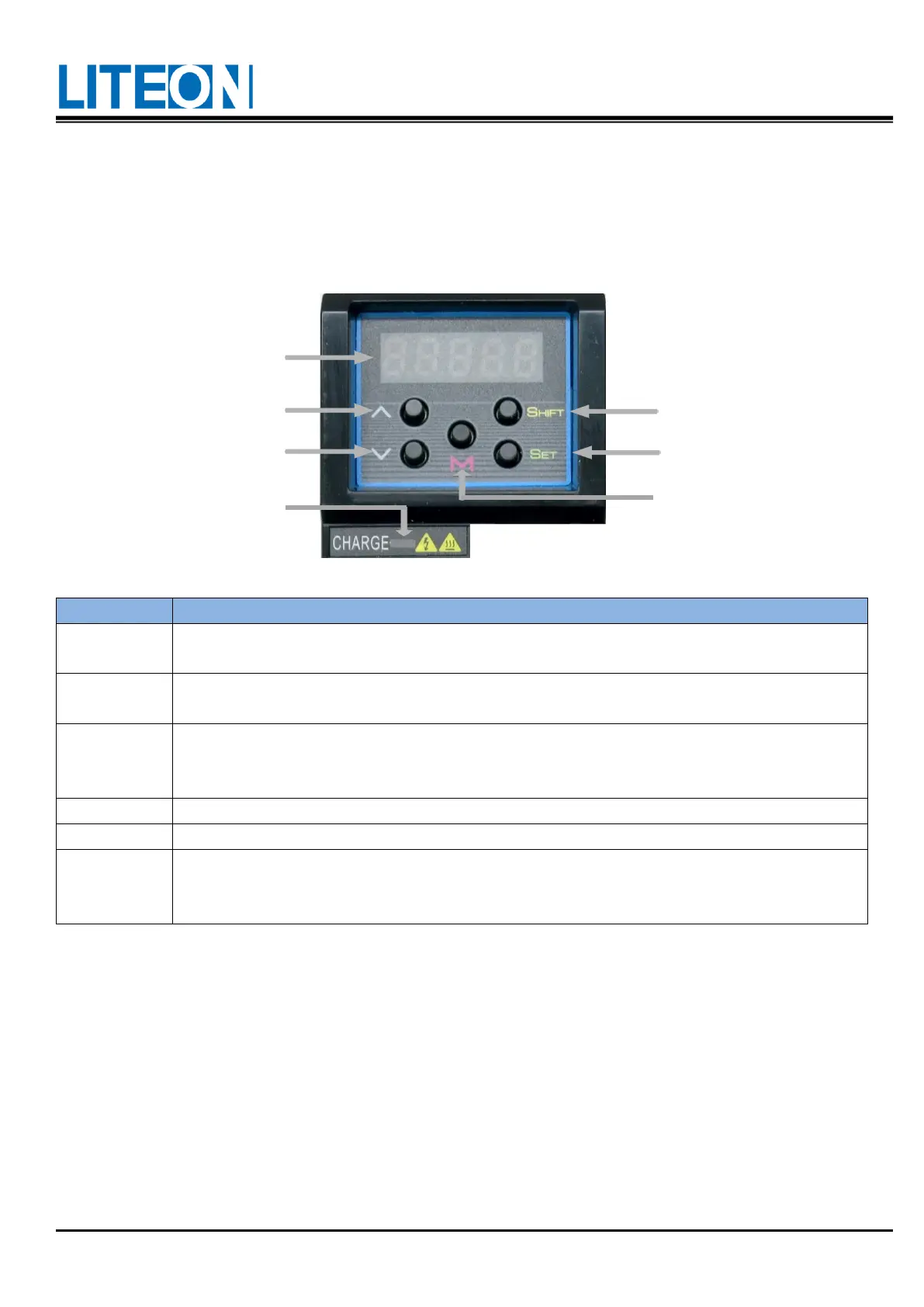

4.1. Panel display and key description
Five seven-segment displays are used to show the monitoring, parameter and setting
values.
It is used to switch between the monitoring mode, parameter mode and alarm display.
When editing the mode, press the MODE key to exit to the parameter mode.
The group code can be changed in the parameter mode. In the editing mode, shift the
blinking character to the left would be able to modify the higher character value that is set.
In the monitoring mode, the display of the high/low order digit can be switched.
It is used to change the monitoring code, parameter code or setting value.
It is used to change the monitoring code, parameter code or setting value.
It is used to display and store the setting value. In the monitoring mode, it is possible to
switch to the decimal/hexadecimal number system. In the parameter mode, press the SET
key to enter the editing mode.
