LiteOn ISA-7-040-S1 User Manual

Lite-On Technology Corp.
Industrial Automation
175
suggested that the variation in external load inertia should be stable or slow. The convergence time
tuned in the auto mode varies by the speed of the change in motor rotation speed.
7.3.7. Resonance suppression unit
The excessive rigidity (system bandwidth set too high) of the drive control system could result in the
mechanical resonance generated by the drive combined with the machinery structure. The drive
provides the low-pass filter (PB-17), Notch Filter 1 (PB-10) and (PB-11), Notch Filter 2 (PB-12) and
(PB-13), as well as Notch Filter 3 (PB-10) and (PB-11). The resonance suppression is achieved without
affecting the original control parameter.
Relevant parameters:
PB-10
NCD1
Notch filter for resonance suppression
(1)
Communication
address:
010AH
010BH
Initial value
0
Control mode
P
Unit
Configuration range
Data size
Data format
PB-11
NCD1
Notch filter for the attenuation rate of
the resonance suppression (1)
Communication
address:
010AH
010BH
Initial value
0
Control mode
P
Unit
Configuration range
Data size
Data format

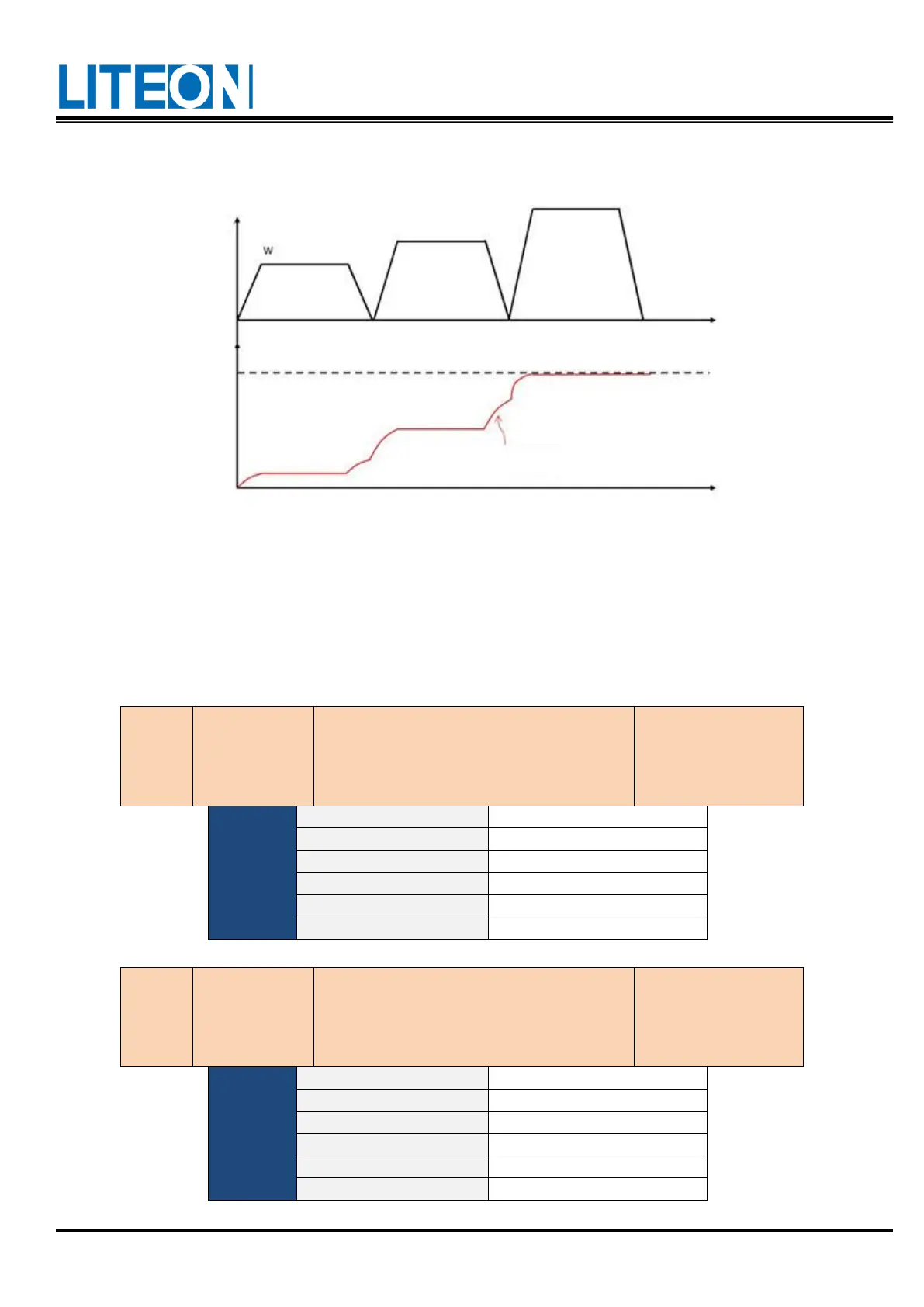

Change of
rotation speed
Inertia estimation
Value for estimated
path of load inertia
Value of external
load inertia
Time
Time
