Lite-On Technology Corp.
Industrial Automation
191

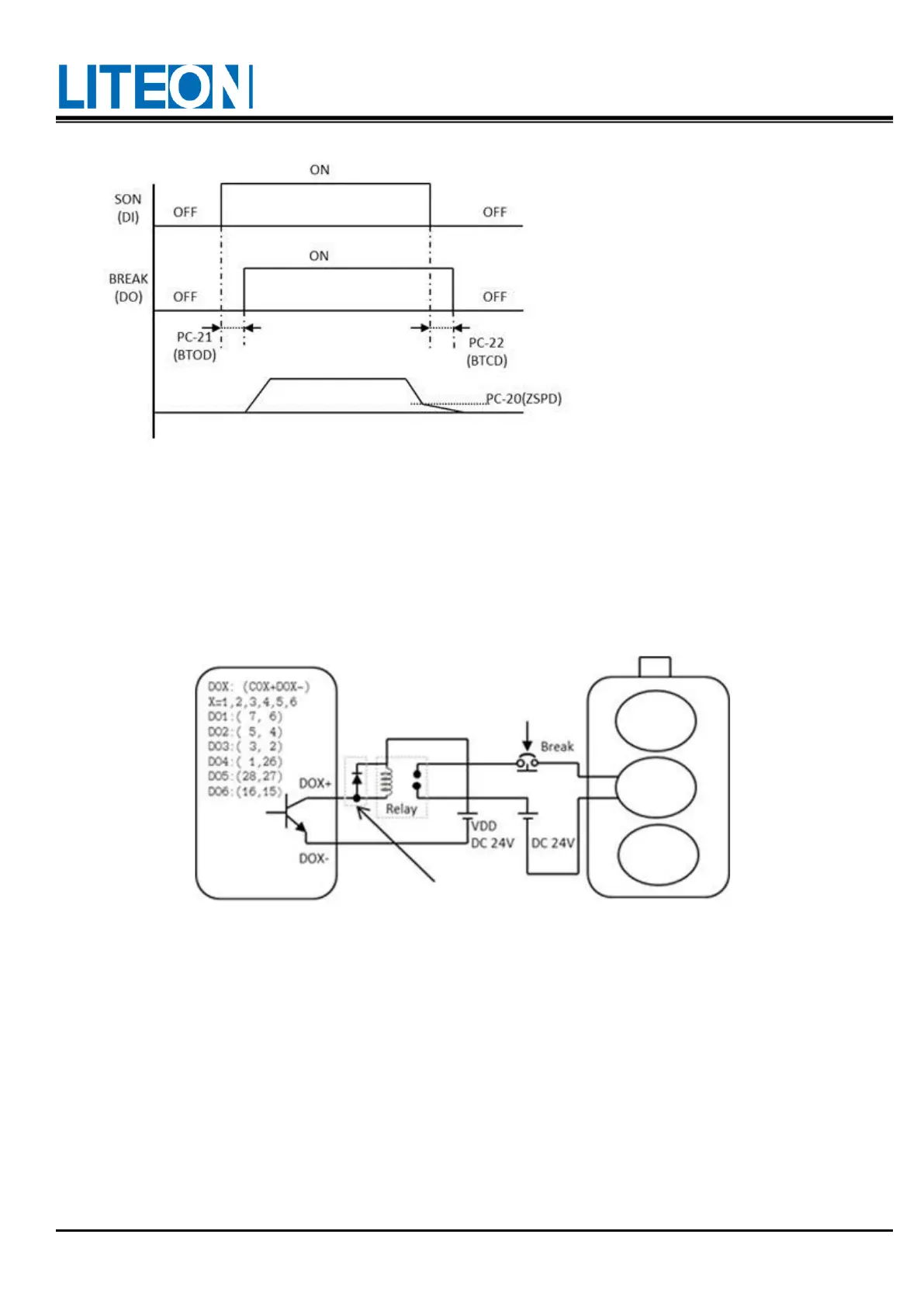

Explanation regarding the timing for BREAK output:
1. After the servo is off, the motor rotation speed might be still over the one set in PC-20 after the time set
the in PC-22 has elapsed. In this case, BREAK is OFF (electromagnetic brake lockout).
2. After the servo is off, the motor rotation speed might go below the one set in PC-20 even before the time
set the in PC-22 has elapsed. In this case, BREAK is OFF (electromagnetic brake lockout).
Open circuit at
emergency stop
The diode polarity must be in
the right place.
To Next Page
