CHAPTER 7: OPERATION 7-11
QUICK LOAD SERVO III MI
4.2. Access to the functions

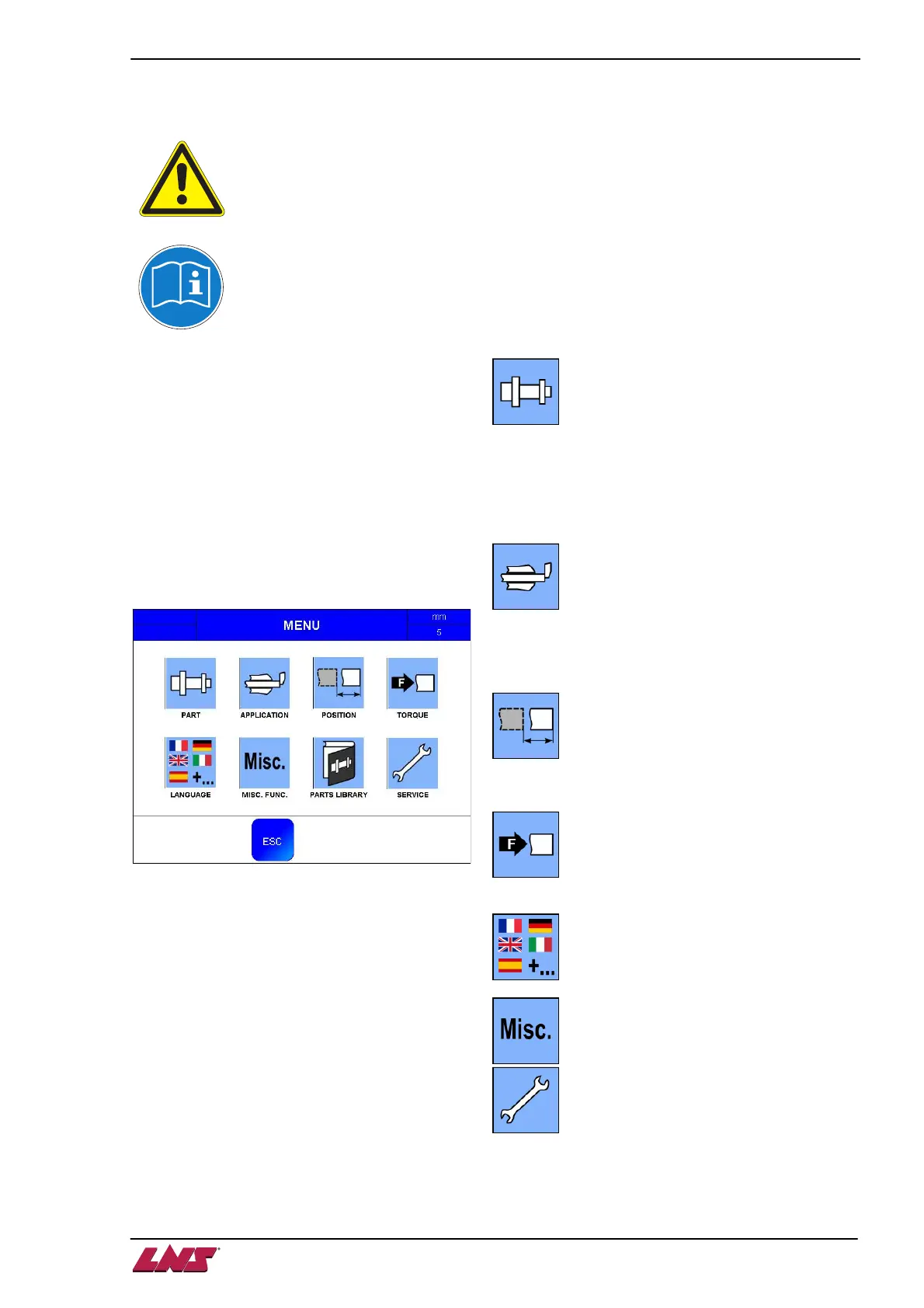

By pressing the MENU key, it is possible to access the setup functions.
To modify these parameters, the bar feed must be in STOP mode. To validate some
values or parameters, hold the [ENTER] key until the icon disappears.
Depending on your lathe or your production needs, some of the parameters may not be
visible at first. The missing parameters can be unmasked under SERVICE > DISPLAY.
Part setup
Allows to define the parameters and values
of the part, like:
• Bar stock shape (round, hex, square,
other)
• Bar stock diameter
• Overall part length to feed
• Number of clamping device openings
• Overall part length for the auxiliary part
(remnant machining)
Application setup
Allows setting quickly the working mode by
selecting the desired application. Following
working modes are always available:
• Feed with turret
• Feed without turret
• Dry Run
Positions setup
Quick access to the following position
values:
• End of bar
• Top cut
• Auxiliary end of bar
Torques setup
Quick access to the following position
values:
• Torque for the bar stock loading
• Torque for the part feeding
Language setup
Allows the access to the other languages
Miscellaneous functions
• Reference point request
• Timings on lathe’s clamping device
Service setup
Reserved for maintenance to LNS
technicians and for unlocking features /
displays.
