INSTALLATION
MOUNTING ON THE WALL
This unit is VESA-compliant, and is
designed to be wall-mounted with
a VESA-compliant 75mm x 75mm
mounting kit designed for flat-panel
TVs(soldseparately).Mountthisunit
according to the instructions included
inthemountingkit.
Note:
Removethebasestandbeforemounting
theunitonthewall.
INSTALLING / REMOVING THE BASE STAND
WARNING:TheLCDDisplayisveryfragile,andmustbeprotectedatalltimeswhenremovingthebasestand.Be
surethatnohardorsharpobject,oranythingthatcouldscratchordamagetheLCDdisplay,comesintocontact
withit.DoNOTexertpressureonthefrontoftheunitatanytimebecausethescreencouldcrack.
1. Disconnectallcablesorcordsconnectedtotheunit.
2. Laytheunitdownonaatsurfacewiththebacksidefacingup.Pleasemakesuretoplaceasoftcushioned
material(suchasapilloworthickpieceoffoam)beneaththescreen.

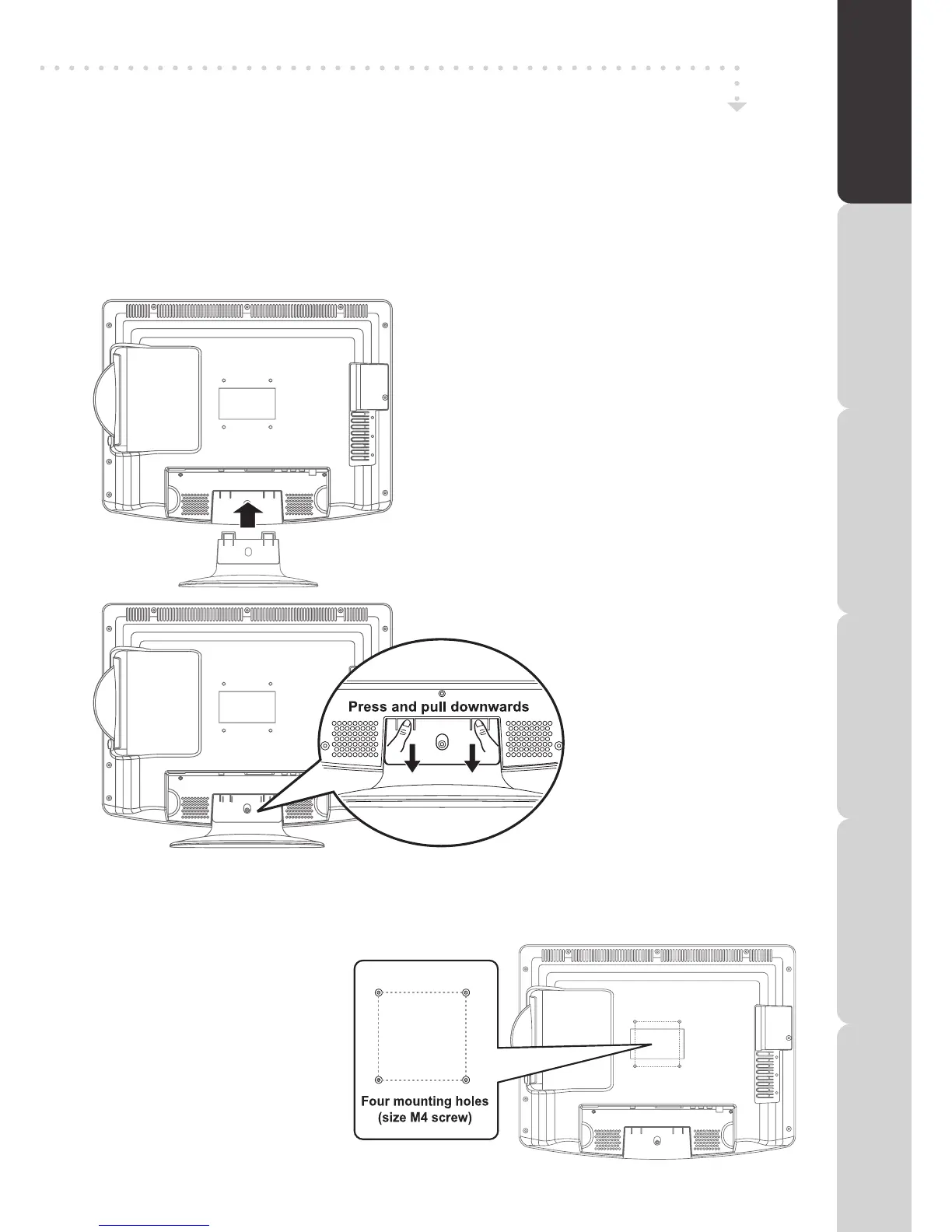

4. Toremove the basestand, keep
pressing the locking area of the
basestandandpulldownwardsto
releasethebasestand.
3. Toinstallthebasestand,placethebasestandonthe
mountingslot,pushthestandtillitlocks.
75mm
75mm
