Logosol M7 User Manual

Assembly: Adjusting Cross Beam and Strut
10
A
B

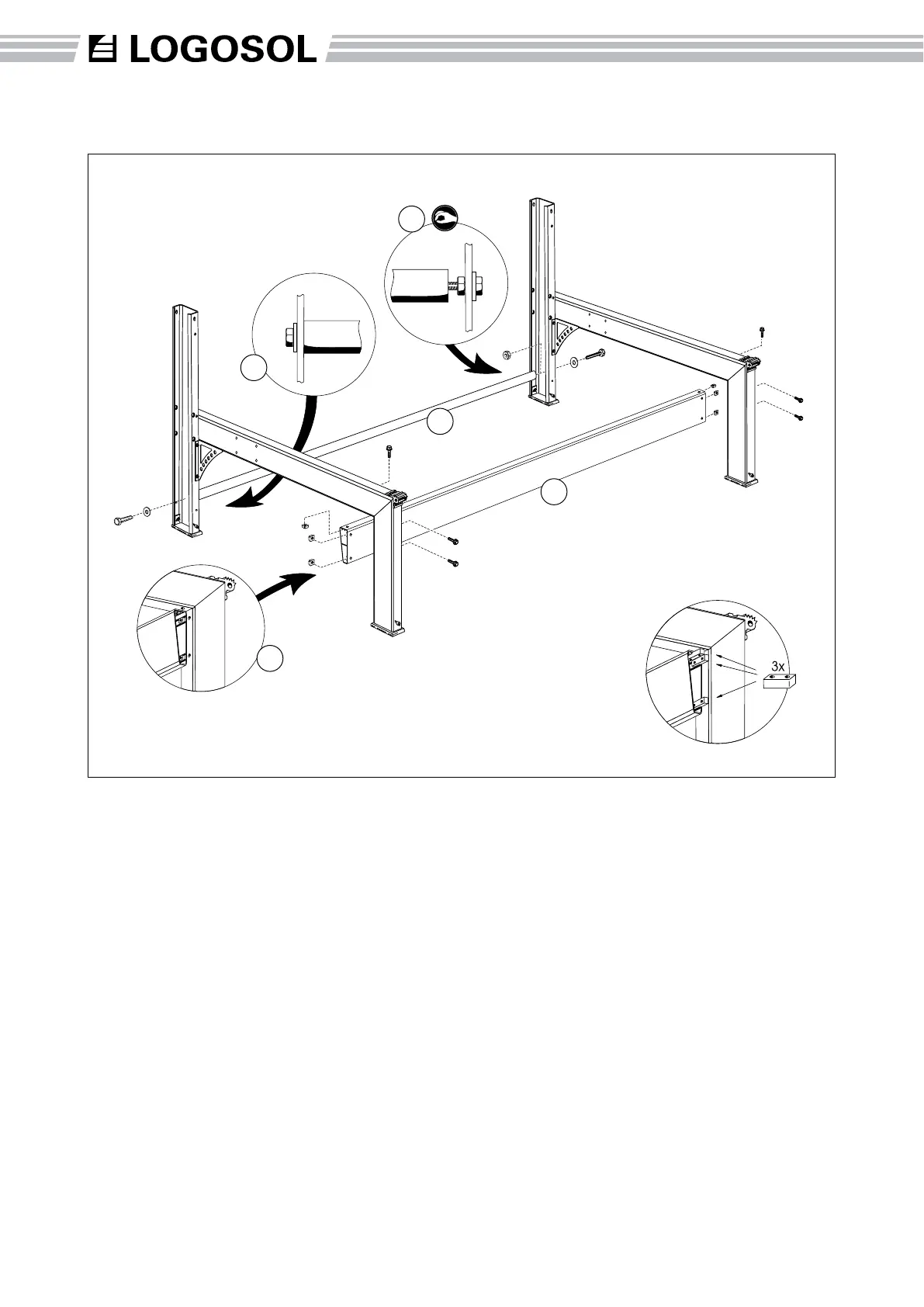

(10) Fit the adjusting strut. Use
a short bolt on the side where
the strut is bolted to the back of
the long leg (A) pulling the strut
right up against the leg. (1 x
M10x40 bolt, 1 x M10 washer)
On the other side (B) use a
long bolt with a nut on the
inside of the leg. Screw the bolt
approximately 20 mm into the
adjusting strut. Do not tighten
this bolt. (1 x M10x50 bolt, 1 x
M10 nut, 1 x M10 washer)
(11) Fit the cross beam. In each
leg there are six holes. The inner
ones are used for the standard
M7 unit (C). (6 x M6x20 collar
bolts, 6 x M6 square nuts)
(D) The others three holes are
used when the M7 is extended,
and an additional cross beam is
tted on either side (accessory).
Then three blocks with two
threaded holes
is tted, instead
of the six square nuts.
12
11
C
Part number Description
4507-001-1010 Adjusting strut
4507-001-1009 Cross beam
4507-001-2072 Screw bag # 72
When extending
the sawmill:
