Logosol M7 - Assembly: Guide Rail Strut

12
13
13
13
(13)

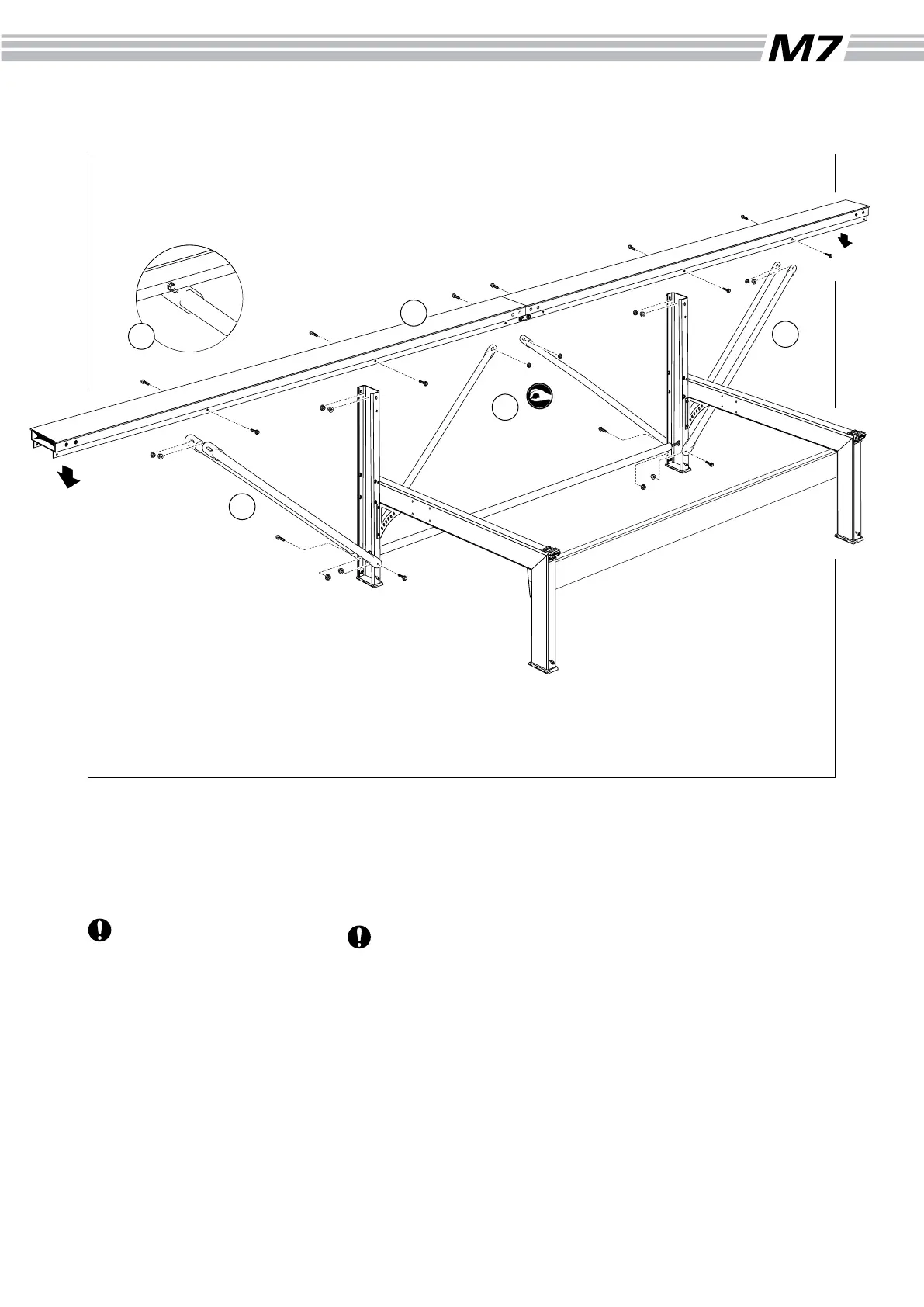

Fit the struts to the inside
(D) of the guide rail flanges
with the oval hole up. (10 x
M6x20 collar bolts, 10 x M6
collar nuts)
Two struts are fastened in
the same hole of the long
legs (the side facing the
operator). Do not tighten all
the way (for adjustment, see
page 22).
D
(12)
Place the guide rail on the
long legs, pressing the guide
rail down while the bolts are
tightened. (4 x M6x20 collar
bolts, 4 x M6 collar nuts)
C h e c k t h a t th e angl e
between the guide rail and
the long leg is 90°.
13
Assembly: Guide Rail Strut
part number Description
4507-001-1015 Guide rail strut
4507-001-2073 Screw bag # 73
