Logosol M7 - Assembly: Chain Guard; Assembly: Extender Nuts

32

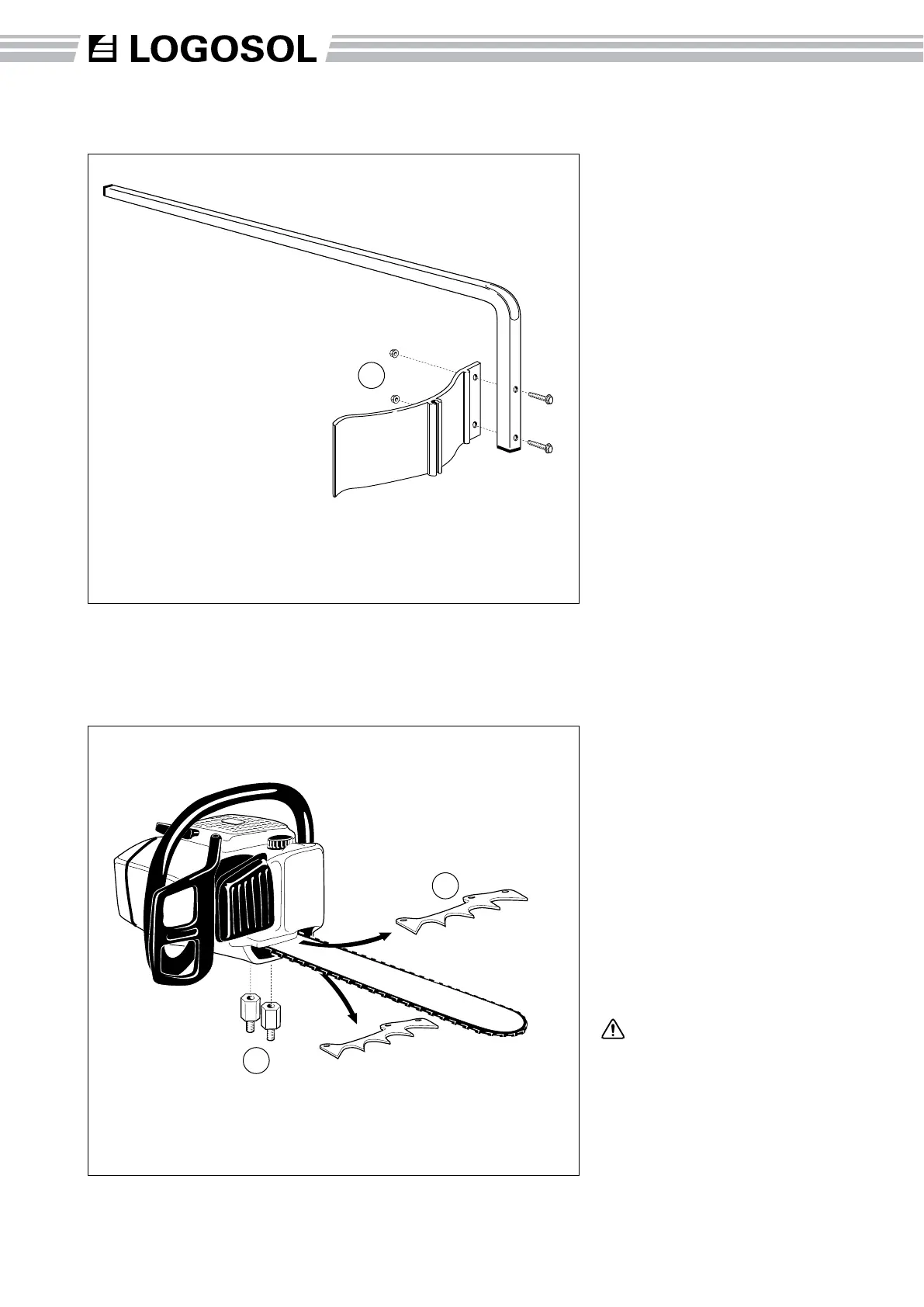

(30) Fit the chain guard on the
support and bolt. (2 x M6x40
collar bolts, 2 x M6 locking
nuts)
31
30
Remove the two bolts holding
the guide bar and remove the
guide bar cover.
(31)
Remove the bark grips,
leaving the bolts and retightening
the nuts.
(32) Ret the guide bar cover,
replacing the guide bar bolts
with the two extender nuts. The
guide bar nuts will later be used
to fasten the chainsaw to the
carriage.
Only CE-approved chain-
saws with two guide bar
nuts may be used with the M7
sawmill.
Assembly: Chain Guard
Assembly: Extender Nuts
18
Part number Description
4507-723-4809 Chain guard
4507-720-3001 Chain guard mount
4507-001-2076 Screw bag # 76
Part number Description
4510-723-3402 Logosol nut 066
4507-001-2076 Screw bag # 76
