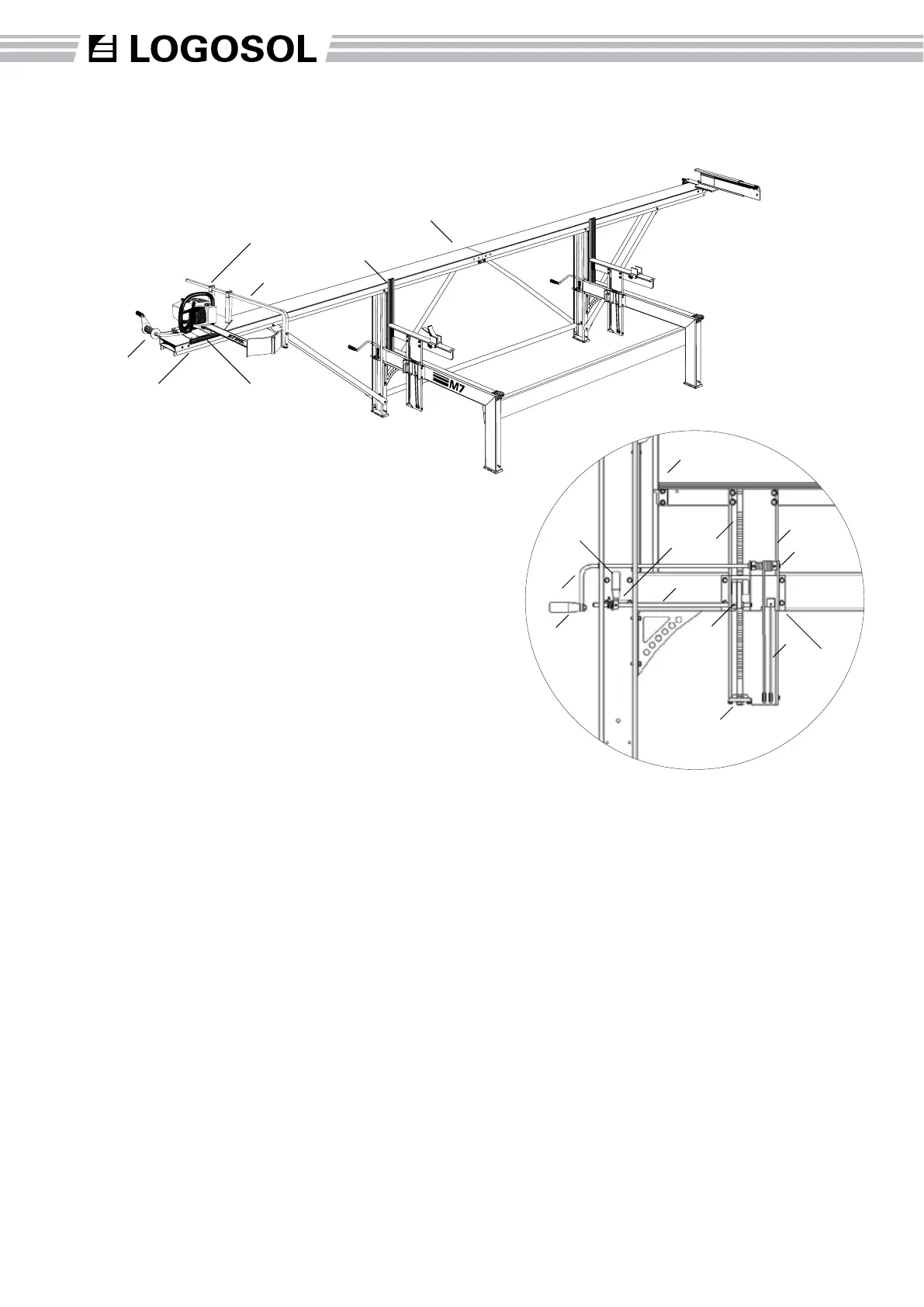

Logosol M7 - Parts List

38
1-3
4
5
8
6
7
9
10
11
20
21
52, 53 58, 59
38-45
57
54, 55
48-51, 56
47
Parts list
No. Article number Quantity Description
1. 4507-001-1000 2 Guide rail, 2.75 m (9 ft)
2. 4510-720-6700 1 Joint coupler 300 mm
3. 4510-723-0800 2 Joint plates
4. 4507-001-1015 6 Guide rail strut
5. 4507-001-1010 1 Adjusting strut
6. 4507-001-1009 1 Cross beam
7. 4507-001-1030 2 Long leg
8. 4507-001-1035 2 Short leg
9. 4507-001-1040 4 Foot
10. 4507-001-1200 2 Horizontal beam
11. 4507-001-1045 2 Knee connector
12. 4507-001-1050 2 Log bed
13. 4507-001-1025 2 Edge support with log clamp
14. 4507-001-0300 6 Line pulley
15. 4507-001-1190 2 Setting block for log bed
16. 4507-001-1165 2 Short indicator
17. 4507-001-1170 2 Long indicator
18. 4507-001-1055 2 Rachet Cam Neutral plate
19. 4507-001-1060 2 Angle tting
20. 4507-001-1075 2 Log support
21. 4507-001-1070 4 Scale
22. 4507-001-1065 2 Lifting beam
23. 4507-001-1080 2 Lifting line, 2.05 m (6’9”)
24. 4507-001-1085 2 Saddle Plate, compl.
25. 4507-001-1090 4 Plastic glide, saddle plate
26. 4507-001-1095 8 Spacer sleeve
27a. 4507-001-1100 2 Crank rod
27b 4507-001-1101 2 Crank handle
28. 4507-001-1105 2 Locking collar, track
29. 4507-001-1106 2 Locking collar
30. 4507-001-1150 2 Rachet bar
31. 4507-001-1115 2 Scale selector
32. 4507-001-1120 2 Turn spring
33. 4507-001-1125 2 Rachet Cam
34. 4507-001-1130 4 O-ring
35. 4507-001-1020 2 Rachet handle
36. 4507-001-1145 2 Rachet bar stop plate
37. 4507-001-1205 2 Line pulley holder
38. 4507-001-7600 1 Log grip, compl.
39a. 4510-723-2905 2 Plastic slide, log grip *
39b. 4507-720-7604 2 Sliding block, aluminium *
40. 4510-723-2511 1 Spacer sleeve *
41. 4507-723-4806 1 Log grip guard *
42. 4510-723-4807 1 Extension, log grip guard
43. 4510-723-5100 1 Threaded bar *
44. 4510-723-4902 1 Adjustable handle, M6 *
45a. 4507-720-7601 1 Spiked log grip, spikes, 9-points *
45b. 4510-723-2200 1 Plastic spacer plate, log grip *
45c. 4507-720-7602 1 Holder plate *
46. 4507-001-1110 2 Rachet cam axle
47. 4507-720-7502 1 Carriage, complete
48. 4510-723-2002 1 Chainsaw feed line, 8 m (26 ft) *
49. 9999-000-6010 1 Electric saw feed line 8 m (26 ft) *
50. 6600-001-3063 1 Feed line E37, 16 m (52 ft) *
51. 9999-000-1032 1 Line spool *
52. 4510-723-2904 2 Plastic slide, carriage *
53. 4507-720-7402 2 Sliding block, aluminium, carriage *
54. 4507-723-4809 1 Chain guard *
55. 4507-720-3001 1 Chain guard mount *
56. 4510-720-2800 1 Spool holder *
57. 4510-720-2900 1 Pylon carriage bracket *
58. 4510-723-3402 2 Logosol nut 066 *
59. 4510-723-3404 2 Logosol nut 088 *
60. 4507-001-1500 2 Adjusting plate 70 x 10 x 0.5 mm *
4507-001-2071 2 Screw bag # 71, page 10
4707-001-2072 1 Screw bag # 72, page 11-12
4507-001-2073 1 Screw bag # 73, page 13
4507-001-2074 1 Screw bag # 74, page 14
4507-001-2075 1 Screw bag # 75, page 15-16
4507-001-2076 1 Screw bag # 76, page 17-19
4507-001-2077 1 Screw bag # 77, page 20
* Articles that are part of another article number, but can be ordered as a spare part or accessory.
15-17
14
19
18
22
24-29
23
46
31
32
35
33
34
36
37
30
This list includes items that are not part
of the standard construction.
The items are ordered one at a time.
The number listed in the table indicates
the number usually included.
13
12
27 b
27 a
