Logosol M7 - Assembly: Spiked Log Grip with Guard

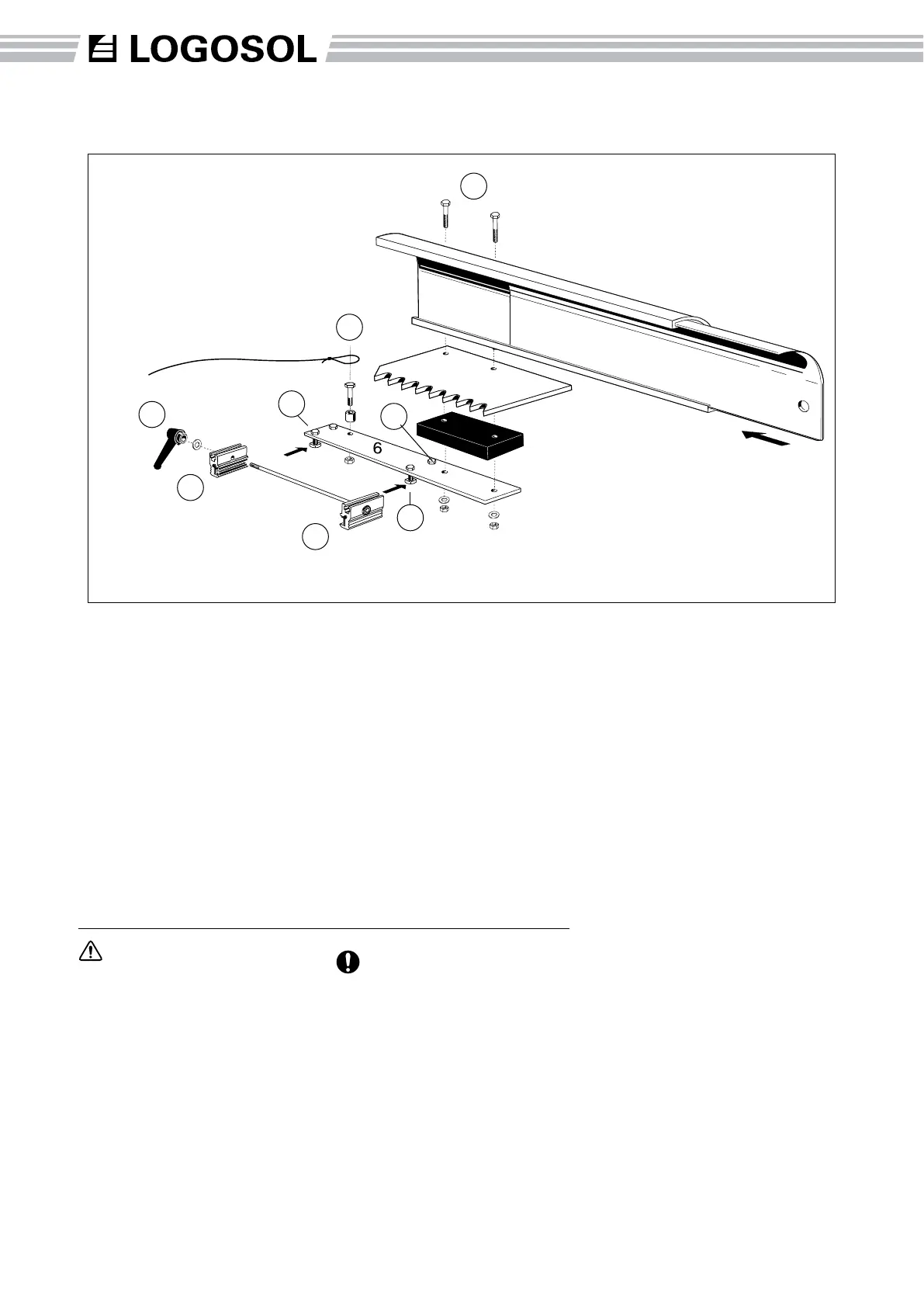

(36) Screw the handle (on some
models a knob) with a washer
on the threaded rod for the log
grip carriage. (1 x M6 washer)
(37) Insert the bolts and screw
on square nuts in the same way
as when the chainsaw carriage
was assembled. (4 x M6x16
bolts, 4 x M6 square nuts)
(38) Fit the sliding rails under
the plate so that the square nuts
t into the slide rail tracks.
(39) Center the guard, log grip
and plastic spacer over the holes
in the plate. The spacer should
be turned so it extends as far as
possible behind the grip. Thread
the bolts through the holes and
tighten. (2 x M6x40 bolts, 2 x M6
washers, 2 x M6 nuts)
(40) Thread the chainsaw feed
line holder bolt through the
spacer and t on the plate. (1 x
M6x25 bolt, 1 x M6 nut)
The holder bolt can be tted in
one of two holes depending on
whether a petrol or an electric
saw is being used. The picture
illustrates set-up for a petrol
saw. When using an electric
saw, the bolt (A) is replaced by a
M6x25 and a spacer sleeve.
Make a loop on the feed line and
place it over the spacer.
38
37
39
36
40
38
37
Assembly: Spiked Log Grip with Guard
20
Part number Description
4507-001-7600 Spiked log grip, compl.
4507-723-4806 Log grip guard
4507-720-7601 Log grip spikes
4510-723-2200 Spacer plate, plastic
4507-720-7602 Log grip plate
4510-723-4902 Adjustable handle (or star knob)
4510-723-5100 Threaded bar
4507-001-2077 Screw bag # 77
A
Risk of injury when the bar
exits the log! The guard
extension must be tted when
a guide bar longer than 45
cm (18”) is being used. The
position of the extension can be
adjusted by sticking a suitable
tool, e.g. a screwdriver, through
the hole. This way you can push
the guard extension inwards or
outwards.
The guard extension is
an accessory, which can
be ordered from Logosol. See
the parts list at the end of the
manual.
