The guide bar should be
parallel to the log bed. If
this is not so, the guide bar is
probably not straight. Remove
the chain from the guide bar
without removing the guide bar
and move the sawing unit over
the log bed.
Use protective gloves!

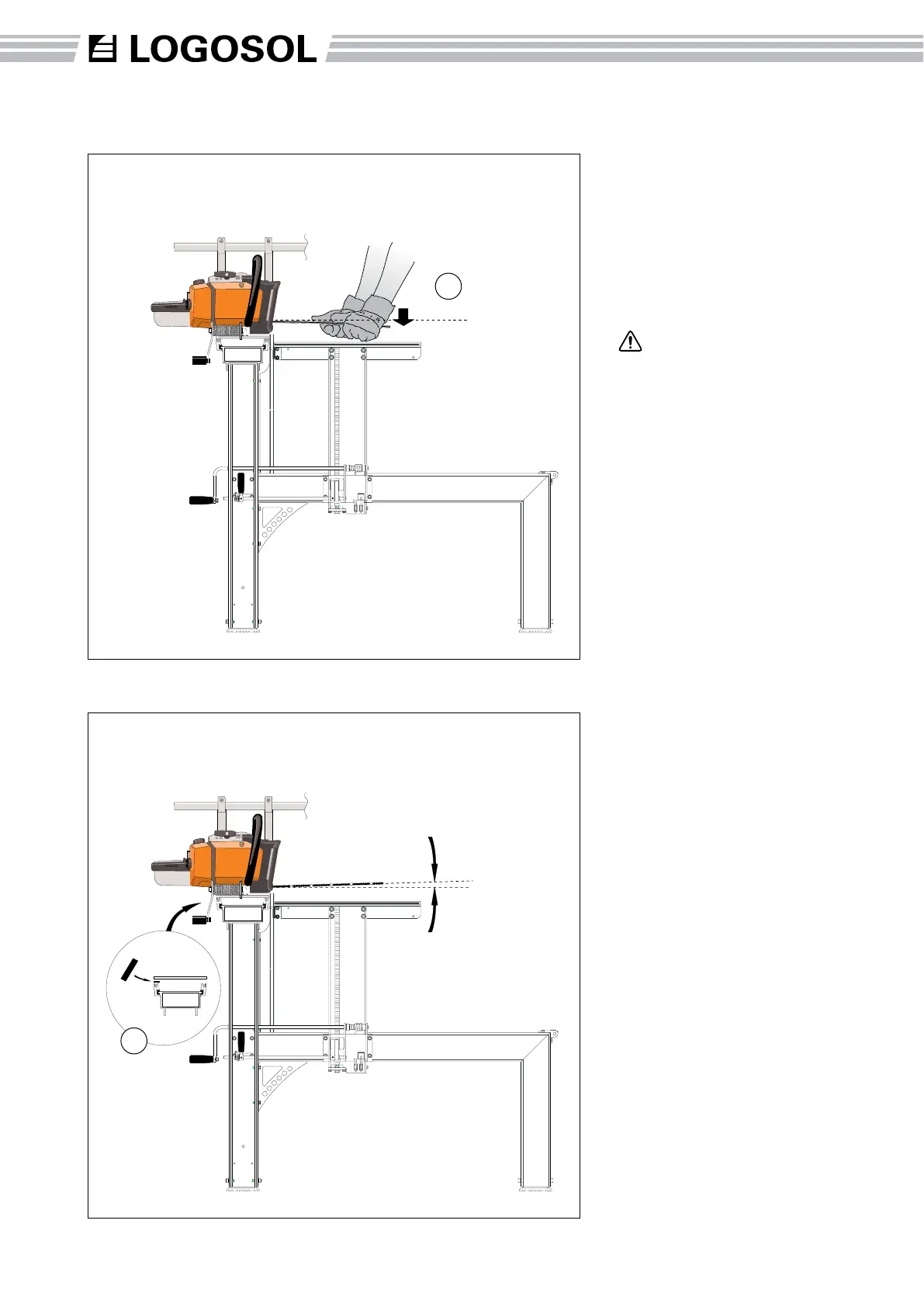

(A) Grasp the middle of the
guide bar with both hands as
shown and bend it carefully
until it is parallel to the log bed.
Check using the setting block.
(B)
How straight the guide
bar mounts varies between
chainsaws.
It should only be necessary
to adjust a guide bar once,
provided that it is not bent during
sawing.
If after turning the guide bar you
notice that you need to bend it
again in the same direction as
before, it may be that the guide
bar mount is not true. This can
be compensated for by placing
one or more adjustment pieces
between the aluminium sliding
rails and the chainsaw or electric
saw plate. Adjustment pieces
can be ordered from Logosol,
part. no. 4507-001-1305.
Adjustments – Guide Bar
