Logosol M7 - Assembly: Chainsaw and Chain Guard Support

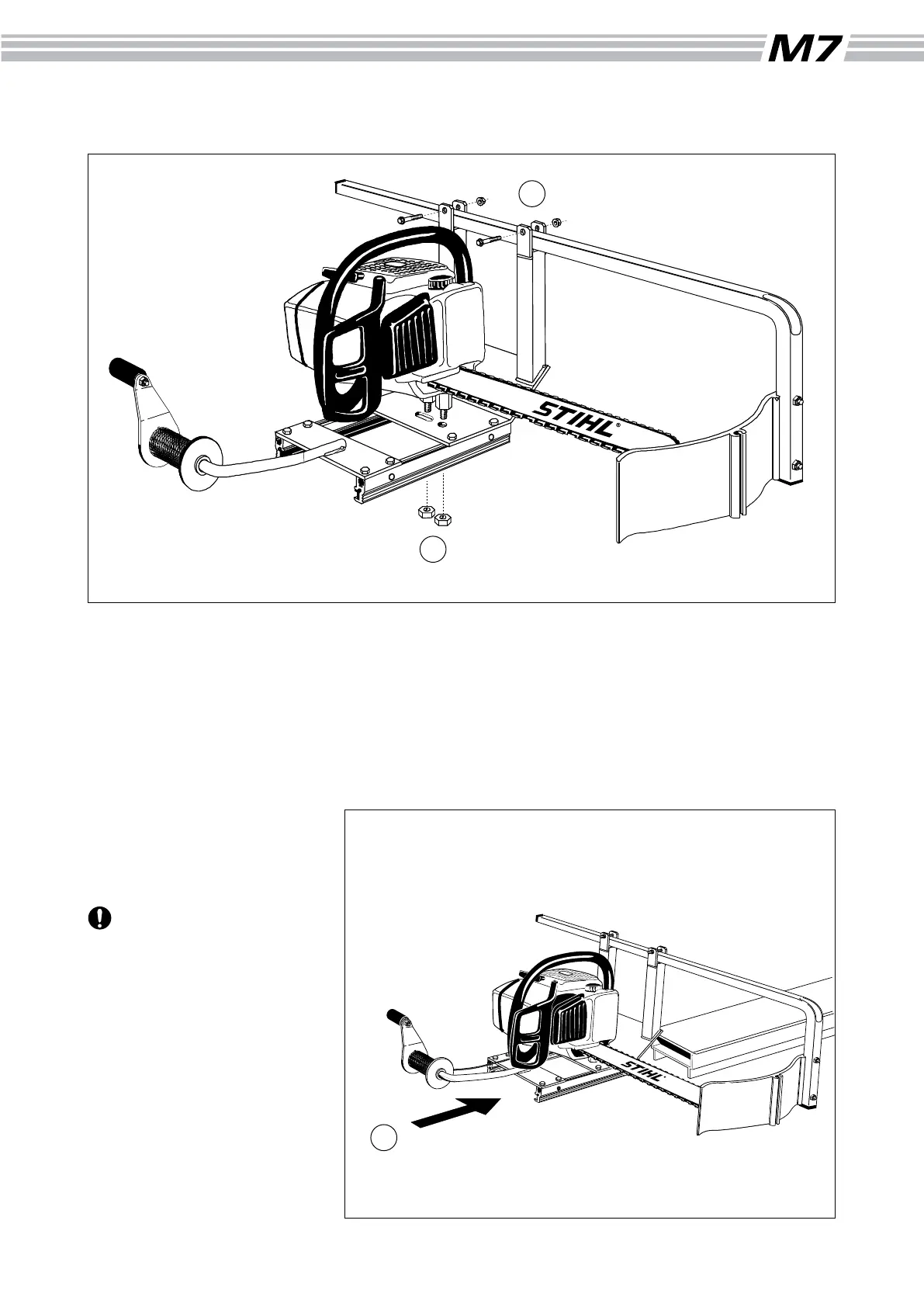

(33) Fit the Logosol extender
nuts through the chainsaw plate
using the front hole. (For some
chainsaw models the rear hole
has to be used to ensure that
the saw cover will not extend too
far. However, this is relatively
unusual.) Screw the chainsaw’s
guide bar nuts onto the Logosol
extender nuts under the plate
and tighten.
33
34
35
(34)
Fit the chain guard support
on the two arms of the chainsaw
plate so that the chain guard sits
app. 4 cm (1 1/2”) from the tip of
the guide bar. (2 x M6x40 bolts,
2 x M6 collar nuts)
(35) Push the assembled
carriage onto the guide rail with
the guide bar facing the log
beds.
Check that the carriage
moves easily on the guide
rail. If not, loosen the nuts on the
threaded bars, push the carriage
onto the guide rail, loosen the
eight bolts holding the sliding
rails, move the carriage back
and forth and retighten the eight
bolts. Tighten the nuts on the
threaded bars until the carriage
runs easily on the guide rail but
yet is not tted too loosely. If this
is insufcient, check the plastic
slide rails for damage.
Assembly: Chainsaw and Chain Guard Support
19
Part number Description
4507-001-2076 Screw bag # 76
