Logosol M7 - Assembly: Saw Carriage

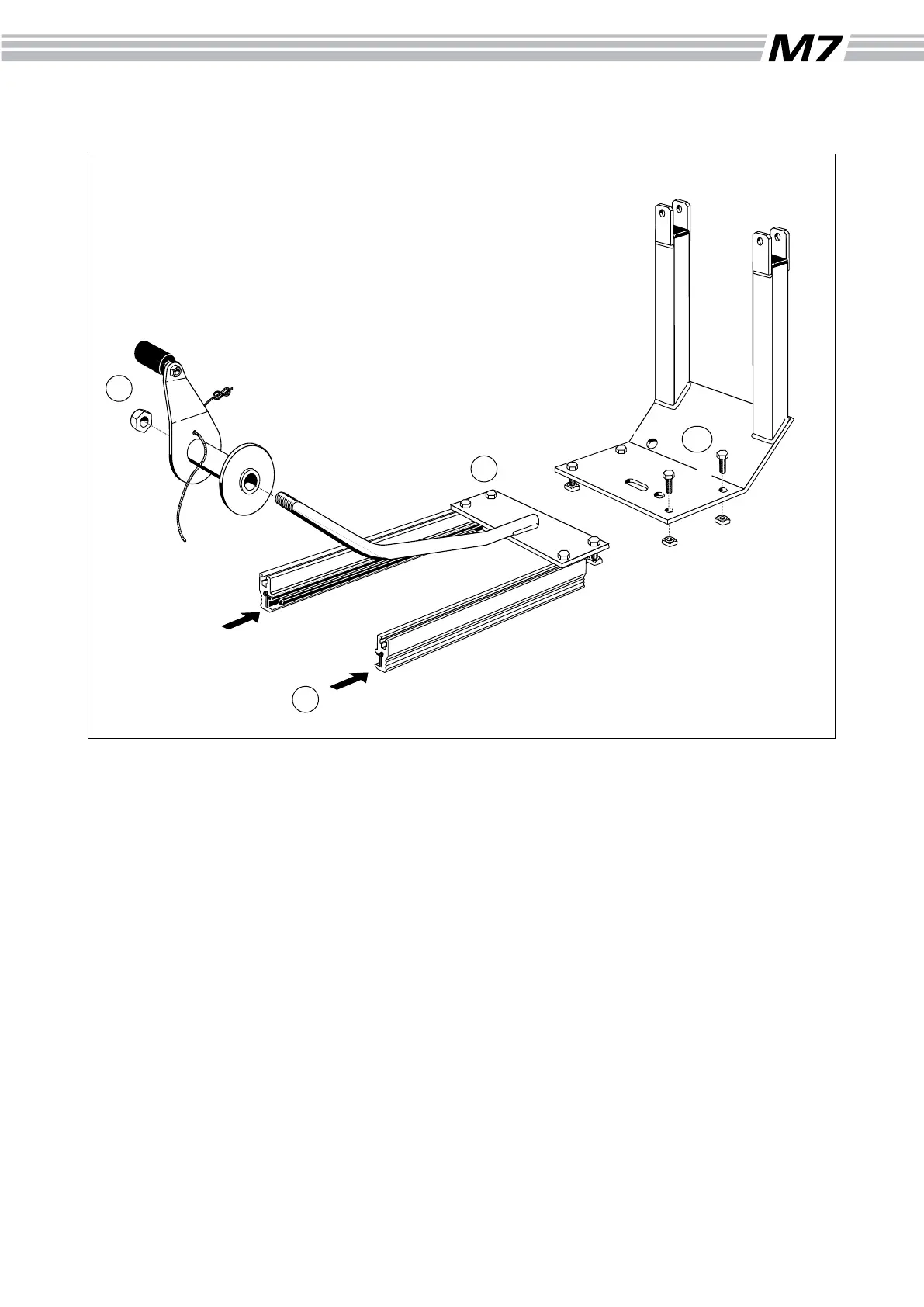

(26) Insert bolts through the
holes along the sides of both
the chainsaw bed (pylon) and
the spool holder plate (27). Turn
the square nuts a few times.
(8x M6x16 bolts, 8 x M6 square
nuts)
(28) Insert the square nuts
into the slide rail track, moving
the spool holder plate and the
chainsaw bed to opposite ends
of the slide rails. Tighten the
bolts.
28
29
Assembly: Saw Carriage
17
26
(29)
Thread the line spool over
the spool holder arm and tighten
the nut. (1 x M10 locking nut)
Part number Description
9999-000-1032 Spool with crank, compl.
4510-720-2800 Spool holder
4507-720-7402 Sliding block, aluminium
4510-720-2900 Pylon bracket
4510-723-2002 Feed line
4510-723-2904 Plastic slide, carriage
4507-001-2076 Screw bag # 76
27
