6. Using the Baby Monitor

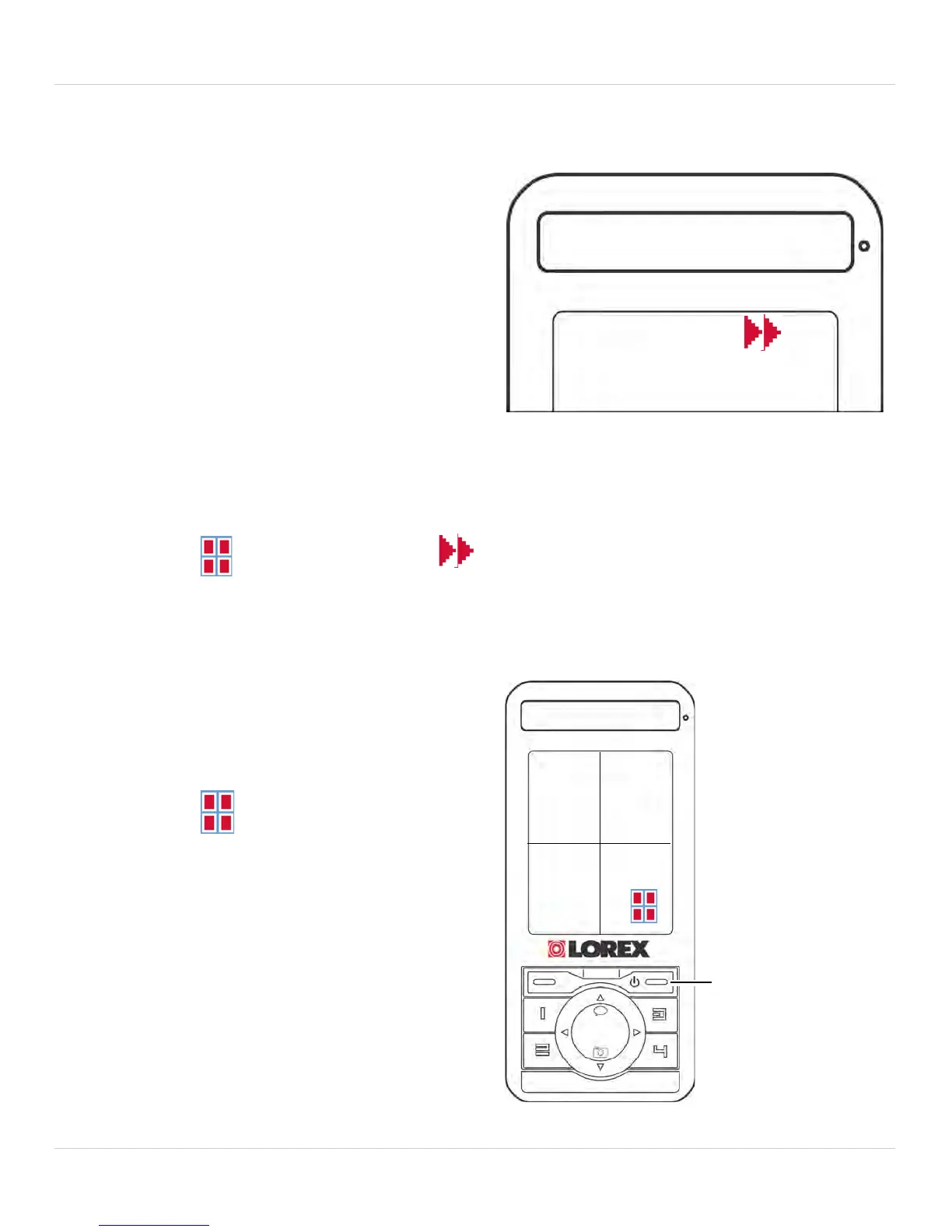

Scan Mode
Channel scanning mode requires 2
or more cameras. Channel scanning
mode automatically changes
channels every 8 seconds. This
allows you to monitor multiple
cameras in full screen view.
The monitor only scans for cameras
that are paired up and turned on.
To enable Scan Mode:
1. Press the button until the icon appears beside the channel
number.
Split Screen Mode
Split Screen Mode allows you to see
up to 4 cameras at the same time on
the monitor.
1. Press the button repeatedly
until you see a split screen.
• When viewing in Split Screen
mode, the audio sc
anning feature
transmits live audio from channels
1 - 4. Audio is played for 8 seconds
per channel, before changing to
the next channel. Use the
directional keys to manually select
the audio channel.
1
Scan Mode turned on
Press here to
switch viewing
modes

Lorex LW2003 Specifications

General Specifications

transmission frequency	ISM 2, 400~2, 482 MHz
transmission power	18 dBm
unobstructed effective range	150 m / 450 ft
spread spectrum	FHSS
modulation mode	GFSK
operating temperature	0-50ºC / 32-122ºF
operating humidity	Less than 90%

Camera Specifications

imaging sensor type	CMOS
picture total pixels	H:240, V:320
minimum illumination	0 Lux (IR on)
night video distance	7 m / 22 ft
view angle	H: 38º V: 50º
image resolution	240 x 320 up to 25 fps
consumption current (max.)	390 mA
power supply	5 V DC
dimensions (W x D x H)	66 x 95 x 115 mm / 2.6 x 3.8 x 4.6"
weight	0.25 kg / 0.5 lbs

Receiver Specifications

LCD screen type	2.4 “ TFT-LCD
effective pixels	H: 240, V:320
receiving sensitivity	<.81 dBm
consumption current (max.)	250 mA
power supply	5 V DC
dimensions (W x D x H)	48 x 17 x 117 mm / 1.9 x 0.7 x 4.6"
weight	0.14 kg / 0.3 lbs

Product Information

package dimensions (LW2003)	199 x 69 x 135 mm / 7.8 x 2.7 x 5.3"
package cube (LW2003)	0.0025 cbm / 0.09 cbf
package weight (LW2003)	0.7 kg / 1.5 lbs
package dimensions (LW2003F)	200 x 69 x 139 mm / 7.9 x 2.7 x 5.5"
package cube (LW2003F)	0.0025 cbm / 0.09 cbf
package weight (LW2003F)	0.7 kg / 1.5 lbs
