Lorex LW2003 User Manual

27

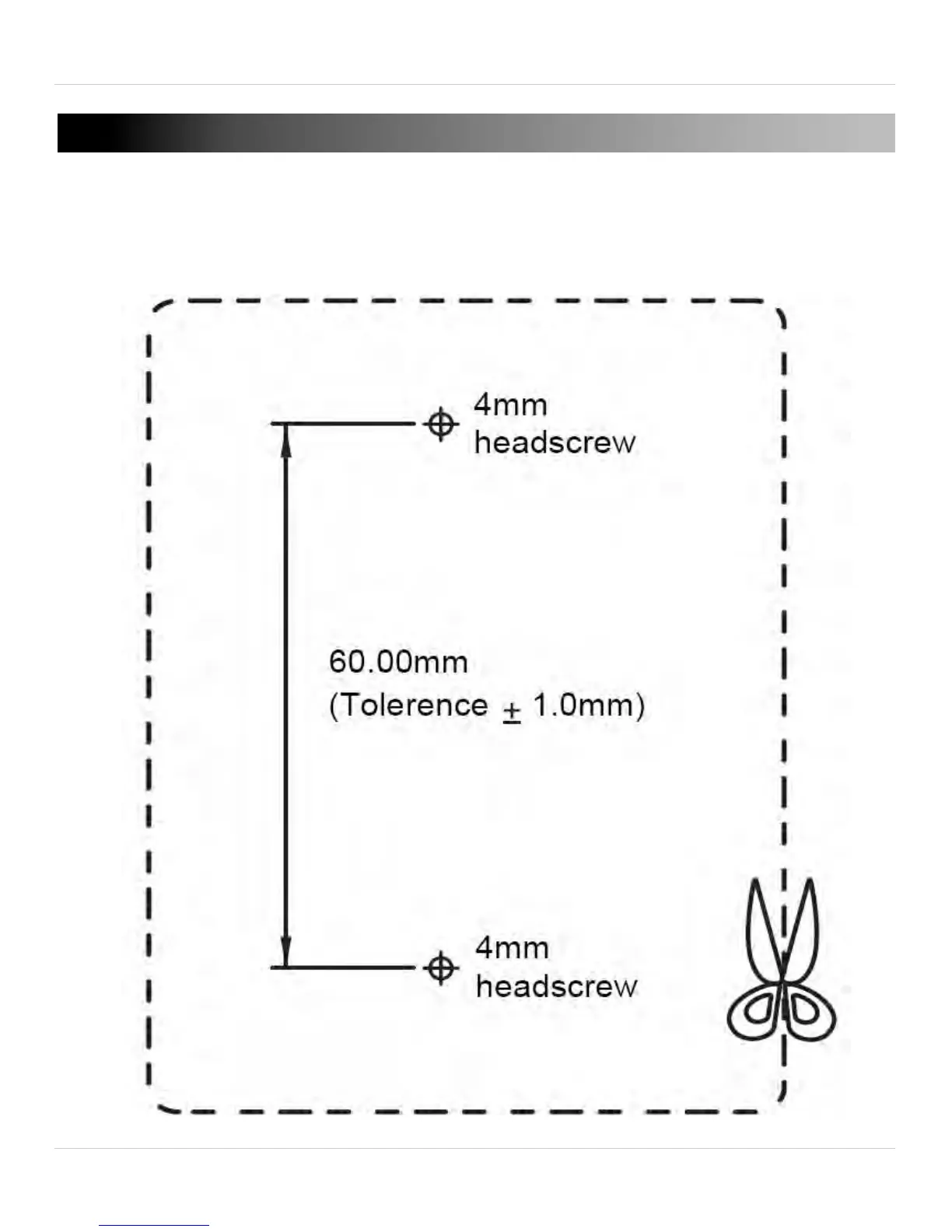

13. Wall Mounting Template
13. WALL MOUNTING TEMPLATE
1. Use the template below to mark the holes on the wall to mark the
proper places to drill the mounting screws.

Lorex LW2003 Specifications

General Specifications

transmission frequency	ISM 2, 400~2, 482 MHz
transmission power	18 dBm
unobstructed effective range	150 m / 450 ft
spread spectrum	FHSS
modulation mode	GFSK
operating temperature	0-50ºC / 32-122ºF
operating humidity	Less than 90%

Camera Specifications

imaging sensor type	CMOS
picture total pixels	H:240, V:320
minimum illumination	0 Lux (IR on)
night video distance	7 m / 22 ft
view angle	H: 38º V: 50º
image resolution	240 x 320 up to 25 fps
consumption current (max.)	390 mA
power supply	5 V DC
dimensions (W x D x H)	66 x 95 x 115 mm / 2.6 x 3.8 x 4.6"
weight	0.25 kg / 0.5 lbs

Receiver Specifications

LCD screen type	2.4 “ TFT-LCD
effective pixels	H: 240, V:320
receiving sensitivity	<.81 dBm
consumption current (max.)	250 mA
power supply	5 V DC
dimensions (W x D x H)	48 x 17 x 117 mm / 1.9 x 0.7 x 4.6"
weight	0.14 kg / 0.3 lbs

Product Information

package dimensions (LW2003)	199 x 69 x 135 mm / 7.8 x 2.7 x 5.3"
package cube (LW2003)	0.0025 cbm / 0.09 cbf
package weight (LW2003)	0.7 kg / 1.5 lbs
package dimensions (LW2003F)	200 x 69 x 139 mm / 7.9 x 2.7 x 5.5"
package cube (LW2003F)	0.0025 cbm / 0.09 cbf
package weight (LW2003F)	0.7 kg / 1.5 lbs
