Lorex LW2003 User Manual

9

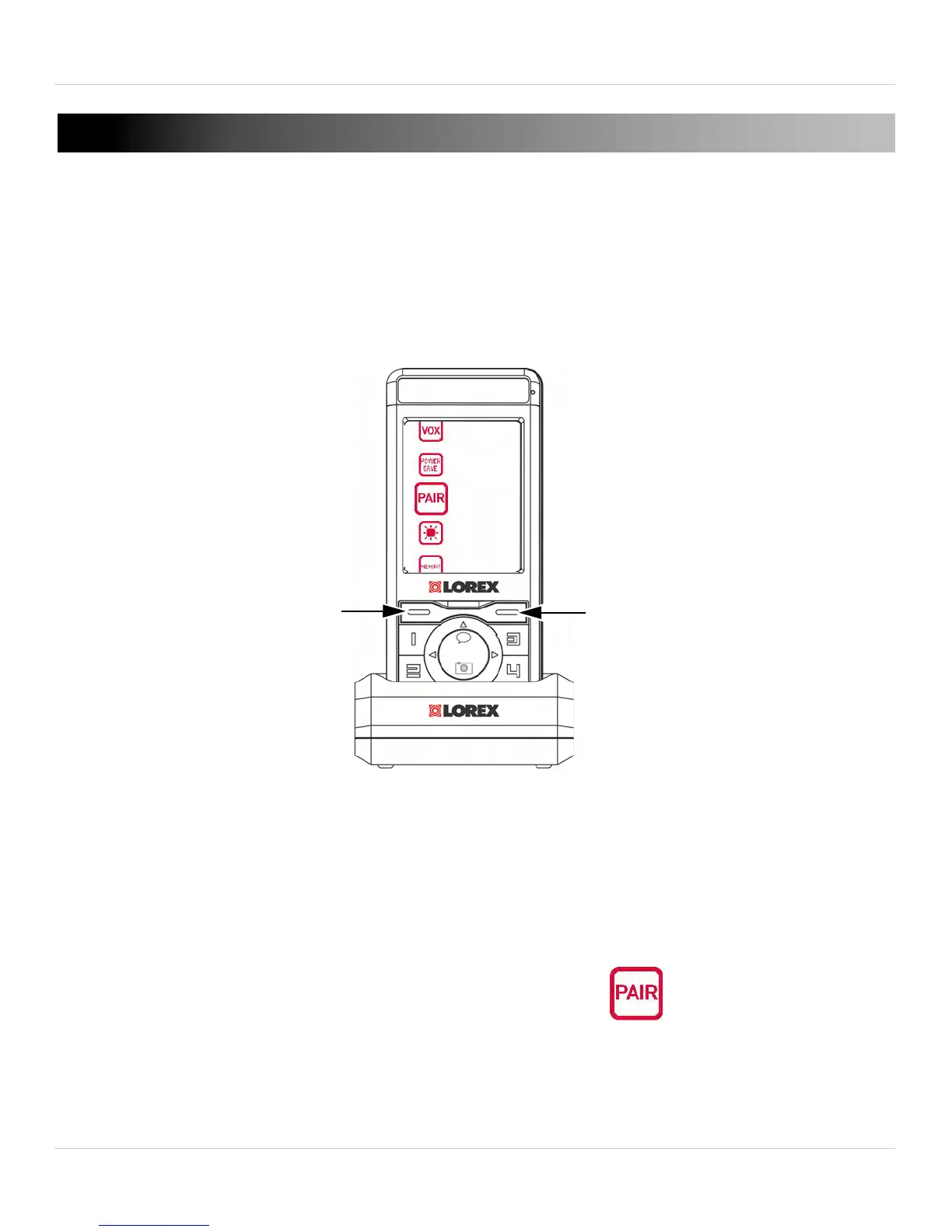

4. Pairing Up Cameras
4. PAIRING UP CAMERAS
The camera(s) included with the monitor have already been paired up
with the monitor. If for any reason your monitor and camera are not
paired up, OR you purchased additional add-on cameras (model model #
LW2003AC1), follow the steps below.
To pair a camera to your monitor:
1. Make sure the camera that you wish t
o pair up is turned off.
2. Select the channel you wish to pair up the camera to by pressing 1, 2,
3 or 4 on the monit
or.
3. Press the Menu button on the monitor.
4. Press
or  on the monitor until the icon is selected
(icon size increases)
5. Press the OK button.
Menu button
OK button
OK

Lorex LW2003 Specifications

General Specifications

transmission frequency	ISM 2, 400~2, 482 MHz
transmission power	18 dBm
unobstructed effective range	150 m / 450 ft
spread spectrum	FHSS
modulation mode	GFSK
operating temperature	0-50ºC / 32-122ºF
operating humidity	Less than 90%

Camera Specifications

imaging sensor type	CMOS
picture total pixels	H:240, V:320
minimum illumination	0 Lux (IR on)
night video distance	7 m / 22 ft
view angle	H: 38º V: 50º
image resolution	240 x 320 up to 25 fps
consumption current (max.)	390 mA
power supply	5 V DC
dimensions (W x D x H)	66 x 95 x 115 mm / 2.6 x 3.8 x 4.6"
weight	0.25 kg / 0.5 lbs

Receiver Specifications

LCD screen type	2.4 “ TFT-LCD
effective pixels	H: 240, V:320
receiving sensitivity	<.81 dBm
consumption current (max.)	250 mA
power supply	5 V DC
dimensions (W x D x H)	48 x 17 x 117 mm / 1.9 x 0.7 x 4.6"
weight	0.14 kg / 0.3 lbs

Product Information

package dimensions (LW2003)	199 x 69 x 135 mm / 7.8 x 2.7 x 5.3"
package cube (LW2003)	0.0025 cbm / 0.09 cbf
package weight (LW2003)	0.7 kg / 1.5 lbs
package dimensions (LW2003F)	200 x 69 x 139 mm / 7.9 x 2.7 x 5.5"
package cube (LW2003F)	0.0025 cbm / 0.09 cbf
package weight (LW2003F)	0.7 kg / 1.5 lbs
