3.14 External Structure of Tractor
The external structure of tractors mainly includes an engine hood, a cab, a mudguard, an instrument panel, a
floor and accessories.
3.14.1 Engine Hood (usage of special tools for opening the hood)
The engine hood is of gracefully streamlined sheet metal structure. To open the hood, insert the
special hood opening pull rod and screw it in clockwise. Pull the locking handle on the left side of the
lower coaming of the hood upward. Then the hood will open automatically under the action of the
gas spring. Pull down the hood to a specific position. Then the hood can close and lock itself
automatically. Then rotate counterclockwise to remove the special pull rod, and keep it properly.

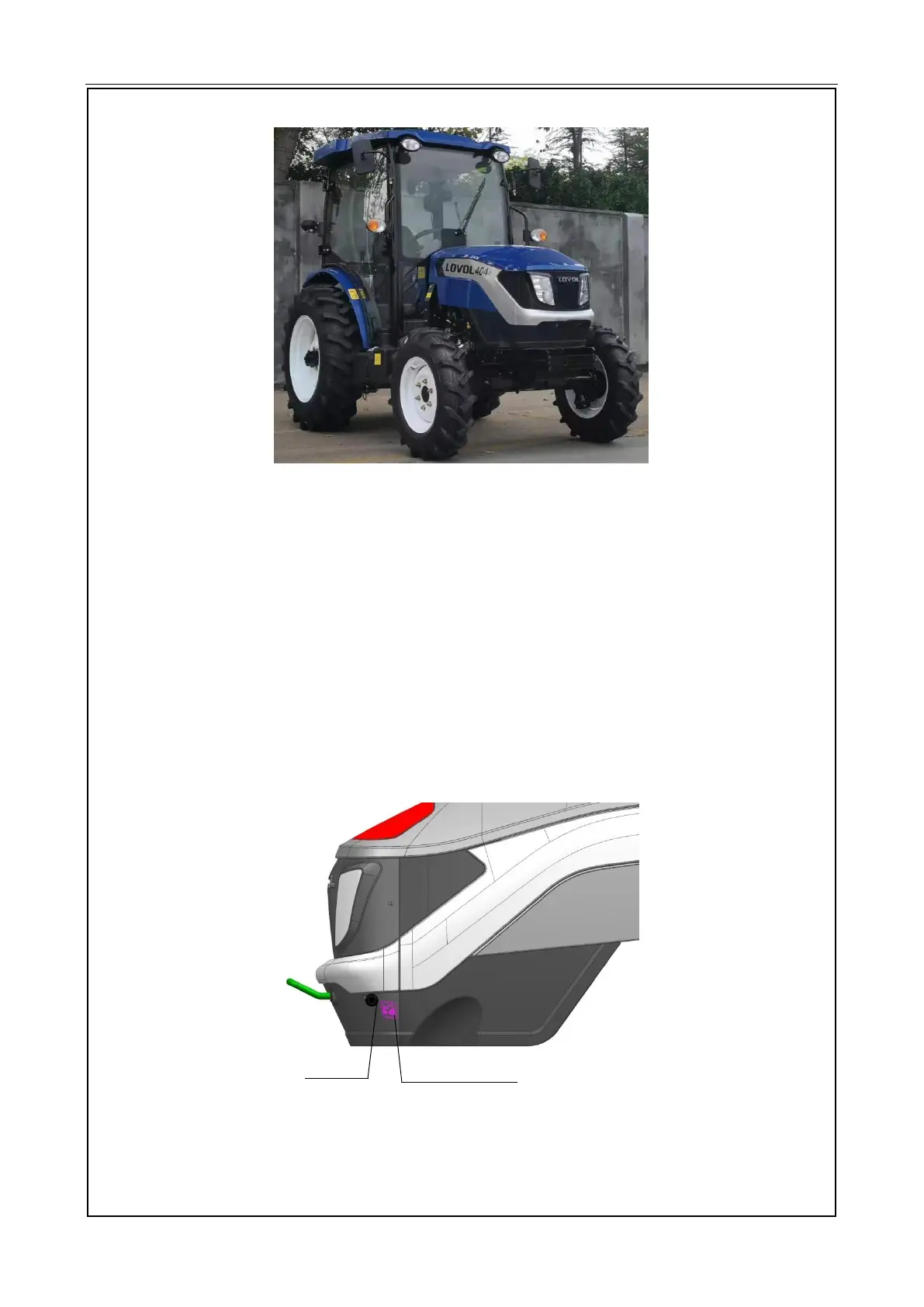

Special pull rod Hood opening sign
3.14.2 Dashboard
The electric control switch and combination instrument of the tractor are mounted on the
instrument panel. The instrument panel is not only the installation position of the control switch,
