Operating Instructions
3.15 Use of Tractor Working Device
The semi-split hydraulic lifting system is adopted for TE series tractors and provided with two
adjustment modes: position adjustment and height adjustment. The lifting and lowering of farm

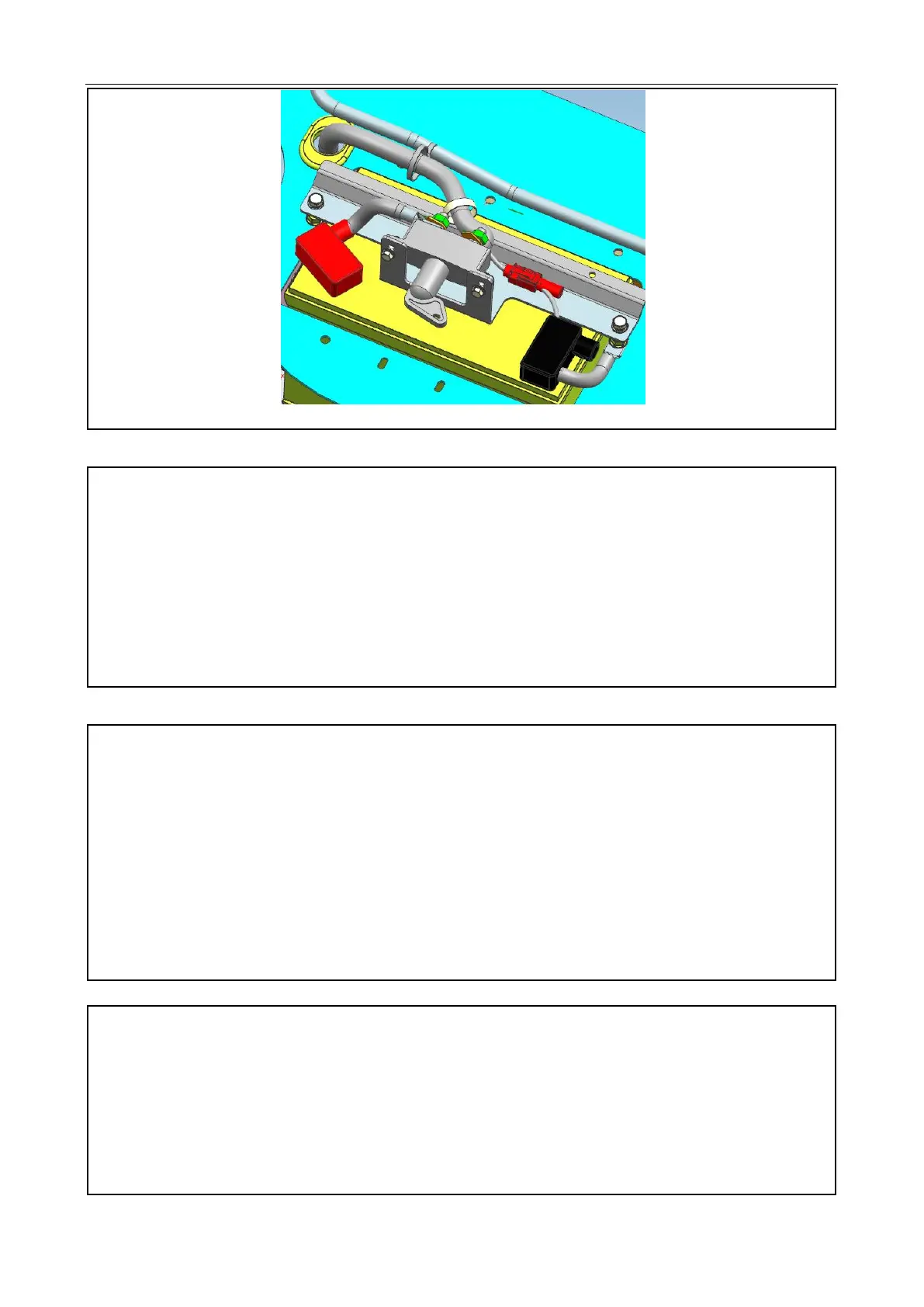

implements are achieved by operating the control handle of the distributor. Press the handle forward to
lower the farm implements; Pull the handle backward to lift the farm implements. Refer to "Adjustment of
Hydraulic Lifting System" for the adjustment of the highest and lowest lifting positions of farm
implements.
3.15.1 Level Adjustment
The position adjustment is used when the farm implements without land wheels are hook by the tractor for
farming. The tillage depth of farm implements is determined by the position of the lowering stopper on the
return push rod. When used, the lowering stopper is fixed to the preselected appropriate position, so that the
farm implements can fall to the required tillage depth. At this time, the stop pin touches the lowering stopper,
the handle is pushed back to the neutral position, and the farm implements stop falling and will work at this
tillage depth (refer to "Adjustment of Hydraulic Lifting System" for the adjustment method).
3.15.2 Height Adjustment
The height adjustment is used when the farm implements with land wheels are hook by the tractor for farming.
The tillage depth of farm implements is controlled by adjusting the height from the land wheel to the ploughing
sole. The lowering stopper shall be adjusted to the lo lowest lifting position when used, and the handle is still in
the lowering position when the farm implements are lowered to the required tillage depth (refer to "Adjustment
of Hydraulic Lifting System" for the adjustment method). Farm implements will work at the tillage depth.
