Lovol TE Series - Tractor Control Mechanism and Instrument

Operating Instructions
3.1 Product Description
This User Manual describes the use, technical maintenance, adjustment and troubleshooting of LOVO L TE and
ARBOS TE series wheeled tractors. TE series wheeled tractors include TE4043C, TE4043R and ARBOS2040.
The LOVOL TE, ARBOS TE series wheeled tractor is a kind of multi-purpose medium-sized agricultural
wheeled tractor, which is featured by compact structure, convenient operation, flexible steering, large traction
force, wide application and convenient maintenance.
3.2 Tractor control mechanism and instrument
3.2.1 Tractor control mechanism

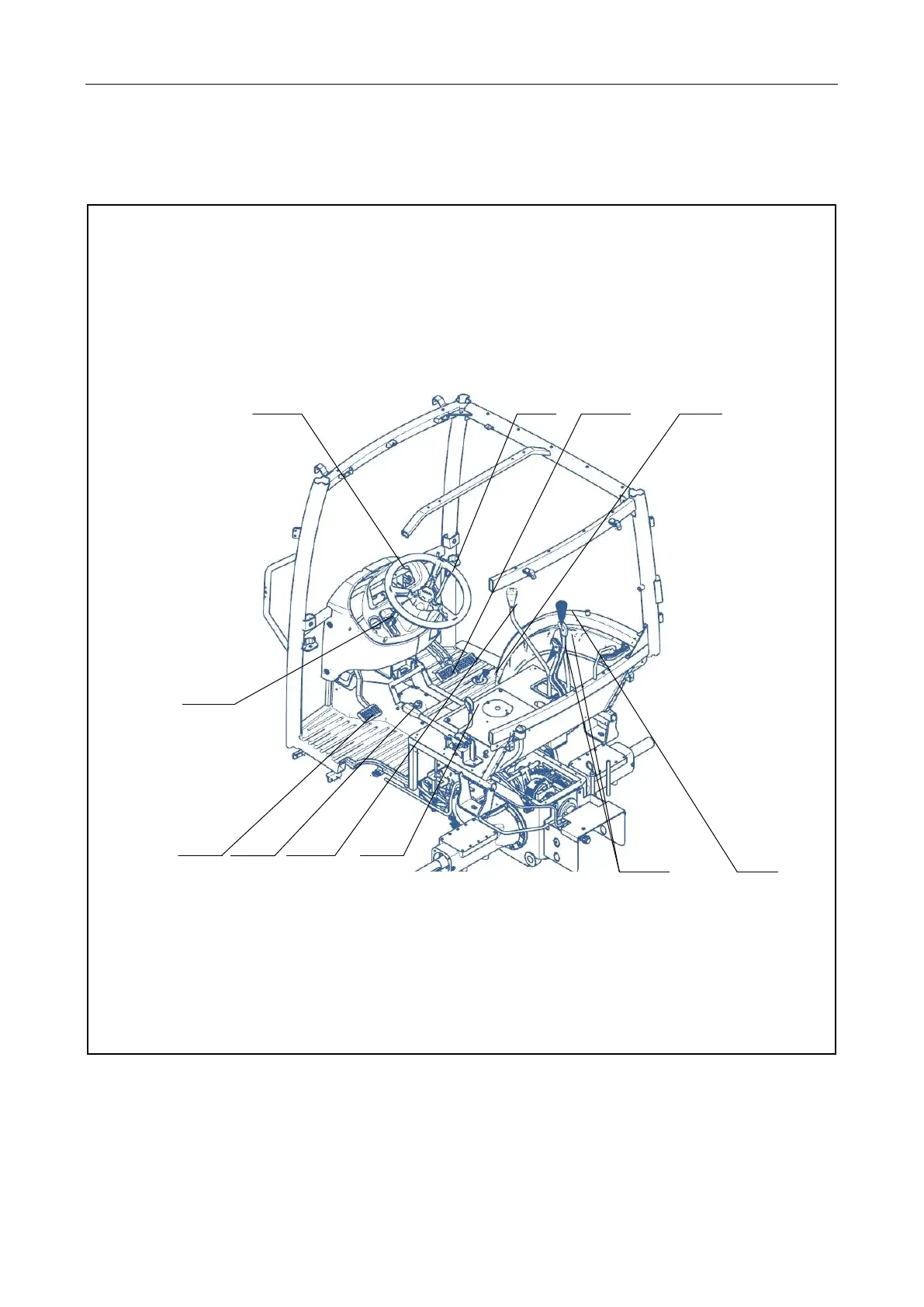

Fig. 3-1 Tractor Control Mechanism
1- Shuttle shift lever 2- Clutch pedal 3- Hand brake 4- Main shift handle 5-PTO shift handle 6-
Multi-way valve handle 7- Auxiliary shift handle 8- Hand accelerator operation 9-
Foot braking maneuver 10- Foot pedal accelerator operation 11- Steering wheel
