Operating Instructions
3.2.2 Instrument and Switch

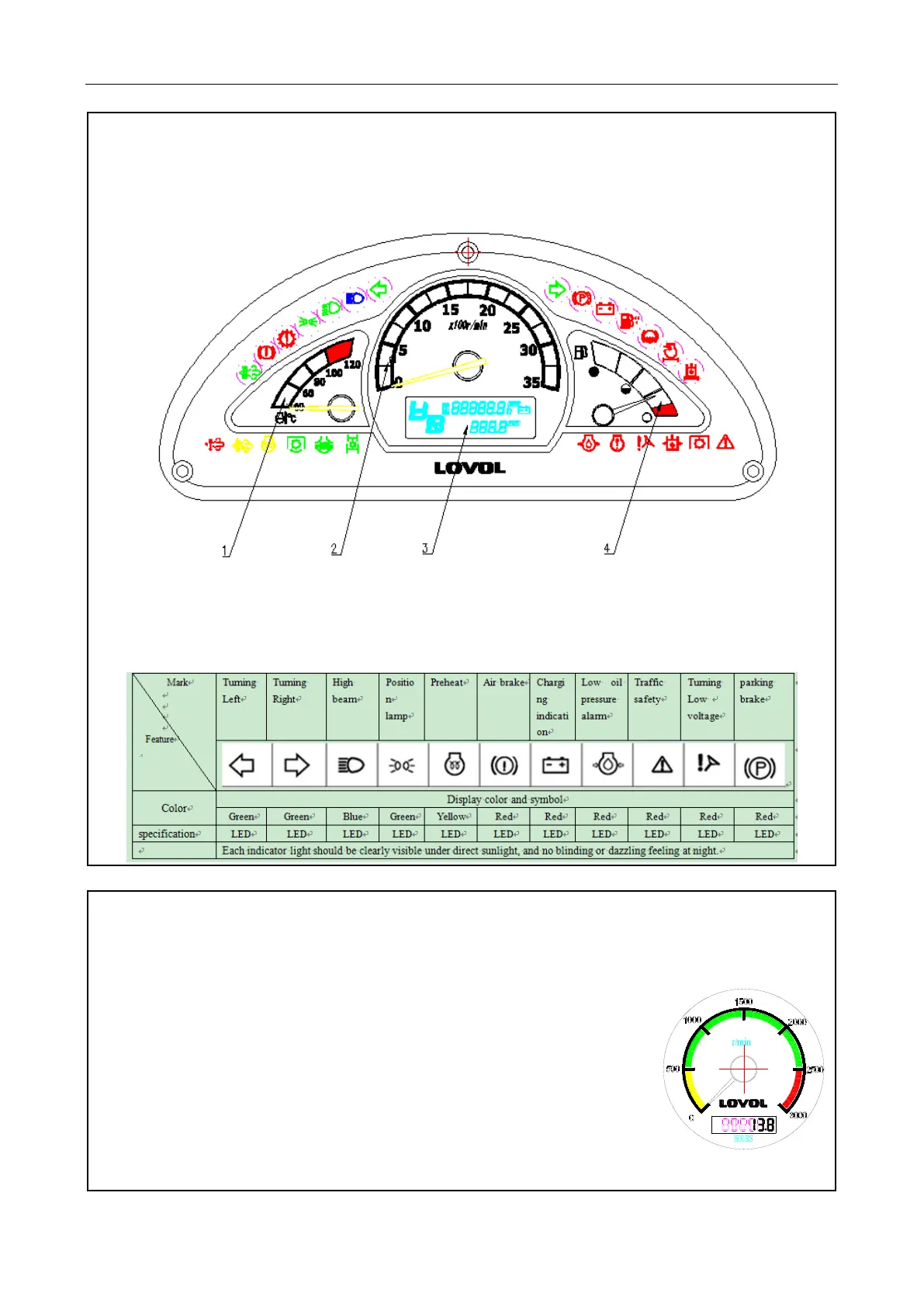

Combination instrument
1. Water temperature gauge; 2. Tachometer; 3. Timer; 4. Fuel gauge;
Fig.3-2 Combination Instrument
The meaning of each indicator light of instrument, the specification and color of the indicator light
Engine tachometer
After the engine is started, the indicated value refers to the working speed of the engine.
The value displayed in the box refers to the working hours of the engine.
Fig. 3-5 Engine Tachometer
17
