Operating Instructions

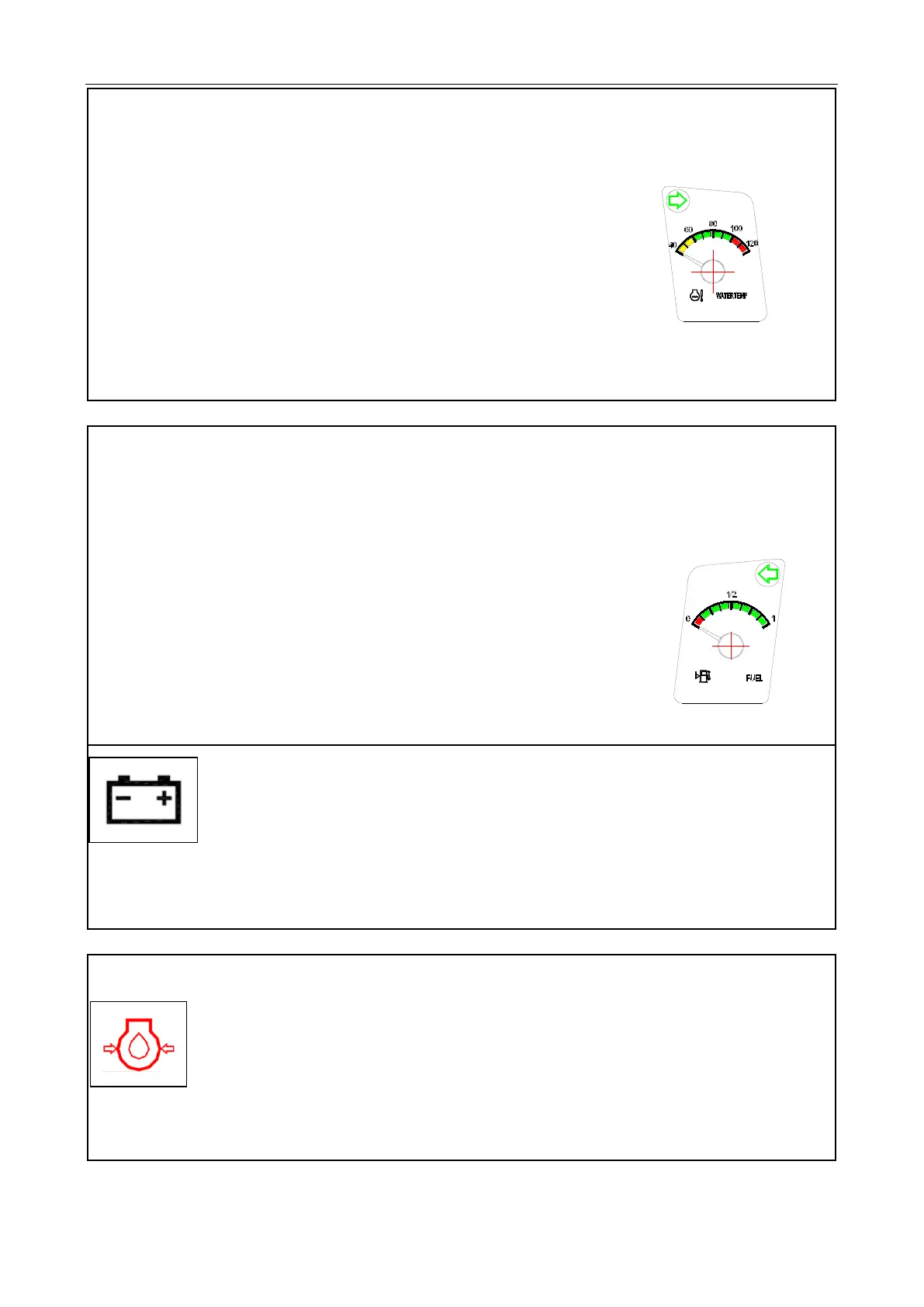

Coolant temperature gauge
Mark the engine coolant temperature value with scales, the pointer moves from left to right, where the red
area is the high temperature area.
Fig. 3-6 Coolant Temperature Meter
Fuel gauge
The fuel gauge indicates the amount of oil in the fuel tank with scales. The pointer points to the rightmost
position; Indicates that the fuel tank is full of fuel; if the pointer points to the red area on the left, indicates that
there is insufficient oil in the oil tank, and it shall be refilled immediately.
Fig. 3-7 Fuel Gauge
Charging indicator lamp (red)
When the power supply is turned on and the engine is not started, the light is on; if the light is
not on, the light bulb or line fault shall be inspected and repaired; the light shall go out after
the engine starts, indicating that the battery is charged normally. If the indicator lamp
does not go out, the generator or voltage regulator and circuit shall be overhauled.
Engine oil pressure alarm lamp (Red)
When the key is in the ignition position, the light is on; After the engine is started, the light
shall go out, indicating that the lubrication system pressure is normal. When the engine is
idling, the light may light up, because the pressure of the lubrication system is low during
idling, which is a normal phenomenon. If the light lights up when the engine is at normal
working speed, machine shall be stopped immediately for inspection.
Fig. 3-9 Engine Oil Pressure Alarm Lamp
Fig. 3-8 Charging
Indicator Lamp
