Maintenance Instructions
5.12 Maintenance of Oil Filter
The oil filter is located in the middle on the right side
of the engine, and the engine should be replaced every
200h of operation according to the technical requirements.
The oil filter shall be replaced as a whole, and it must be
tightened during installation. The detailed maintenance
shall be carried out according to the manufacturer's
instructions.

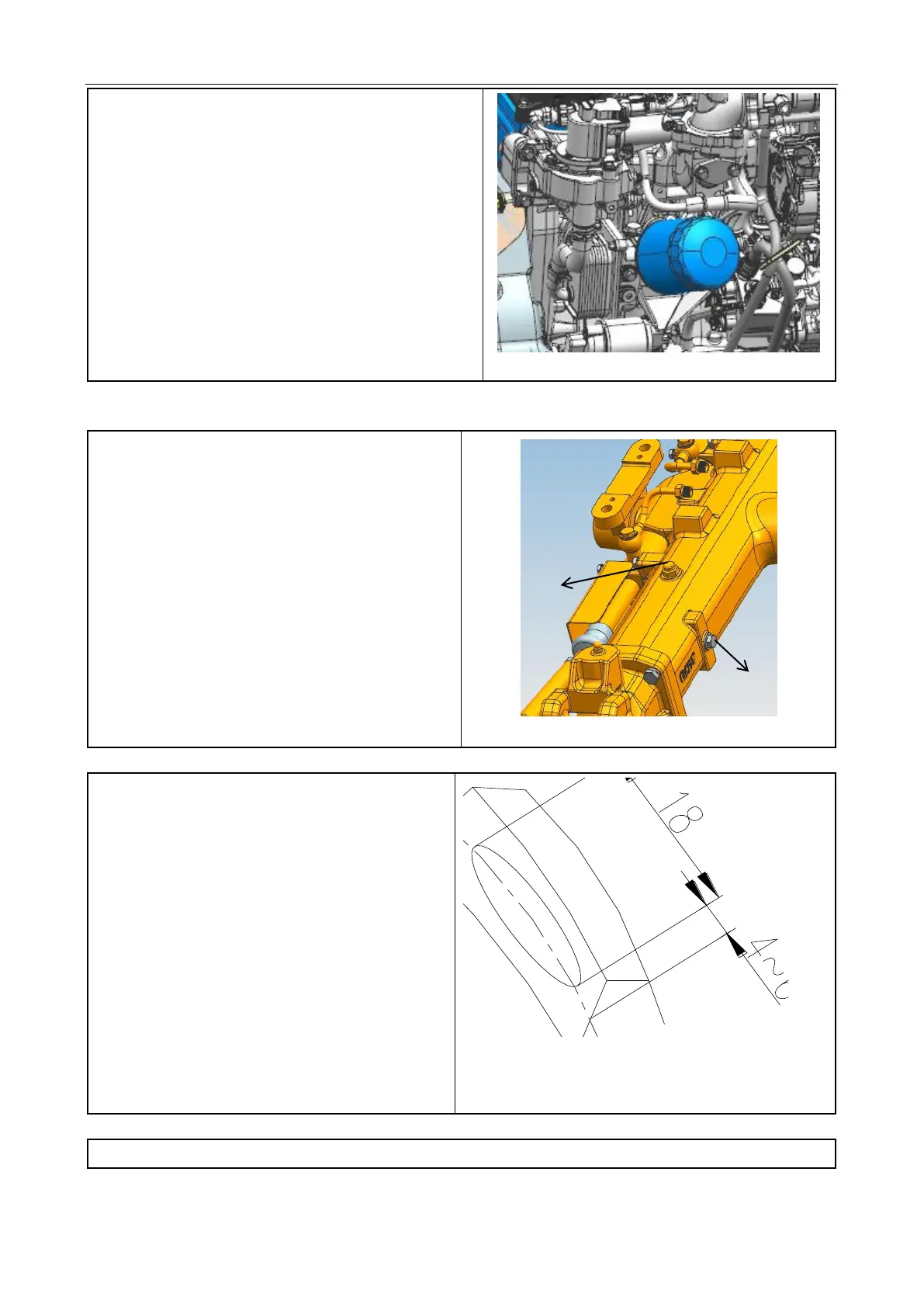

Fig. 5-17 Maintenance of Oil Filter
5.13 Inspection of Front Drive Oil Level
When people are checking the oil level of the
front drive housing, unscrew the oil dipstick fitting
"A". The oil level should be within the scale range of
the oil dipstick, otherwise, add oil. When people are
replacing the oil, unscrew the oil drain plug of central
transmission and the left and right end transmissions.
Drain all the dirty oil, then tighten the plugs, and add
new oil from "A". After a period of rest, oil leaks out
from "B", indicating that it is full.
Fig. 5-18 Inspection of front drive oil level
5.14 Maintenance of Transmission System
Pull out the oil dipstick 3 located on the right side
of the main gear shift lever (as shown in Fig. 4-21),
wipe it clean, and then insert the dipstick. If the oil
level is lower than the lower scribed line of the
dipstick, add oil to make the oil level between the
upper and lower scribed lines (it should be measured 5
min after refueling). Remove the oil drain plug at the
bottom of the transmission case when people are
replacing lubrication oil. Drain the dirty oil, then
tighten the oil drain plug and add new oil.
Fig. 5-19 Maintenance of Transmission System
1. Oil filler; 2. Oil filler cap
3. Oil dipstick; 4. Oil dipstick holder
Note: Before checking the oil level, park the tractor on the horizontal ground, turn off the engine.
