Lovol TE Series - Storage

Maintenance Instructions
S/N
Mark
description
Mark of small spiral
bevel gear in forward
gear
Mark of small spiral
bevel gear in reverse
gear

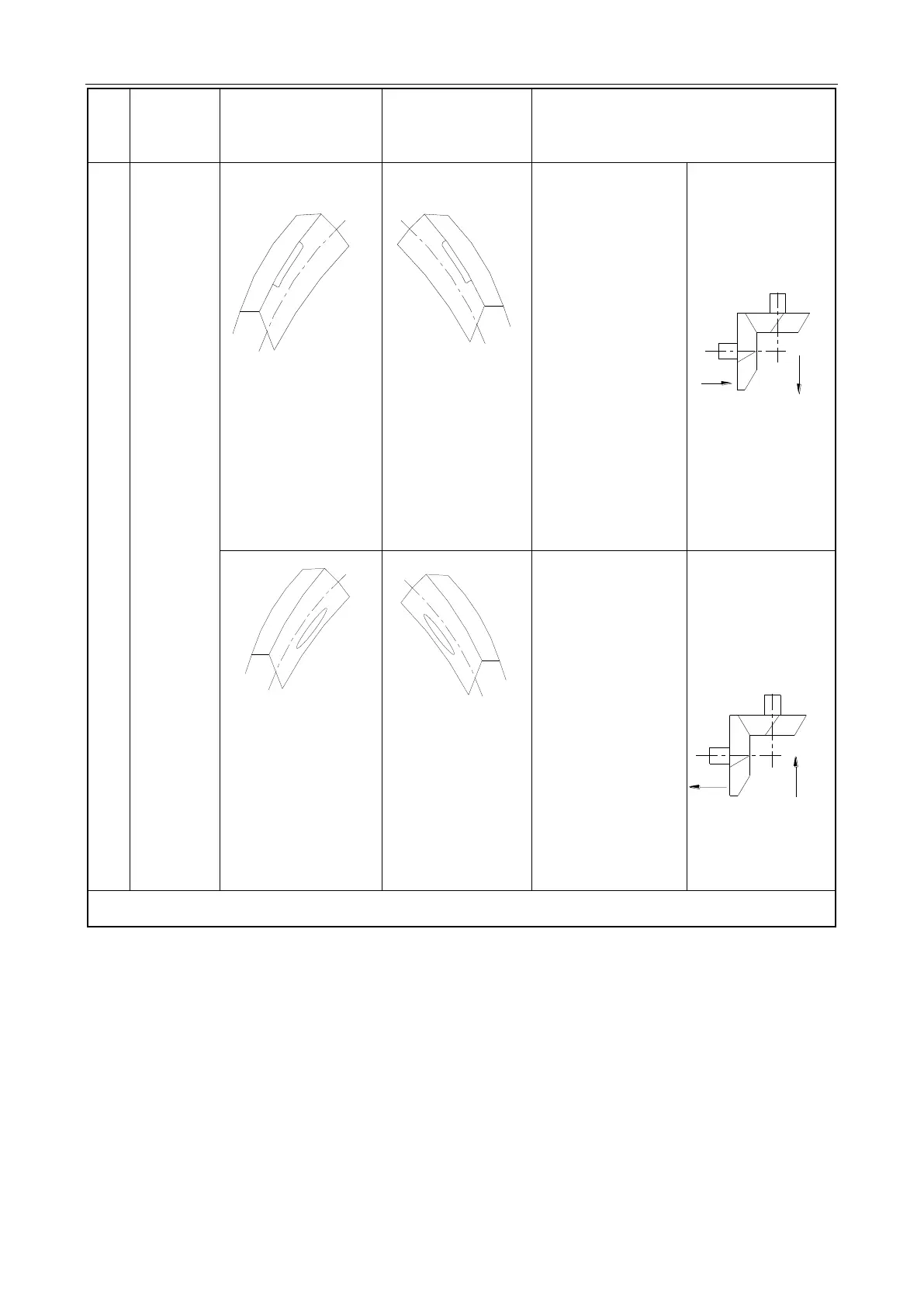

Adjustment description and illustration
(1) Reduce the
adjusting washer at
the front bearing
sleeve of the second
shaft to make the
small spiral bevel
gear move
backward;
(2) Reduce the
adjusting washer at
the left bearing
sleeve and add it to
the right side
accordingly, so that
the big bevel gear
moves to the right.
(1) Add the adjusting
washer at the front
bearing sleeve of the
second shaft to make
the small spiral bevel
gear move forward;
(2) Reduce the
adjusting washer at
the right bearing
sleeve and add it to
the left side
accordingly, so that
the large bevel gear
moves to the left.
Note: The straight arrow indicates the moving direction of the gear.
