WM 67971b 09/2017
WM 100 TD and WM 100 TH EN 11

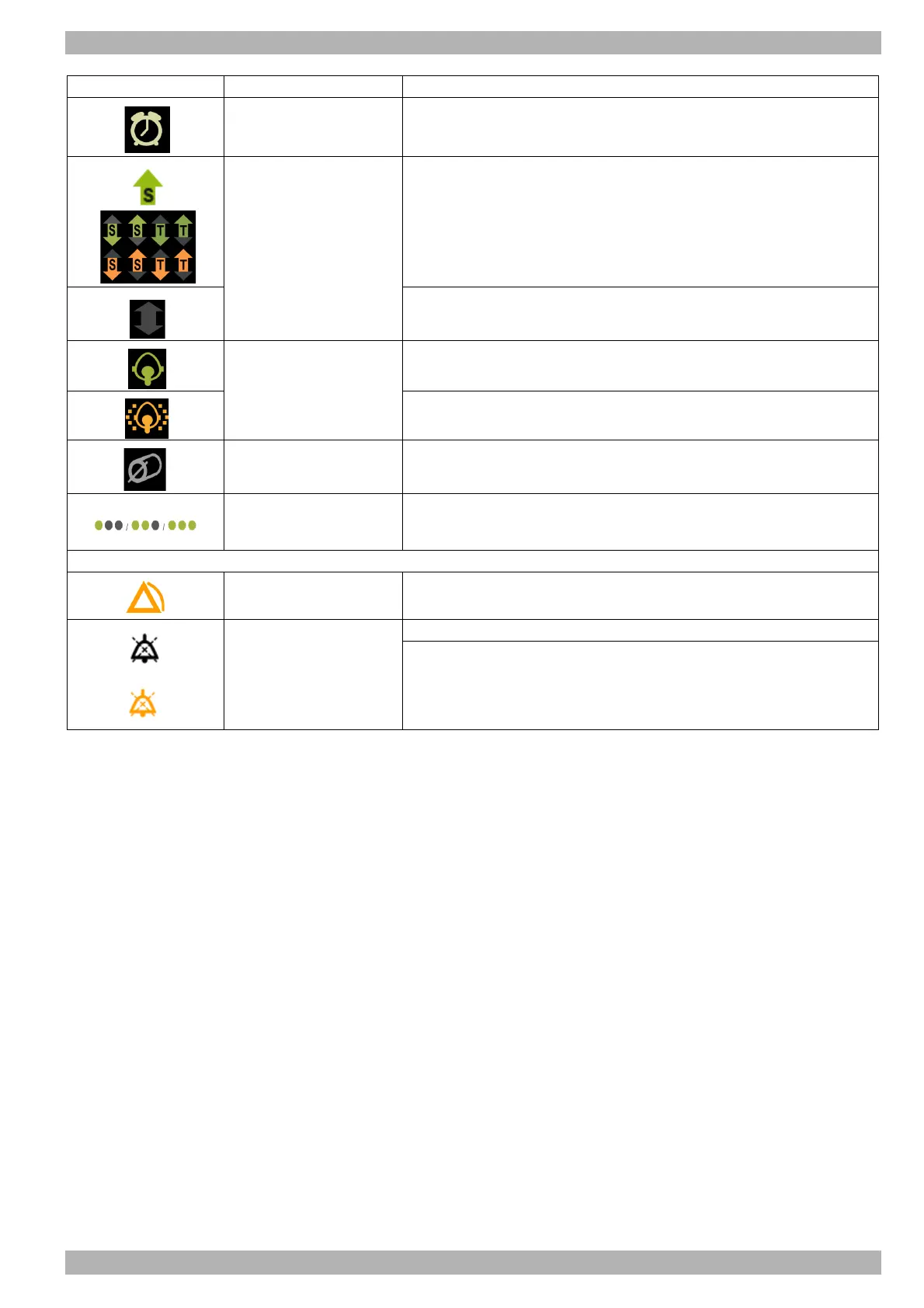

2.3 Symbols on the display
Alarm clock symbol
Alarm clock is set.
If no alarm clock symbol is shown: the alarm clock is off.
Respiration status symbol
Displays the respiration status:
S=spontaneous
T=timed
Arrow pointing upward: Inspiration
Arrow pointing downward: Expiration
Apnea
Mask status symbol with leak
indicator symbol
Mask position is good, no leaks
Mask is not well positioned, considerable leaks, the efficacy of the therapy is not
guaranteed
Hose diameter symbol Indicates the diameter of the hose in mm.
Menu level symbol
Shows the menu level that you are currently in:
The more green dots, the deeper you are in the menu structure.
Alarm window
Alarm symbol Low-priority alarm triggered.
(Black symbol)
Mute symbol
(Orange symbol)
Indicates that the acoustic signal for an alarm can be muted.
Acoustic signal for alarm is muted.
Symbol Designation Description
