WM 67971b 09/2017
WM 100 TD and WM 100 TH EN 43
7.3 Closing the therapy device
7.3 Closing the therapy device
1. Place the front of the housing 3 on the top edge of the fan box.
Note: The recesses must face downwards and the display 20
backwards.
2. Connect the fan connector to connection X200.
3. Connect the connection cable of the power supply unit 4 to
connection X800 on the mainboard.

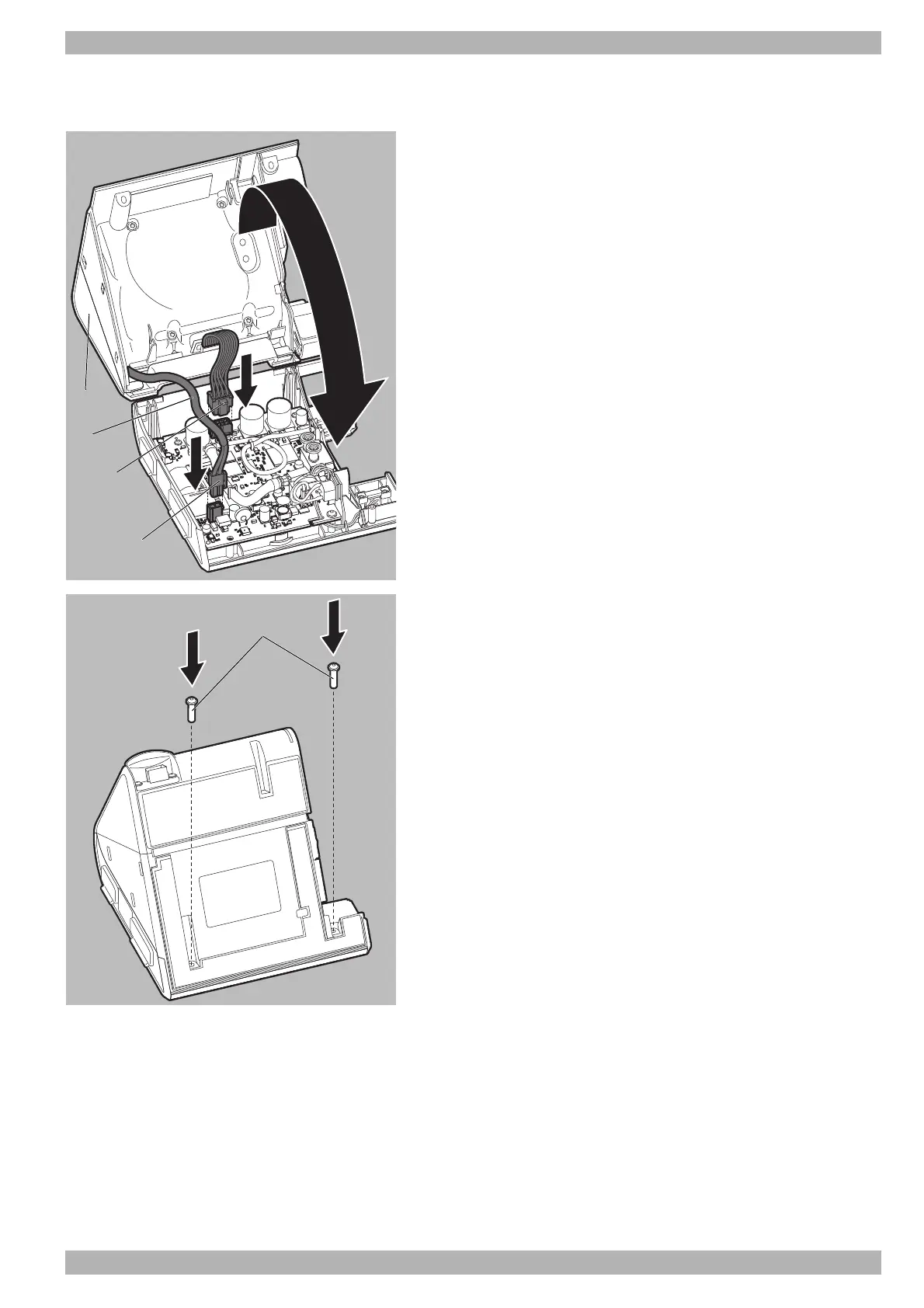

4. Fold the back of the housing 1 down into place.
Note:
• Insert the connection cable of the power supply unit 4 into the
recess provided.
• Hook the recesses into the fan box correctly.
5. Press the connection cable of the power supply unit 4 down gently
(approx. 90°).
6. Insert and tighten 2 screws 22.
