7 Repairs

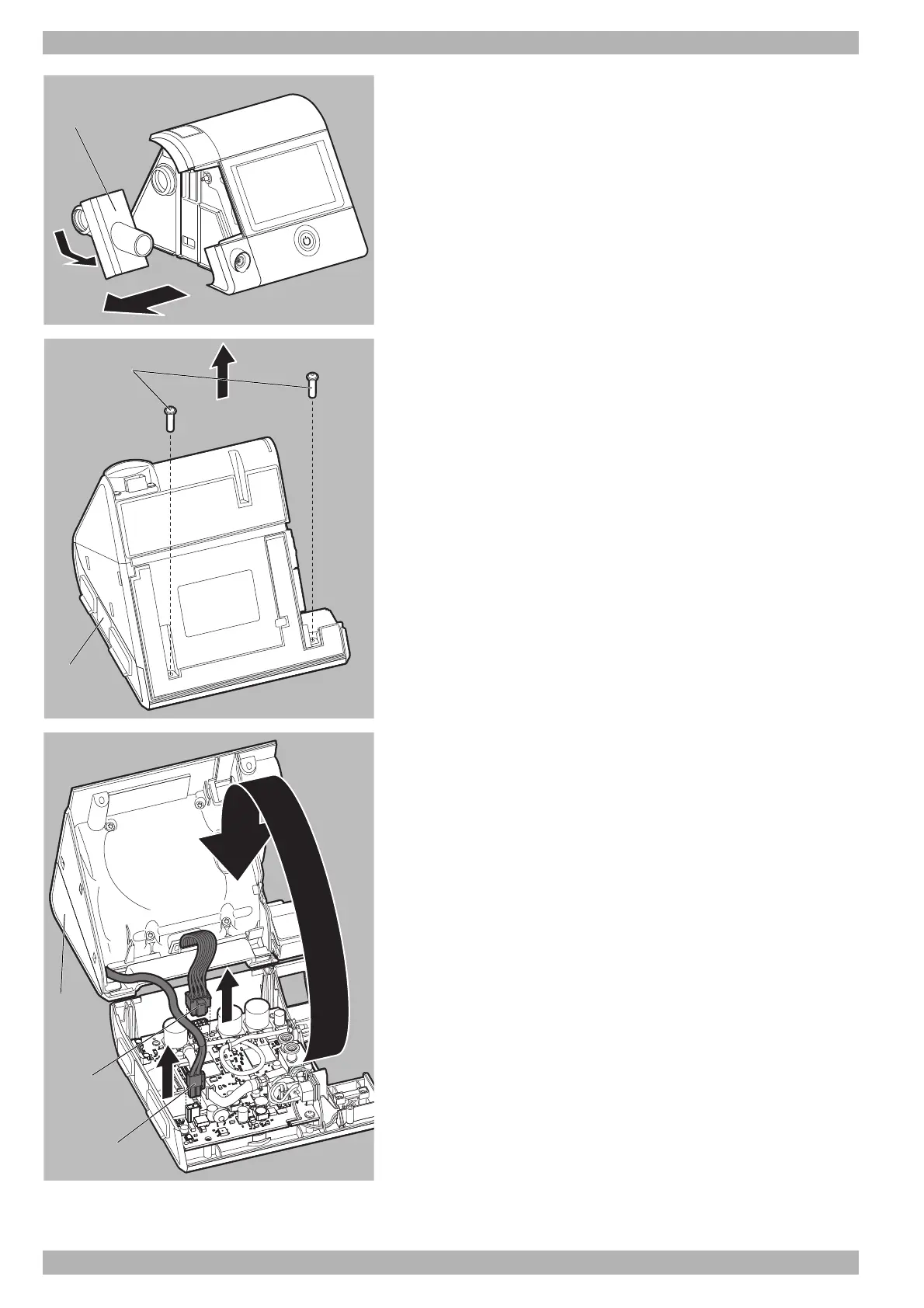

2. Pull off the device outlet 60.
3. Place the therapy device on its front 3 on a table, and unscrew the
2 screws 22.
4. Fold up the back of the housing 1 and place it on the table carefully.
5. Undo the connections X800 and X200.
51
22
3
1
X800
X200
Back
Forward
