12 EN WM 100 TD and WM 100 TH
WM 67971b 09/2017
2 Product description

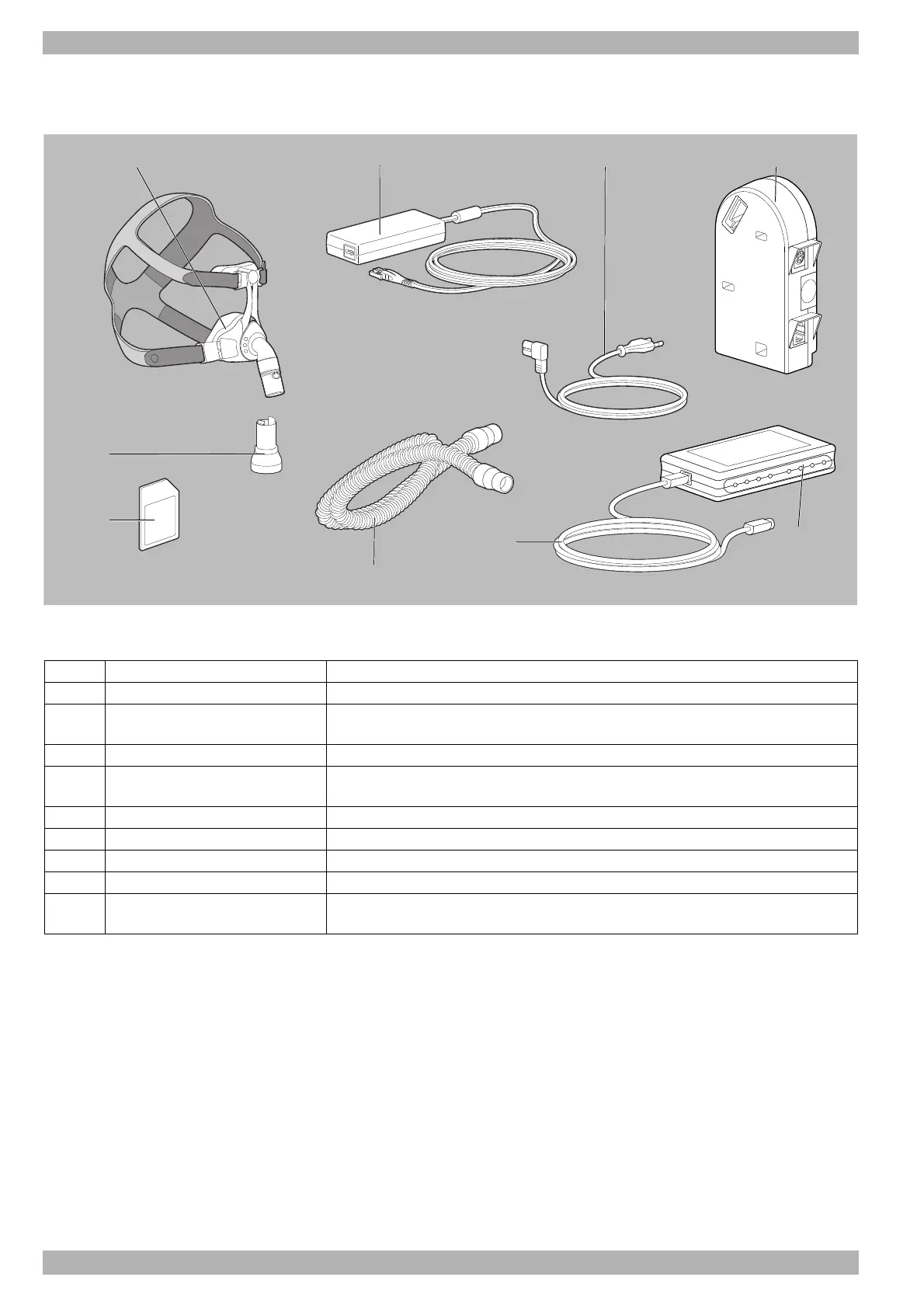

2.4 Components
2-5 Components
No. Designation Description
1 Respiratory mask Supplies the respiratory air to the patient.
2
Power supply unit with connection
cable
Supplies power to the device.
Connects the power supply unit to the therapy device.
3 Power supply cable Connects the power supply unit to the power socket.
4 prismaCONNECT module
Creates the connection between the therapy device and PC and between the therapy device
and prismaPSG module.
5 prismaPSG module Used to convert digital signals from the therapy device into analog data.
6 PSG connection cable Connects the therapy device to the prismaPSG module.
7 Breathing tube with 19 mm diameter Connects the therapy device to the respiratory mask.
8 SD card Records therapy data.
9 Exhalation system
If the mask does not feature an integrated expiratory system, the exhaled air escapes here
during the therapy.
