6 EN WM 100 TD and WM 100 TH
WM 67971b 09/2017
2 Product description
2 Product description

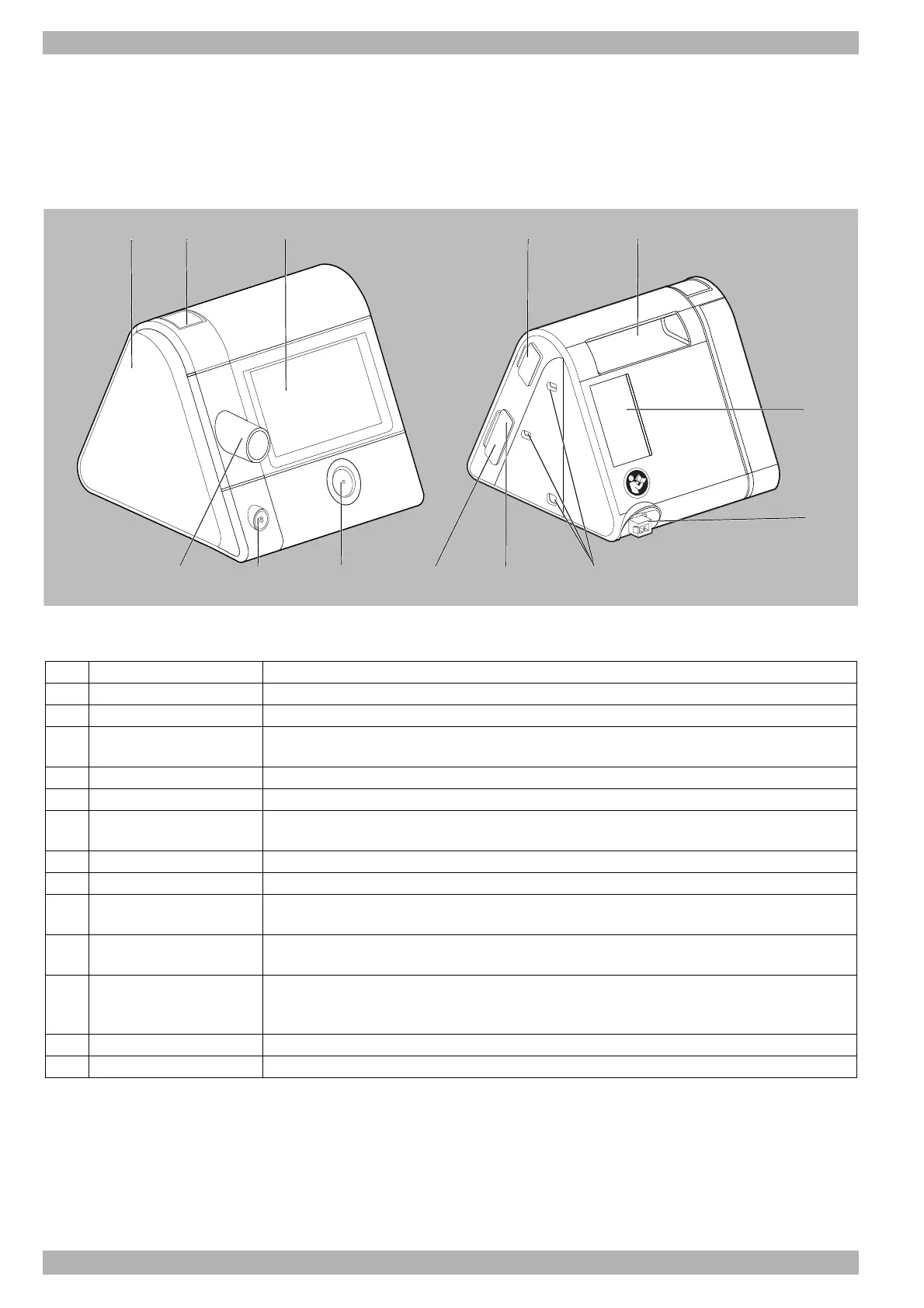

2.1 Therapy device overview
2-1 Therapy device
No.
Designation Description
1 Cover Covers the humidifier connection when no respiratory air humidifier is connected.
2 Unlocking button Allows the cover to be removed for connecting the humidifier prismaAQUA.
3 Display
Allows operation of the therapy device and the respiratory air humidifier.
Displays settings and current values.
4 System interface Connects the therapy device to modules.
5 Handle Allows lifting and transporting of the therapy device.
6
Filter compartment in suction
section
Houses the air filter and, where applicable, the pollen filter. The respiratory air is sucked in here and the
dust particles are filtered out.
7 Power input Connects the therapy device to the power supply unit.
8 Mounting holes For attaching and securing a module to the therapy device.
9 SD card slot
For inserting an SD card. The symbol on the display indicates the communication between the SD card and
the therapy device.
10 Micro USB port
Used for point-to-point connection with a PC on which prismaTS is installed. Allows settings to be
changed on the therapy device and data to be exported.
11 On/Off button
Switches the therapy device on and off.
Switches the therapy device to standby mode.
Starts and stops the therapy.
12 Hose heater connection Electrical power supply connection for a heatable hose (only applies to devices as of serial number 5.000).
13 Device output Connection for the breathing tube, through which the patient is supplied with respiratory air.
