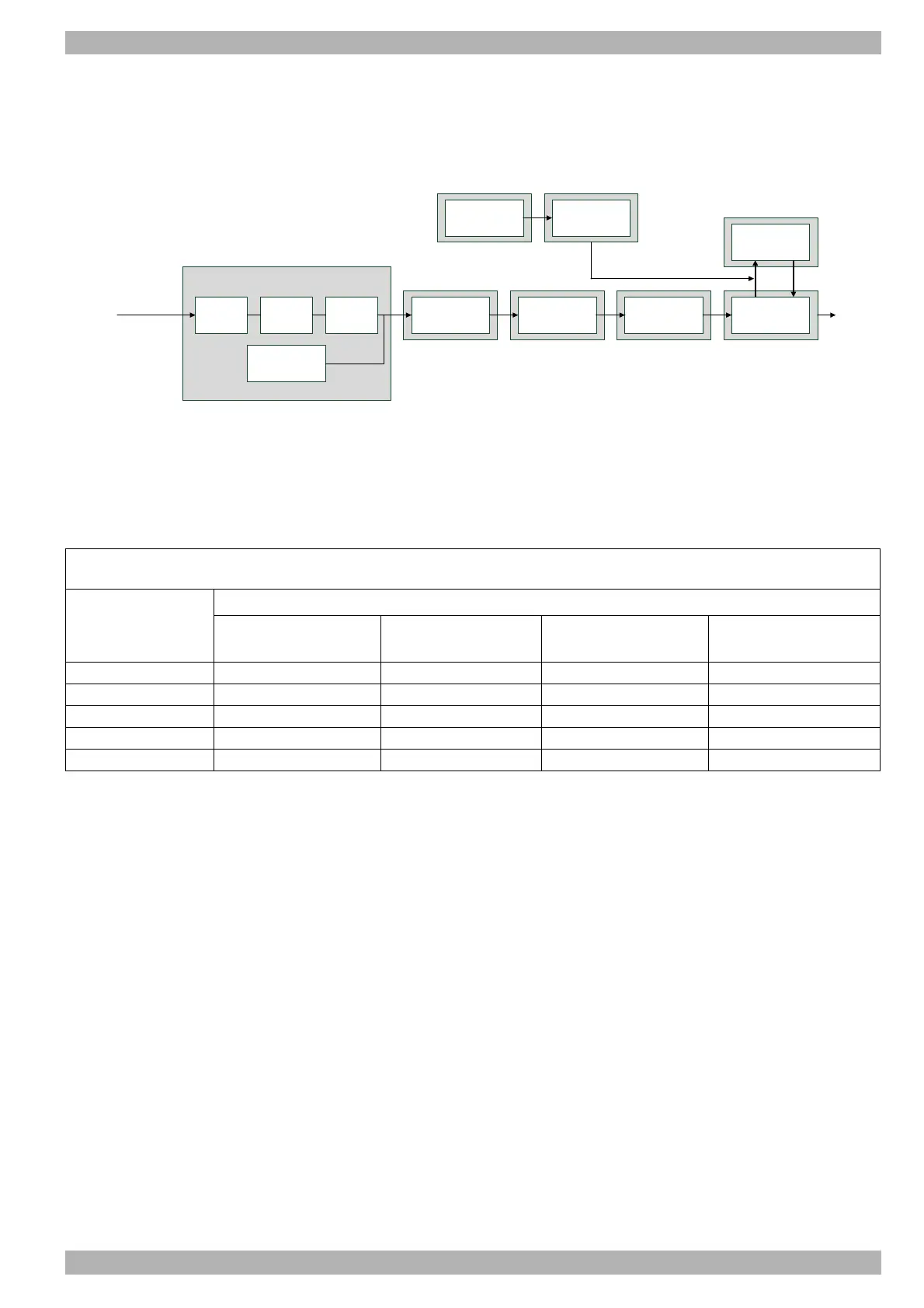

12.5 Pneumatic system diagram
12.5 Pneumatic system diagram
12.6 Separation distances
Air filter
Inlet for
ambient air
Fan
Optional
humidifier
Pressure sensor
for patient
pressure
Optional O
2
safety valve
Optional
bacteria filter
Respiratory
hose,
1.8m
Exhalation
system
Patient mask
Nasal or
full face mask
O
2
pressure
source
Flow regulator
Recommended separation distances between portable and mobile RF telecommunication devices (e.g., cell phones)
and the therapy device.
Rated maximum
output power of
the RF device in W
Separation distance according to frequency of transmitter in m
150 kHz-80 MHz
outside the ISM bands
150kHz-80MHz in
the ISM bands
80 MHz-800 MHz 800 MHz-2.5 GHz
0.01 0.04 0.12 0.12 0.23
0.1 0.11 0.38 0.38 0.73
1 0.35 1.20 1.20 2.30
10 1.10 3.80 3.80 7.27
100 3.50 12.00 12.00 23.00
