7.5 Replacing the display
7.5 Replacing the display
7.5.1 Removing the display
1. Open the therapy device (see "7.2 Opening the therapy device",
page41).
2. Remove the mainboard (see "7.4.1 Removing the mainboard",
page44).

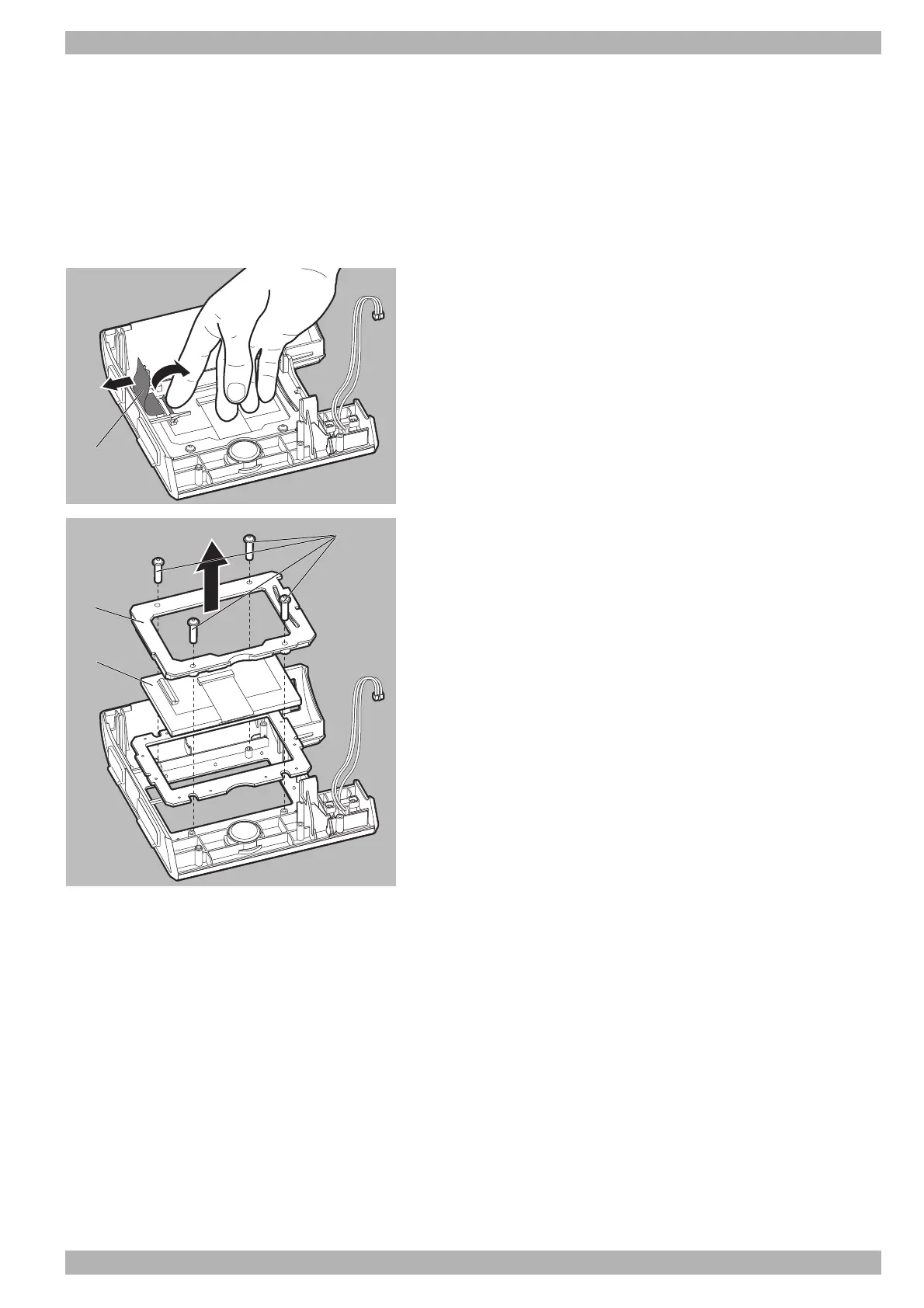

3. Undo the lock on the ribbon cable for the display 8.
Note: The brown clip must be clicked upwards.
4. Unscrew the 4 screws 25.
5. Remove the display frame 21.
6. Remove the display 20.
7. Check the state of the display seal. Replace if necessary.
