7.6 Replacing the fan
7.6 Replacing the fan
7.6.1 Removing the fan

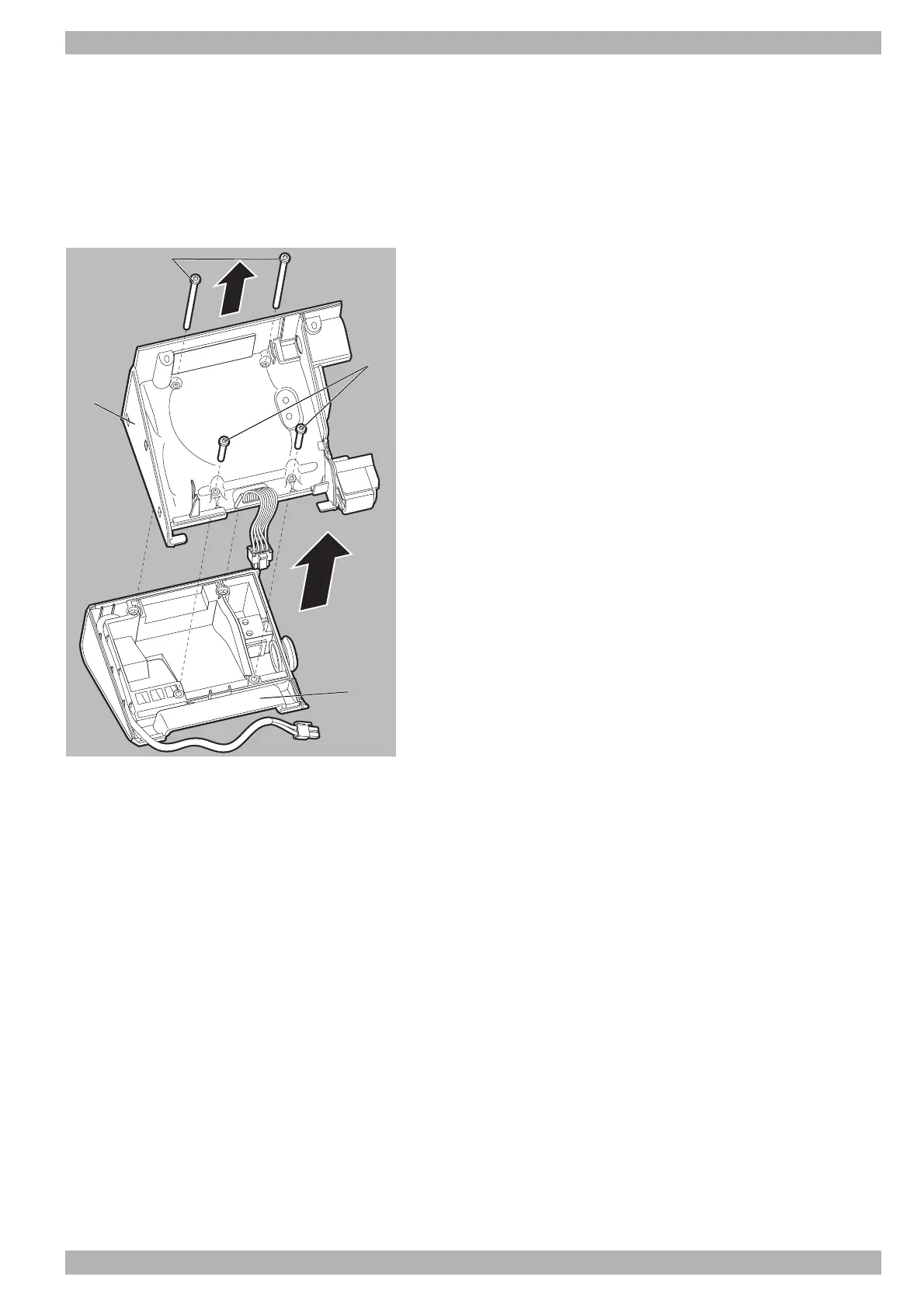

1. Open the therapy device (see "7.2 Opening the therapy device",
page41).
2. Place the therapy device on its back on a table.
3. Undo and remove 2 screws 23.
4. Undo and remove 2 screws 24.
5. Lift the central part of the housing 2 off the back of the housing 1.
1
2
24
23
Back
Forward
