8 EN WM 100 TD and WM 100 TH
WM 67971b 09/2017
2 Product description
2.2.2 Display in patient sector
(Start screen in Therapy mode)

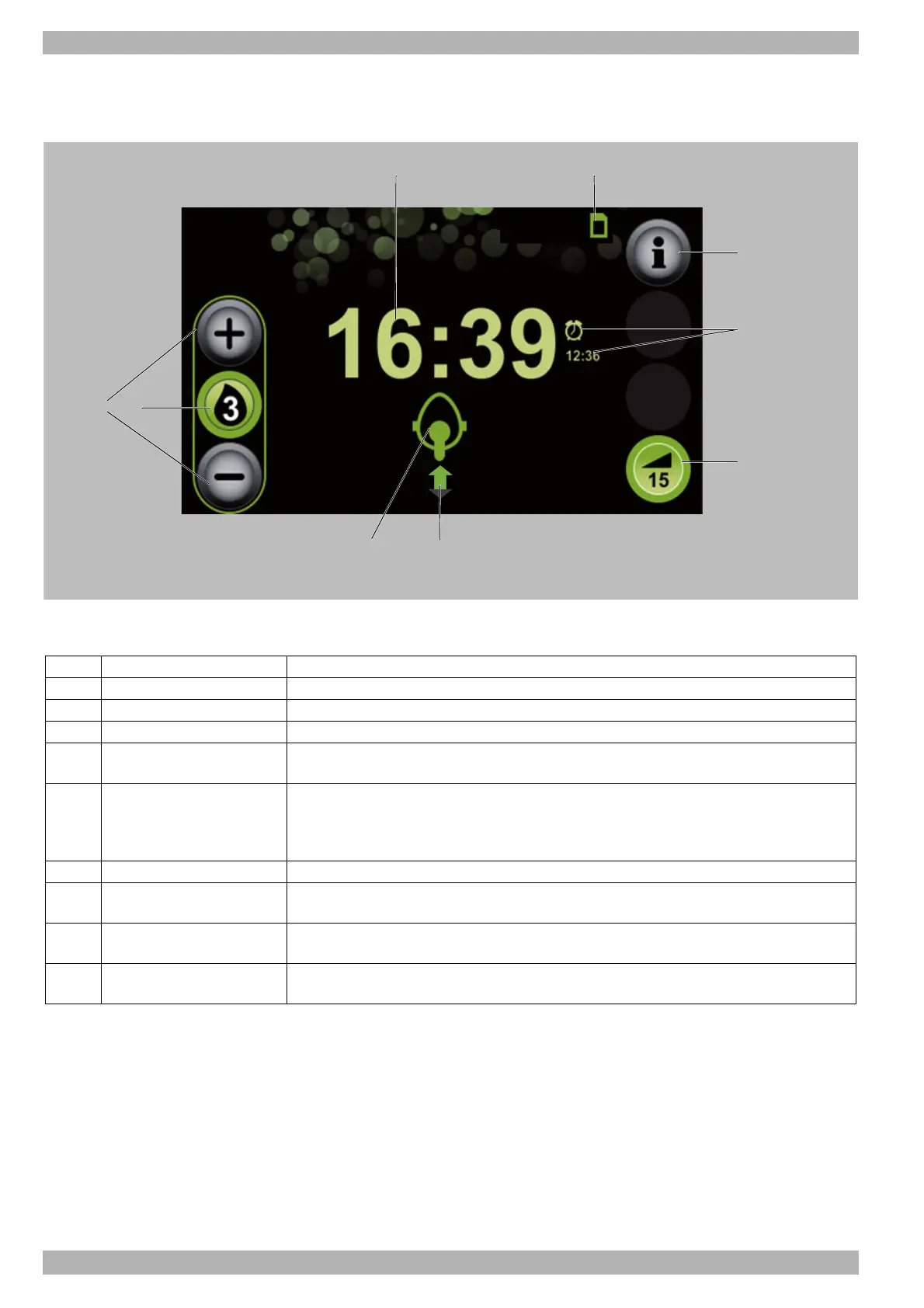

2-3 Start screen in Therapy mode
No. Designation Description
1 Clock Displays the current time.
2 SD card symbol The SD card is in the therapy device.
3 Info button Provides access to the info screen with detailed information on the therapy currently in progress.
4 Alarm clock with wake-up time
Alarm clock is set.
Displays the set wake-up time.
5 softSTART button
Switches the softSTART function on or off.
Displays the time remaining.
If the softSTART is off, the set softSTART period is displayed.
If there is no softSTART button, the physician or authorized dealer has disabled this function.
6 Respiration status symbol Indicates the current respiration status.
7
Mask status symbol with leak
indicator
Indicates how well the respiratory mask is positioned.
8
Humidifier button for respiratory
air humidifier prismaAQUA
Indicates that the respiratory air humidifier is connected and switched on.
Shows the set humidifier level of the respiratory air humidifier.
9
Function buttons for the
respiratory air humidifier
Allow the humidifier level to be increased/decreased.
