3 -4
10

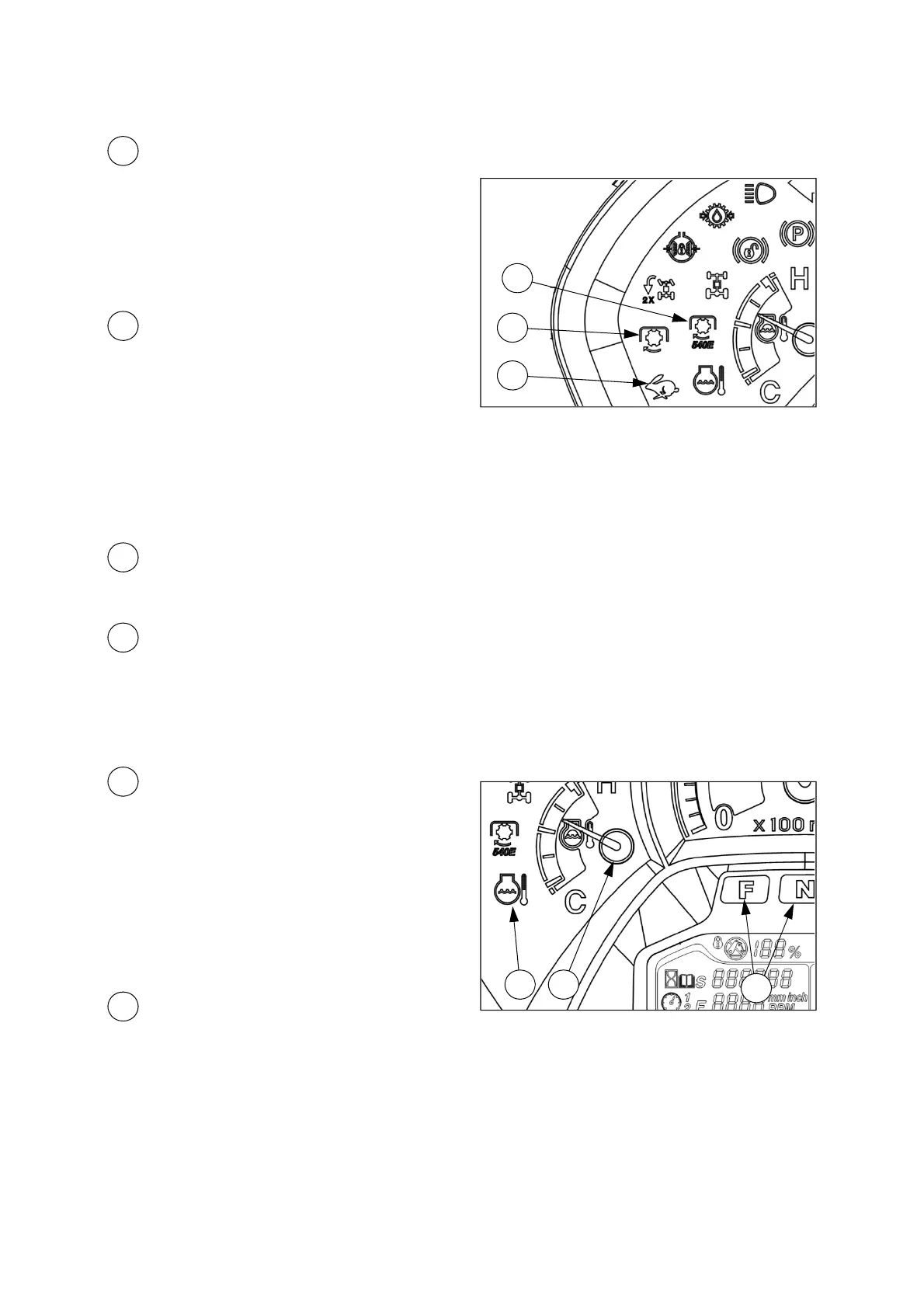

540E PTO operation indicator (optional)
11
PTO operation indicator
When the key switch is “ON” and PTO mode
switch is “MANUAL” and PTO switch is “ON”,
this indicator shall be ON.
If the PTO mode switch is “AUTO”, rear PTO
and this indicator shall be OFF to protect the
PTO drive shaft when clutch pedal is depressed
or the implement is lifted up over the specified
limit. (For further information, See page 3-24)
12
High speed indicator (Not used)
This indicator is not used in this model.
13
Coolant over-heat warning indicator
14
Engine coolant temperature gauge
This gauge indicates the temperature of coolant
during operation.
The closer the needle approaches “H”, the
higher the temperature of engine coolant is.
The coolant is very hot. When checking the
coolant, comply with instructions of the chapter 5
“Maintenance and Lubrication” in this manual.
These indicators shall be ON/OFF when
operating power shuttle lever to FORWARD /
NEUTRAL / REVERSE in power shuttle
transmission.
15
Forward/Neutral/Reverse indicator(optional)
10
11
1413
15
When PTO gear lever is 750/540E rpm, and
PTO switch and 540E PTO switch is “ON”, this
indicator shall be ON, and the engine maximum
speed shall be restricted in this mode.
12
If the engine coolant temperature goes over the critical level, this indicator shall be on. Stop the
engine and cool down the engine.
If not cleared, contact your authorized local dealer for check.
