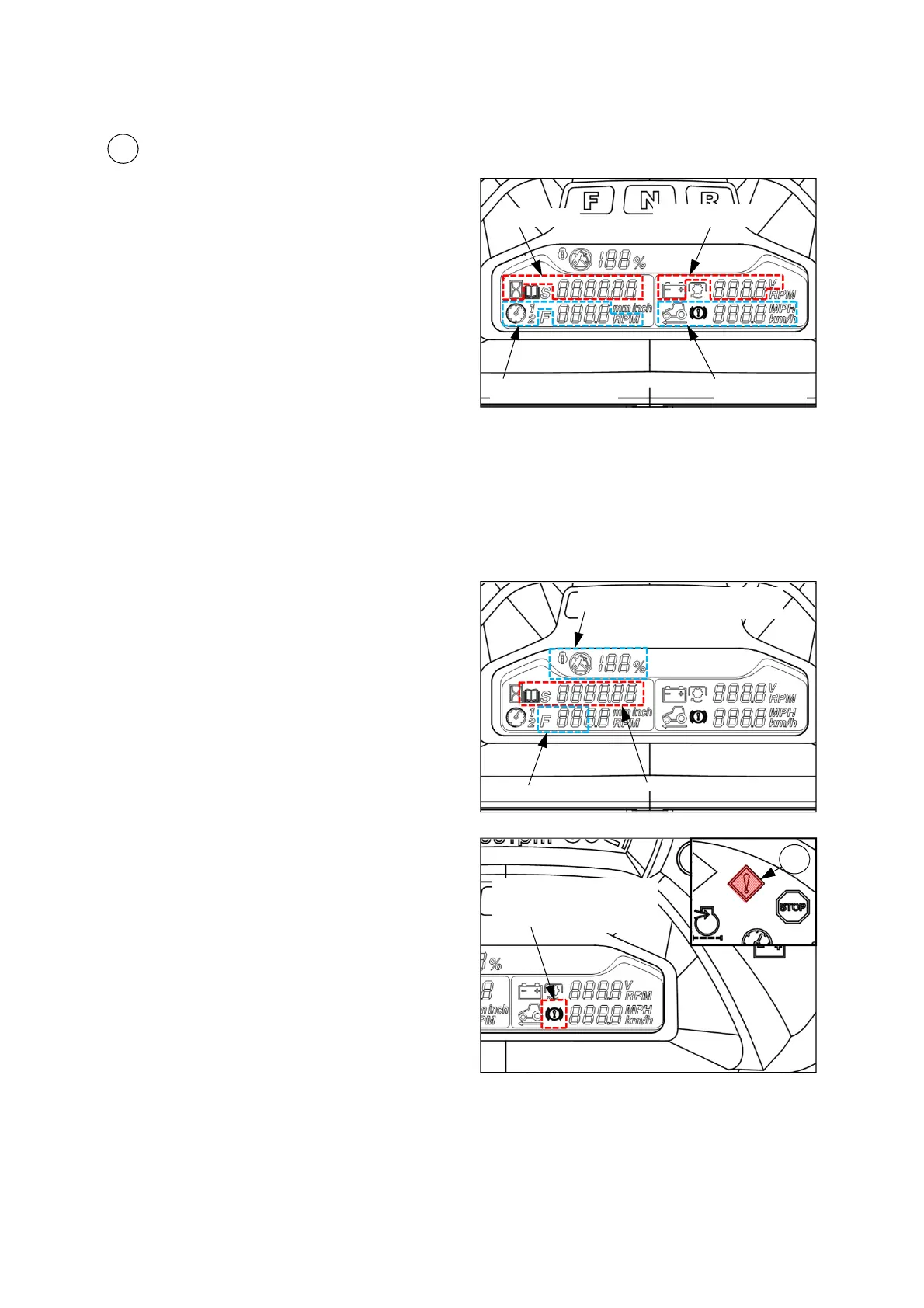

LCD display panel
Battery voltage
Hour meter
ESC mode display Speedometer
Error Diagnostic Code
FMI Code
EHL mode display (optional)
ⓒ Engine Speed Cruise control(ESC) and FMI
code
The RPM stored on ECU for Engine Speed
Cruise control(ESC) is displayed in normal
status.
If any errors related to the Tier-4 engine control
happened, FMI code to be able to know the
error type or pattern shall be displayed by turns
additionally with engine diagnosis error codes
(9).
ⓑ Battery voltage
Current available battery voltage is displayed.
If any error does not exist on tier-4 engine
control, in normal operation condition,
accumulated operation hour shall be displayed
If the display shows “0019.1”, it means the
tractor has been operated for 19.1hours so for
(19 hours and 6 minutes).
If any errors related to the Tier-4 engine control
happened, Engine diagnosis error codes and
hour meter shall be displayed by turns with
vehicle control error warning light (28).
At this time, after escaping from emergency area,
contact your authorized local dealer for check.
ⓐ Hour meter & Engine diagnosis error code
ⓓ EHL mode display (optional)
For only Electro-Hydraulic Lift (EHL) models, this
display shows the current lifting position per
maximum upper limit in percent ratio.
ⓔ Trailer brake pressure warning indicator
If the trailer brake air pressure is lower than the
designate level, this display shall be turned on
with red vehicle control error warning indicator
(28).
ⓕ Tire rolling circumference and Vehicle speed
The rolling circumference of rear tire and vehicle speed is displayed in mm/inch and km/h/mph.
Trailer brake pressure
warning indicator
28
