⑦ Auto lift mode switch
 This is used to select the auto lift mode.
1. When the engine starts at first, the auto lift mode
is “OFF”. If you press the auto lift mode switch
repeatedly, the mode shall be changed with the
LED light as below.
OFF -> Turn Up -> Back Up -> Turn up and
Back Up.
2. Turn-up : If you turn the steering wheel more
than half of maximum angle, the implement shall
be lifted up automatically to the upper limit.
If you turn the steering wheel to the neutral via
the angle, and press the lower side of one-touch
up/down switch, the implement will be lowered
down to the original position.
3. Back-up : If you move the shuttle lever backward
(Reverse), the implement shall be lifted up
automatically to the upper limit. And if you move
the shuttle lever forward or to neutral, and press
the lower side of one-touch up/down switch, the
implement will be lowered down to the original
position.
4. Turn-up and Back-up : Turn-up and Back-up
functions are available.

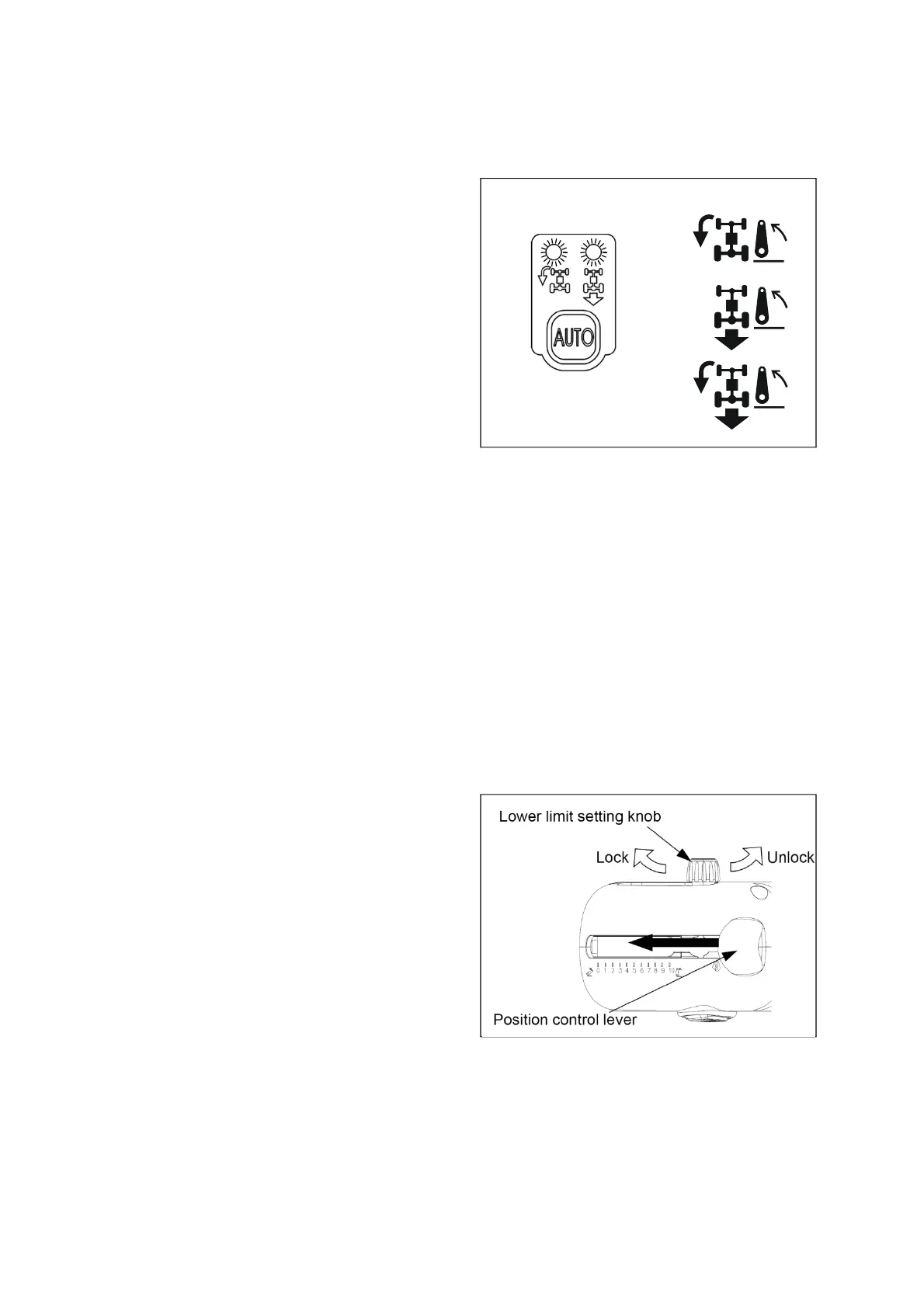

Control unit
Instrument panel
Turn-up
Back-up
Turn-up/
Back-up
⑧ Lower limit setting knob
 This is used to set the lower limit of position
control lever.
1. Turn the setting knob to the left to loosen the lock
and set the position control lever to desired
position and then turn the knob to the right to
lock.
2. Even if the position control lever lower limit is set,
if you lift up the position control lever and push it
forward, the lever can be moved under the lower
limit position.
Lower limit setting knob
Position control lever
Lock Unlock
