3.2.1 Operation Keys

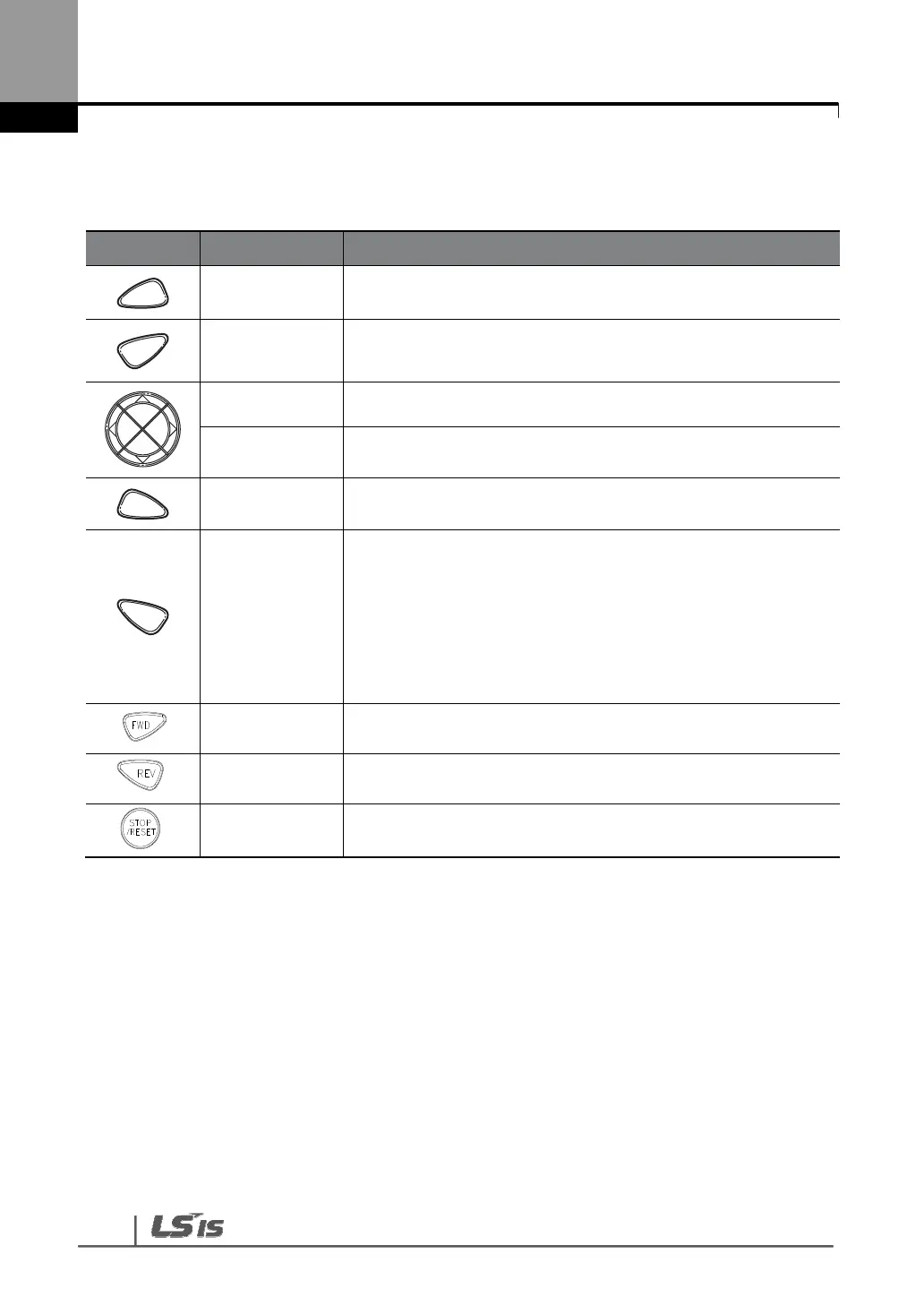

The following table lists the names and functions of the keypad’s operation keys.
Key Name Description
[MODE] Key Used to switch between modes.
[PROG / Ent]
Key
Used to select, confirm, or save a parameter value.
[Up] key
[Down] key
Switch between codes or increase or decrease parameter
values.
[Left] key
[Right] key
Switch between groups or move the cursor during parameter
setup or modification.
[MULTI] Key
Used to perform special functions, such as user code
registration.
[ESC] Key
Used to cancel an input during parameter setup.
Pressing the [ESC] key before pressing the [PROG / ENT] key
reverts the parameter value to the previously set value.
Pressing the [ESC] key while editing the codes in any function
group makes the keypad display the first code of the function
group.
Pressing the [ESC] key while moving through the modes
makes the keypad display Monitor mode.
[FWD] Key Motor rotates in forward direction.
[REV] Key Motor rotates in reverse direction.
[STOP/RESET]
Key
Stop operating.
Trip release after a trip occurs.
