Chapter 4 System Configuration
4-4
4.1.5 Public Network and Dedicated Network system composed of LSIS’ and
other company’s PLCs

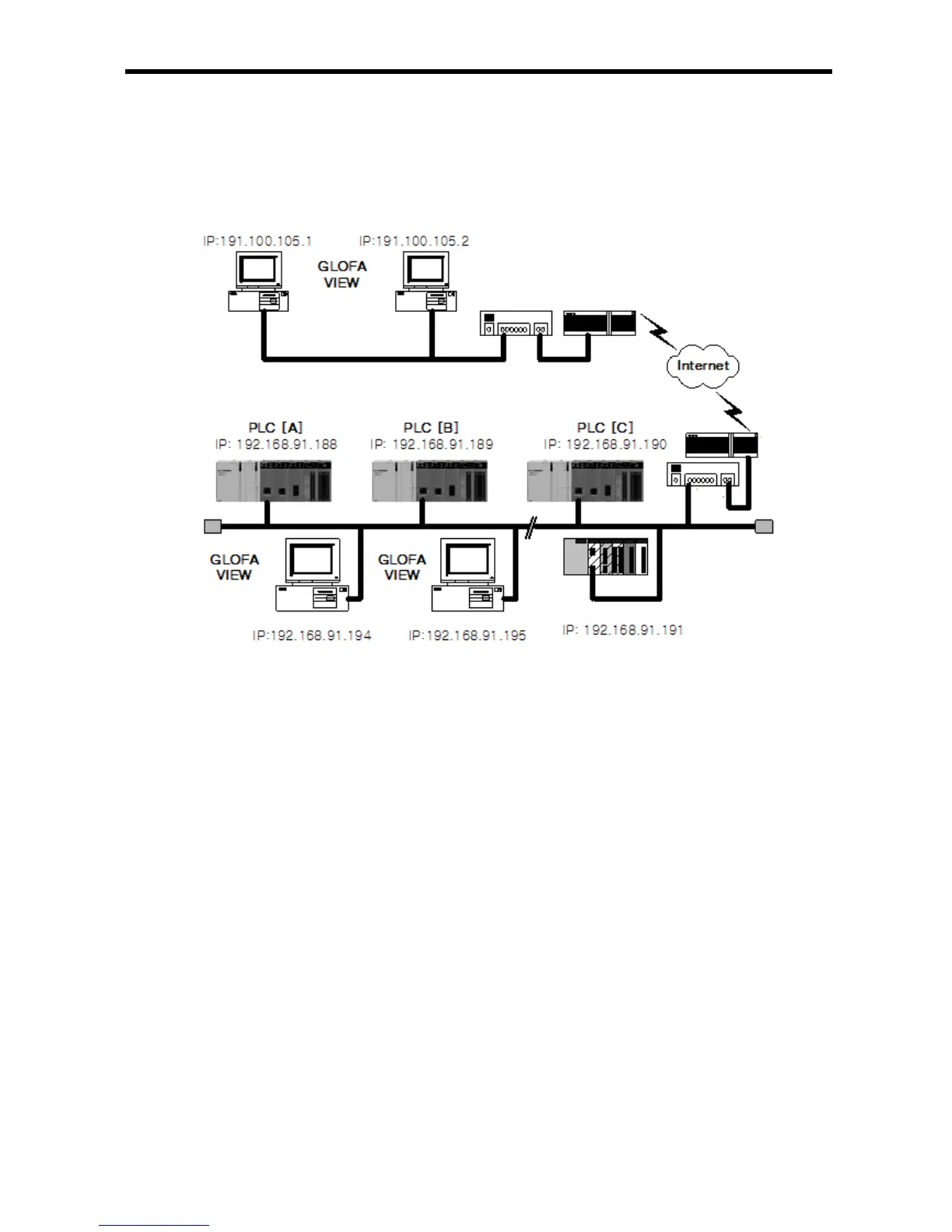

[Fig.4.1.5] Ethernet System (Public Network + Dedicated Network + Other Company’s System)
Broadband monitoring system[1]
Broadband monitoring system[2]
Hub
Router or
Gateway
Public
network
Router or
Gateway
Hub
Local monitoring system[2]
Local monitoring system[1]
Ethernet network
(Network[1])
Other company’s PLC[D]
