Chapter 5 XG5000 Program
5-33
(4) Ping Test

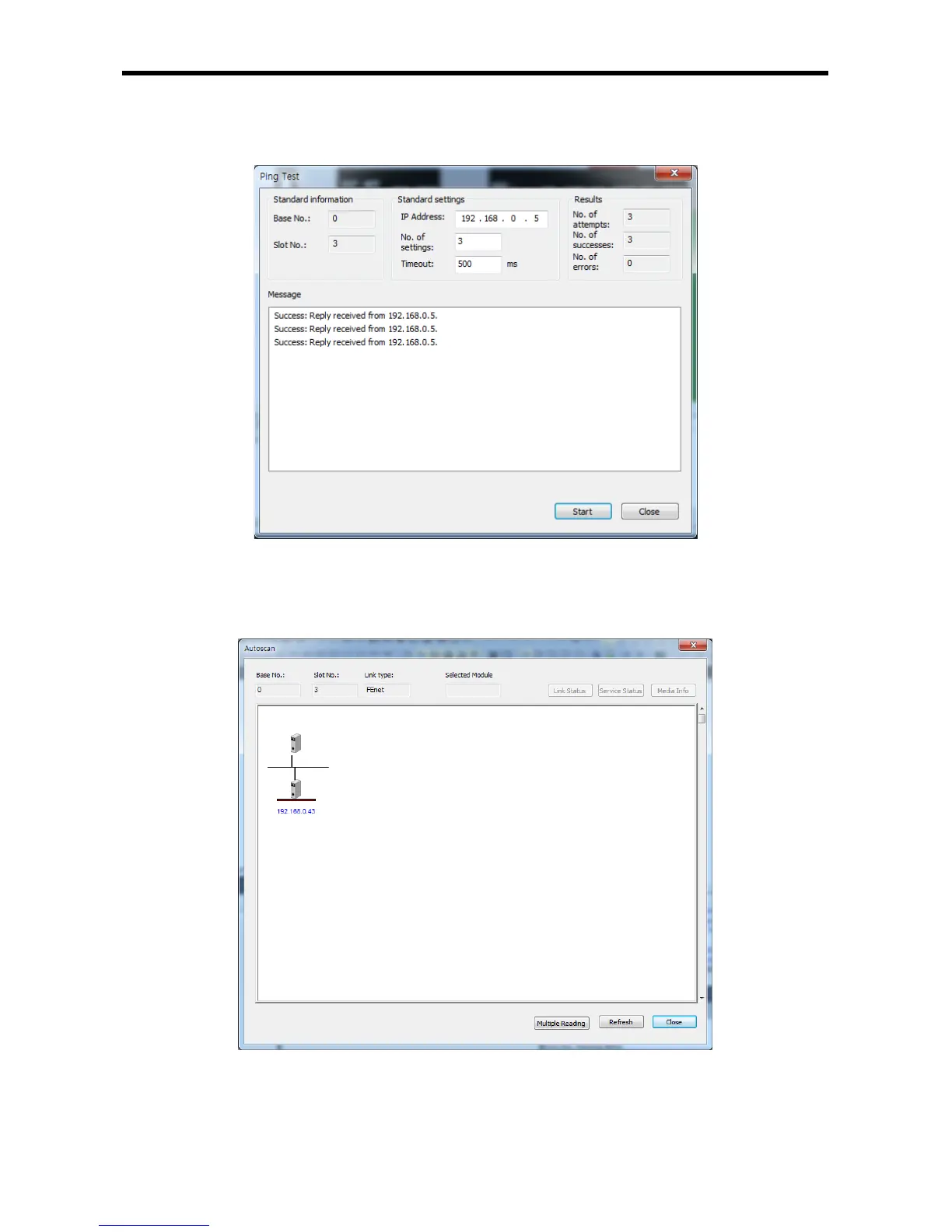

[Fig 5.6.9] Ping Test monitor for the destination station number
(5) Auto scan
Display the link interface status of the whole network. The service status of FEnet I/F
module connected with the public network is displayed as simple as shown in the diagram.
[Fig. 5.6.10] Network Auto scan
