Figure 1.5 C32 Lidar Base
Note: Excessive temperatures have an impact on the life of the lidar. Please
ensure that the lidar is at the correct operating temperature. If the operating
temperature exceeds 38°C or if the lidar is exposed to the sun for a long period
of time, it is important to use it with a heat sink. You can contact us for cooling
solutions.

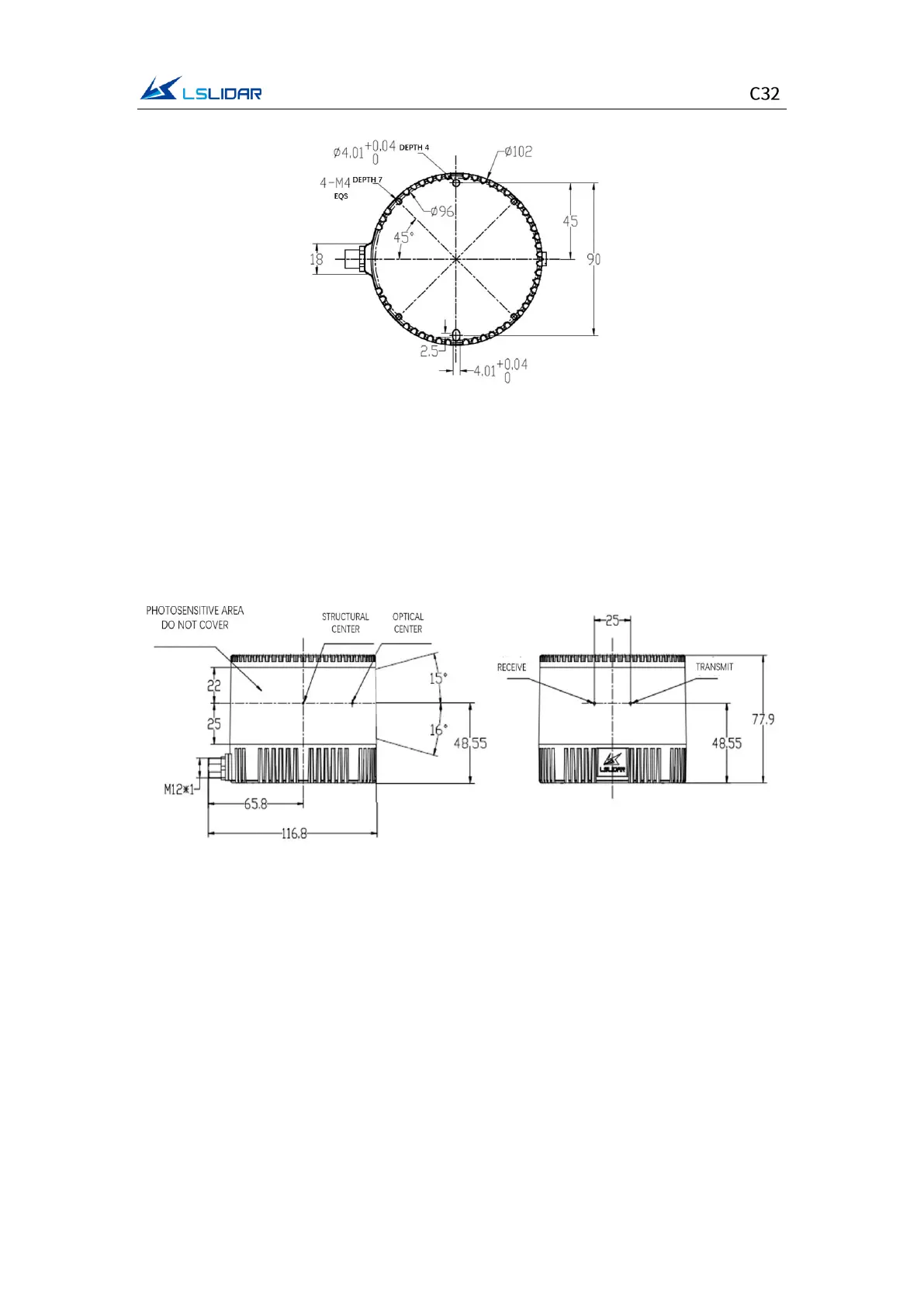

Figure 1.6 C32 Mechanical Drawing (unit: mm)
1.5 Light Spot
The light spot of C32 lidar is a vertical oval. Its vertical divergence angle is 8.7
mrad, and the horizontal divergence angle is 5.7 mrad. The spot size at any
distance can be calculated by multiplying the divergence angle by the distance.
For example, the calculation of a spot at 10 m is as follows：
Vertical direction at 10 m: 10*8.7*10
-3
=87 mm
Horizontal direction at 10 m: 10*5.7*10
-3
=57 mm
