35
2.

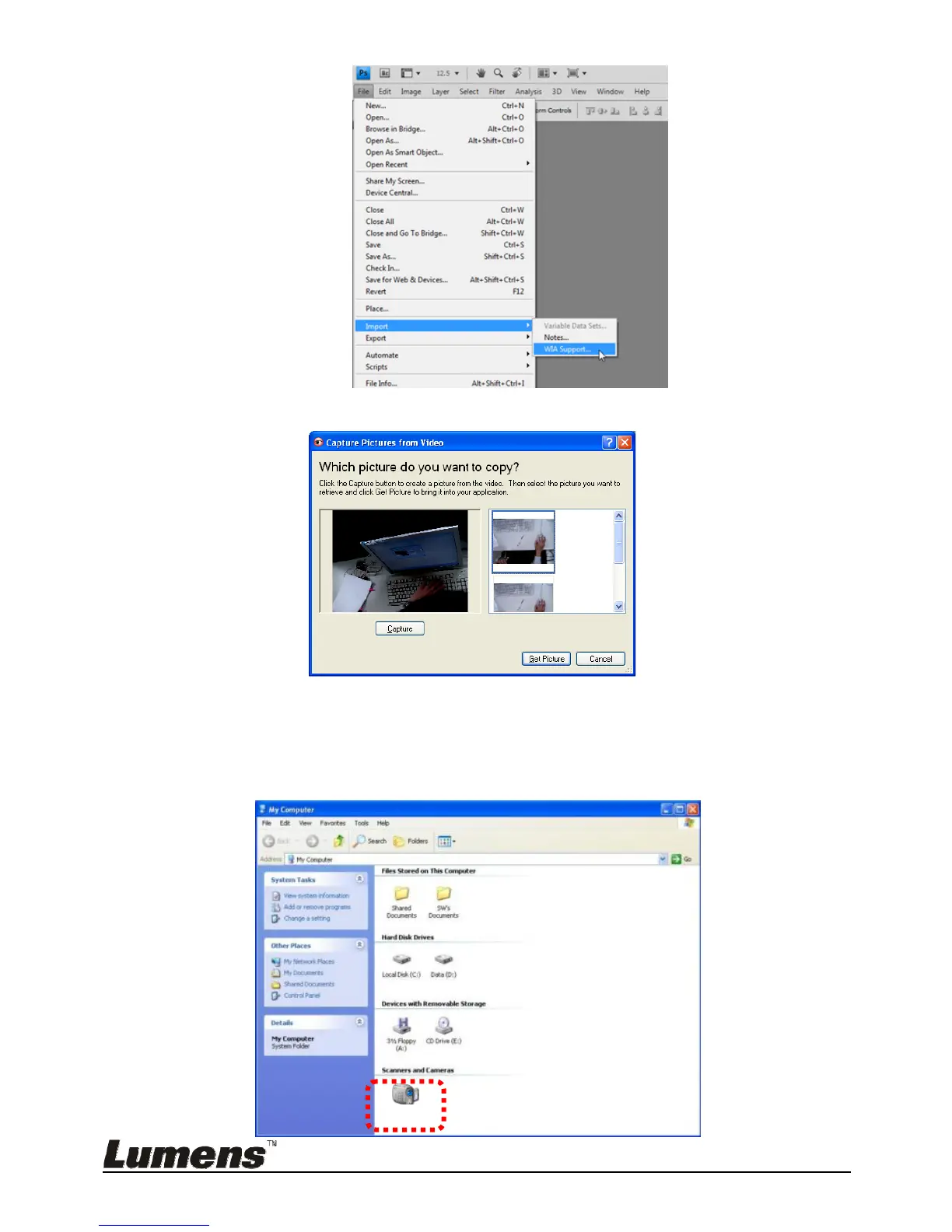

Complete by clicking [Capture
], then clicking [Get Picture].
7.24.3
I would like to set the DC170 as a PC Camera
<Remark> Fo
r Windows XP
, please set b
y system name (USB
v
id
eo device)
Open [My Computer] and click [Lumens Do
c
ument Camera] to open a live i
mage.
Lumens
Document
35
37
Table of Contents
Default Chapter
1
Document Camera
1
Table of Contents
2
Copyright Information
4
Chapter 1 Safety Instructions
5
Precautions
6
FCC Warning
6
EN55022 (CE Radiation) Warning
6
Chapter 2 Package Contents
7
Chapter 3 Product Overview
8
Relative Position of the Presenter and Document
9
Chapter 4 Installation and Connections
10
System Diagram
10
Installation and Setup
11
Connecting to a Projector or Monitor
11
Connecting to a Computer and Use Lumens™ Software
12
Connecting to a Computer and Projector or Monitor Simultaneously
12
Connect to a PC and Read the SD Card
13
Connecting to an Interactive Whiteboard (IWB)
13
Connecting to an HDTV
14
Connecting to a Speaker
14
Connecting to a Computer with RS232
15
Connecting to a TV
15
Installing Application Software
16
Chapter 5 Start Using
17
Chapter 6 Control Panel/Remote Control and Setting Menu
18
Functions of Control Panel and Remote Control
18
Setting Menu
20
Set up Menu
21
Setting Select
24
Chapter 7 Descriptions of Major Functions
25
I Would Like to Automatically Adjust the Image to Have the Best Brightness and Focusing Performance
25
I Would Like to Switch Image Sources
25
I Would Like to Switch the Image Mode
25
I Would Like to Make Text Clearer and Photos more Colorful
25
I Would Like to Zoom In/Out Images
26
I Would Like to Use the Auto Focus
26
I Would Like to Adjust the Brightness
26
I Would Like to Turn On/Off the Lamp
26
I Would Like to Freeze Images
27
I Would Like to Rotate the Image
27
I Want to Capture Images
27
I Would Like to Record Videos
28
I Would Like to View Captured/Recorded Images
29
I Would Like to Delete the Captured/Recorded Images
30
I Would Like to Automatically Delete the Stored Images Whenever It Is Turned off (Auto Erase)
30
I Would Like to Enlarge a Part of the Image (PAN)
30
I Would Like to Use the MASK and Spotlight Function
31
I Would Like to Play the Slides (Slide Show)
32
I Would Like to Compare Images (Compare Live Images with Stored Images (PIP))
32
I Would Like to Reduce the Image Noise (Projector Type)
33
I Would Like to Resume the Factory Default Settings (Factory Reset)
33
I Would Like to Change the Splash Screen
34
I Would Like to Use a SD Card
35
Computer-Related Functions
35
Chapter 8 Connecting to Microscope
37
Chapter 9 DIP Switch Settings
38
Connecting to a Projector or Monitor
38
Connecting to a TV
39
Chapter 10 Troubleshooting
40
