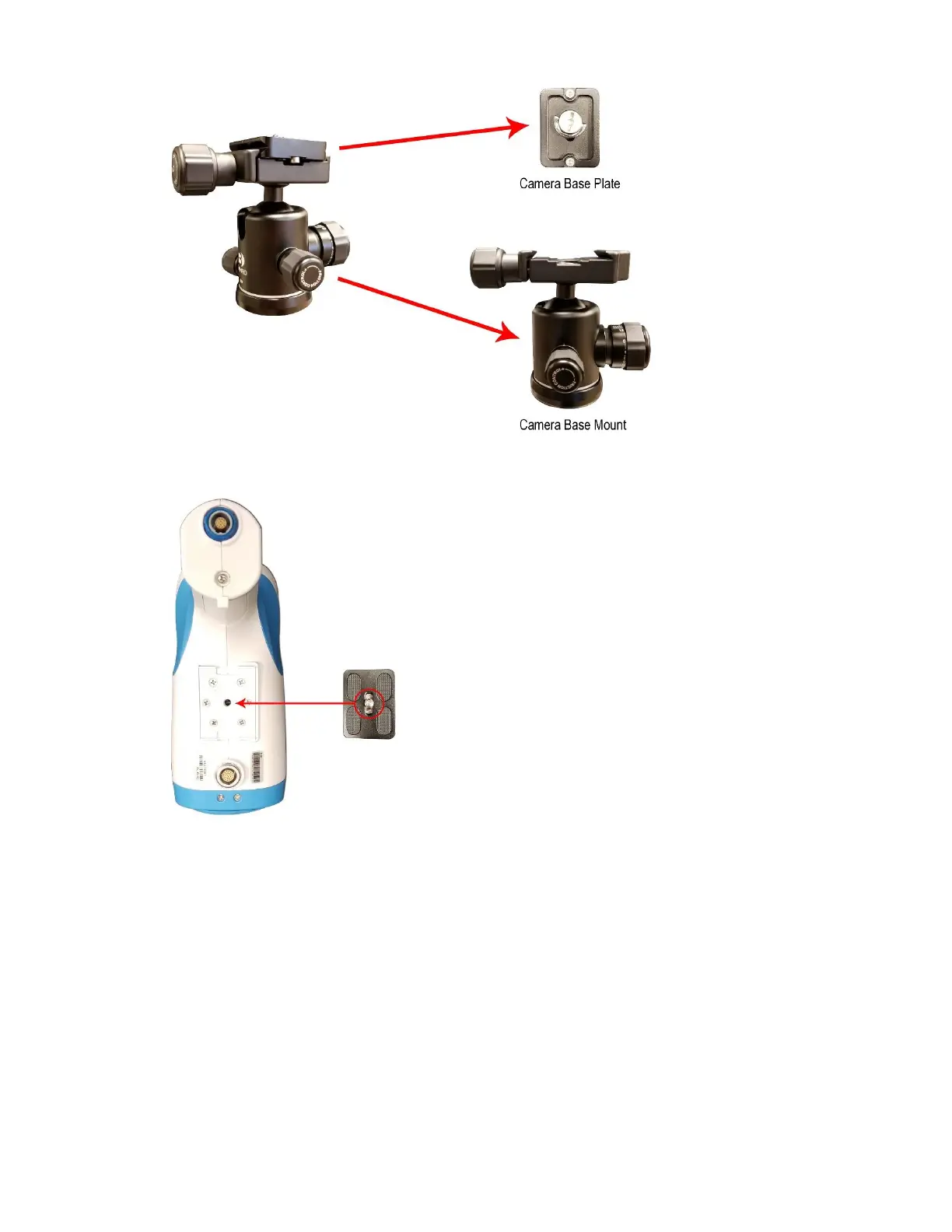

Diagram 2.5-7
7. Align the screw on the camera base plate to the hole on the bottom of the camera head.
Diagram 2.5-8
8. Turn the camera base plate over and pull out the ring on the other side. Place the camera base plate screw
over the hole under the colposcope camera. Turn the ring clockwise to attach the camera base plate onto
the bottom of the camera. Press the ring back when done to tuck it out of the way.
