Page 21 of 60

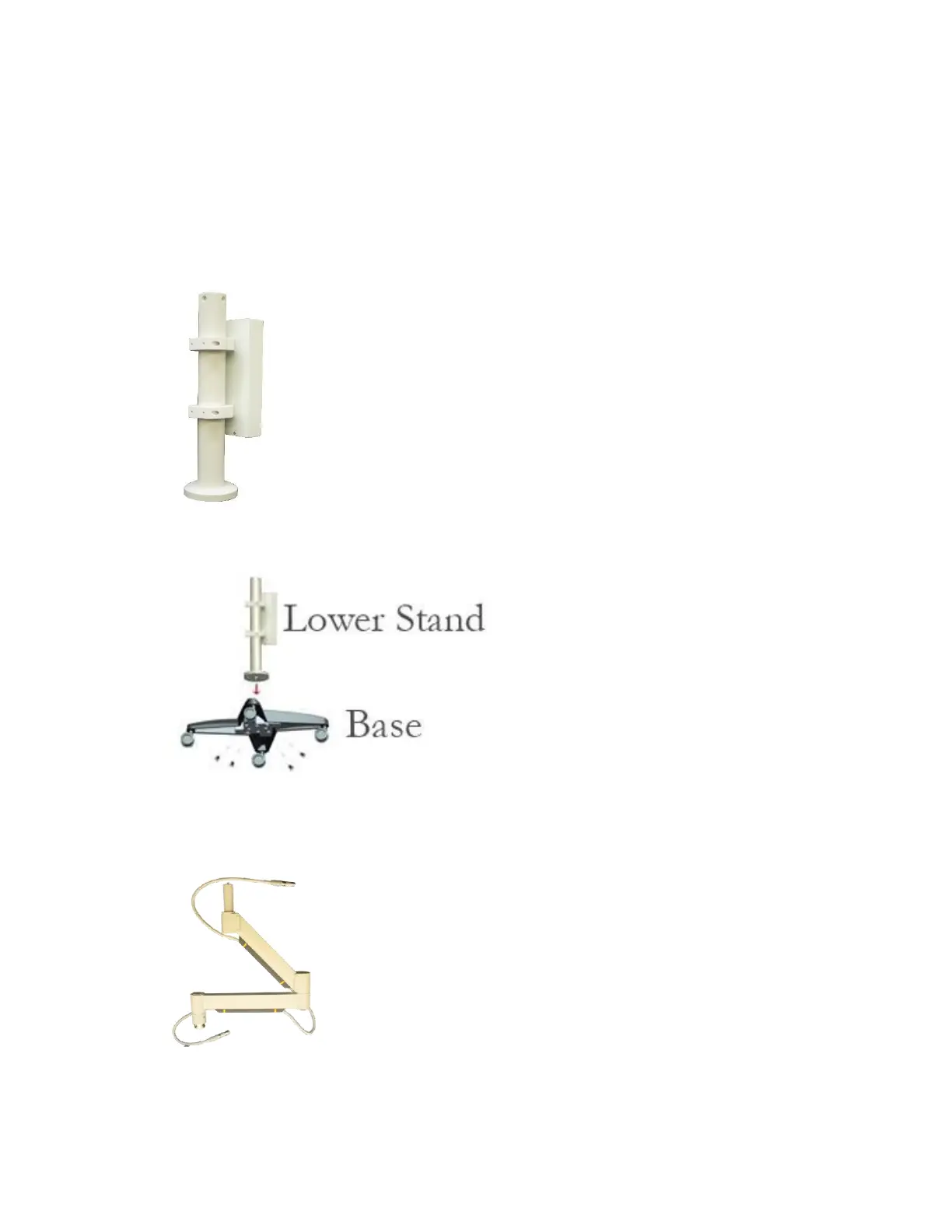

2.5 Colposcope with Swing Arm Stand Assembly
To assemble the colposcope on the swing arm stand, follow the steps below.
1. Take out the vertical tube and inspect it. The vertical tube should have the power box attached on the lower
portion of the tube. If the power box was not attached, please see section 2.6 Troubleshooting.
Diagram 2.5-1
2. Attach the Lower Stand to the Base using 4 x M8*25 screws.
Diagram 2.5-2
3. Take out the swing arm and inspect it. The swing arm should have the main cable pre-threaded inside the
cable enclosures. If the main cable is not already threated through or if the cable enclosures have come
loose, please see section 2.6 Troubleshooting.
Diagram 2.5-3
4. Attach the Swing Arm to the Lower Stand using the 4 cylindrical screws.
