9.3.1 VoIP VLAN Confi g
On this page you can confi gure the global parameters of the Voice VLAN including;
VLAN ID, Aging Time and the Transmission Priority of the Voice packets.
Choose the menu QoS>>Voice VLAN>>Global Confi g to load the following page.

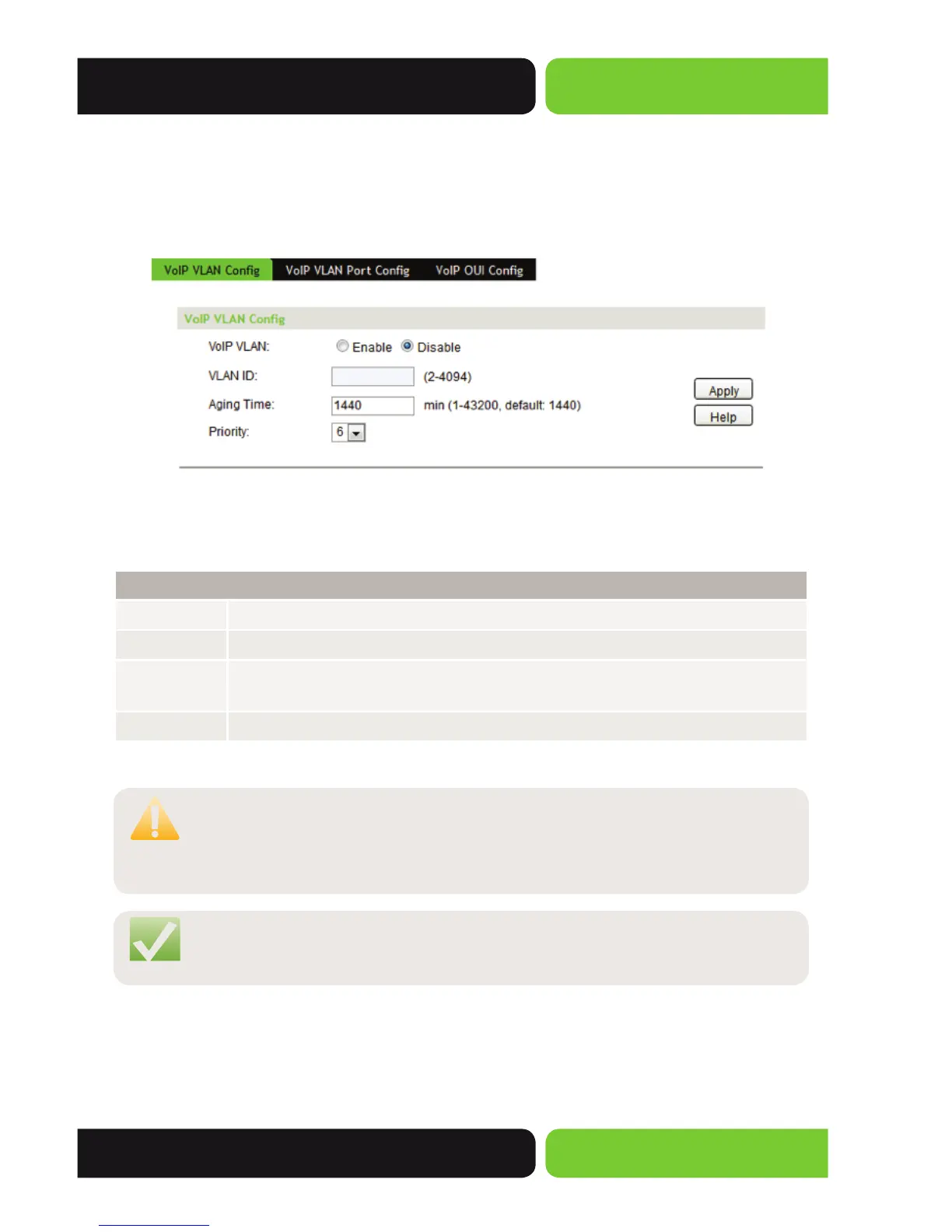

Figure 9-12 VoIP VLAN Confi g
The following entries are displayed on this screen:
Global Confi g
Voice VLAN:
Enable/Disable Voice VLAN function.
VLAN ID:
Enter the VLAN ID of the Voice VLAN.
Aging Time:
Specifi es the timeout of the member Port in Auto Mode after the OUI
ages out.
Priority:
Select the priority of the Port when sending Voice Data.
CAUTION: VoIP VLAN Confi g settings will be restored to defaults if the
Switch is restarted and you have not selected Save Confi g
from the main menu and saved your running confi guration to
non-volatile memory.
NOTE: Before the Voice VLAN function is enabled the parameters of the
Ports in the Voice VLAN should be confi gured.
9.3.2 VoIP VLAN Port Confi g
Before the Voice VLAN function is enabled the parameters of the Ports in the Voice
VLAN should be confi gured on the following page.
